| Brand Name: | Keysight |
| Model Number: | E5061B |
| MOQ: | 1 set |
| Price: | Negotiable |
| Delivery Time: | 1~3 Working Days |
| Payment Terms: | T/T，Western Union |

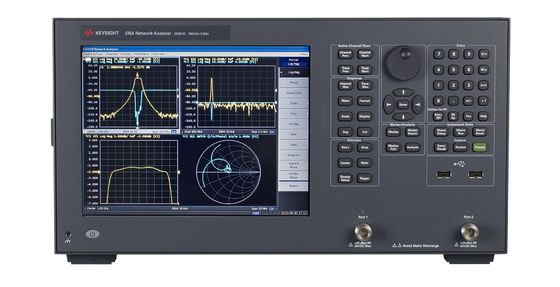

The Keysight E5061B addresses a broad range of measurement needs of electronic components and circuits from low to high frequencies. The E5061B is the ideal solution for applications in industries such as wireless communications, aerospace and defense, computer, medical, automotive, CATV, plus many more.
Key Features of Keysight E5061B Network Analyzer
Key Specifications of Keysight E5061B Network Analyzer
| E5061B-3L5 Key Specifications 1 | |
| Test frequency range | 5 Hz to 3 GHz (1 mHz resolution) |
| Frequency stability | 20 ppm (standard), 1 ppm (Option 1E5) |
| Test ports | S-parameter test port (5 Hz to 3 GHz, 50Ω, type-N) Gain-phase test port (5 Hz to 30 MHz, input-Z: 1 MΩ//30 pF and 50 Ω switchable, BNC) |
| Source power level | -45 to +10 dBm (power sweep range: 55 dB) |
| Dynamic range at S-parameter port (IFBW=10 Hz 2) | 120 dB (at 1MHz to 3 GHz), 115 dB (at 100 k to 1 MHz), 110 dB (at 9 k to 100 kHz), 100 dB (at 100 Hz to 9 kHz), 90 dB (at 5 Hz to 100 Hz) 130 dB (at 1 MHz to 3 GHz, S.P.D3) |
| Trace noise (at IFBW=3 kHz) | 5 mdBrms |
| Measurement parameter | S11, S21, S12, S22, T/R, absolute values |
| DC bias source | 0 to ±40 Vdc, resolution: 1 mV (at 0 to ±10 Vdc) or 4 mV (at ±10 to 40 Vdc) |
| DC monitor | Monitors external DC voltage at port R or T. Monitors internal DC bias output level at port-1 or LF OUT port. |
| Sweep capabilities | Liner/log frequency sweep, segment sweep, power sweep, DC bias sweep |
| Number of channels / traces | 4-ch/4-trace |
| Number of points | 1601 points |
| IFBW | 1 Hz to 300 kHz, manual and auto modes |
| Calibration capabilities | Response, 1-port full , 2-port full, Enhanced Response, Adapter Removal, Auto port extension,ECal 4 |
| Time domain/Fault location | Available with the option E5061B-010. Includes time gating and SRL analysis capabilities. |
| Other analysis capabilities | Impedance conversion (reflection, transmission, trans-shunt) Limit test functions |
| Post data processing | Equation editor, VBA |
| Operating system | Windows open OS |
Options of Keysight E5061B Network Analyzer
| Option | Description |
| E5061B-3L5 1 | LF-RF network analyzer with DC bias source, 5 Hz to 3 GHz |
| E5061B-1E5 | High stability timebase |
| E5061B-010 | Time domain/Fault location analysis |
| E5061B-019 2 | Standard hard disk drive |
| E5061B-810 | Add keyboard |
| E5061B-820 | Add mouse |
| E5061B-1CM | Rack mount kit |
| E5061B-1CN | Front handle kit |
| E5061B-1CP | Rack mount and front handle kit |
| E5061B-1A7 | ISO 17025 compliant calibration |
| E5061B-A6J | ANSI Z540 compliant calibration |
FAQ:
1. Can you ship the order to Canada or Australia?
Yes, we can. We send orders worldwide.
2. What delivery method do you use ? and delivery time?
We can ship by EMS, DHL, FedEx, UPS, and TNT with tracking numbers. The usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question?
You can contact us online or leave us messages below.
|
|
