| Frequency Resolution: | 10 Hz | Frequency Range: | 2 MHz To 6 GHz |
|---|---|---|---|
| Dynamic Range: | 80 DB, 2 MHz To 3 GHz 70 DB, >3 GHz To 5.5 GHz 65 DB, >5.5 GHz To 6 GHz | Cable Loss: | Range: 0 To 30 DB Resolution 0.01 DB |
| Return Loss: | Range: 0 To 60 DB Resolution 0.01 DB | Residual Directivity: | 42 DB (2 MHz To 6 GHz) |

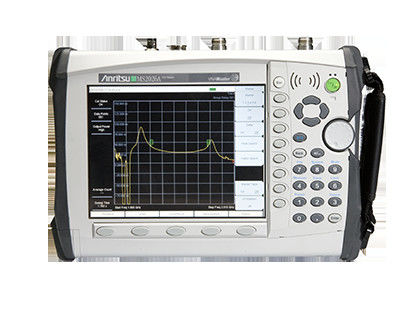

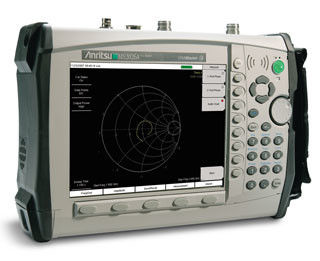

Anritsu MS2026A VNA Master - Vector Network Analyzer
The Anritsu MS2026A VNA Master is a state-of-the-art handheld Vector Network Analyzer, engineered for precision and efficiency in vector-corrected measurements. It is designed to perform accurate 1-port and 1-path 2-port magnitude and phase measurements, covering a broad frequency range from 2 MHz to 6 GHz. The MS2024A variant, which shares the same cutting-edge features, operates within a 2 MHz to 4 GHz range. Both models leverage advanced DSP (Digital Signal Processing) technology, which enables exceptionally fast and accurate Return Loss and Distance-To-Fault (DTF) measurements, critical for a wide array of applications.
The VNA Master's high and low power settings for 2-port measurements eliminate the need for external attenuators, streamlining the process of performing direct gain measurements. This feature, combined with Anritsu’s precision components, ensures that the device achieves superior performance, offering better than 42 dB of corrected directivity across the entire frequency spectrum. This level of accuracy makes the MS2026A an indispensable tool for professionals who require reliable data in demanding environments.
The VNA Master is equipped with substantial internal memory, capable of storing over 1,000 traces and setups, ensuring that users can save extensive amounts of data during fieldwork or testing. Transferring this information to a computer is straightforward, thanks to multiple connectivity options, including memory card, Ethernet, and USB. This flexibility enhances the device's usability in various scenarios, from on-site testing to detailed analysis back in the lab.
The MS2024A and MS2026A are particularly well-suited for applications across multiple markets. The wide frequency coverage down to 2 MHz is especially beneficial for military and defense sectors, as it eliminates the necessity for cumbersome benchtop VNAs in the field when performing S11 (return loss) and S21 (insertion loss) measurements. This portability and precision are also highly valued in the commercial wireless industry, where the VNA Master’s Frequency Domain Reflectometry (FDR)-based Return Loss and DTF measurements are essential for verifying system performance and pinpointing degradations and faults in cable and antenna systems.
Moreover, the VNA Master serves as an economical yet powerful solution for general-purpose VNA customers who require accurate S11 and S21 measurements. Its portability, combined with robust performance, makes it an ideal choice for engineers and technicians who need reliable results without the overhead of larger, more expensive equipment.
In summary, the Anritsu MS2026A VNA Master stands out as a versatile and powerful tool for a broad spectrum of applications. Its combination of advanced technology, user-friendly design, and comprehensive measurement capabilities makes it a vital instrument for professionals in both specialized and general-purpose markets. Whether in the field or the lab, the VNA Master delivers precision, efficiency, and ease of use, ensuring that it meets the rigorous demands of today's engineering and testing environments.
| Frequency | |
| Frequency Range: | 2 MHz to 6 GHz |
| Frequency Accuracy: | 25 ppm |
| Frequency Resolution | 10 Hz |
| Data Points: | Low, Medium, High (137/275/551) |
| Interference Immunity: | On-Channel +17dBm On-Frequency +10 dBm (RF Out), +30 dBc (RF In) |
| 1- Port Power: | High: 0 dBm (typical) |
| 2-Port Power: | High: 0 dBm (typical) Low: -35 dBm (typical) |
| Residual Directivity: | 42 dB (2 MHz to 6 GHz) |
| 1-Port Accuracy: | = <0. + |20 log(1 ±10–E∆/20)| dB, typical; E∆ = Directivity – Measured Return Loss |
Dynamic Range: |
80 dB, 2 MHz to 3 GHz 70 dB, >3 GHz to 5.5 GHz 65 dB, >5.5 GHz to 6 GHz |
Return Loss: |
Range: 0 to 60 dB Resolution 0.01 dB |
VSWR: |
Range: 1 to 65 dB Resolution 0.01 |
Cable Loss: |
Range: 0 to 30 dB Resolution 0.01 dB |
1-Port Phase: |
Range: –180º to +180º Resolution: 0.01º |
| General | |
| Maximum Continuous Input into Vector Network Analyzer: | Test Port, Type N: +22 dBm, RF Detector: +20DBm |
| Interfaces: | Type N female RF Out Port and RF In Port (50 Ω) 5-pin Mini-B USB 2. for data transfer to a PC RJ45 Connector for Ethernet 10/100 Base-T 2.5 mm 3-wire cellular headset connector |
| RF Detector: | Type N(m) 50 Ω |
| Display | Bright daylight-viewable color transmissive LCD: Full SVGA, 8 in |
| Languages | Built-in English, Spanish, Italian, French, German, Japanese, Korean, and Chinese. The instrument also has the capability to have two customized languages installed from Master Software Tools. |
| Size and Weight | |
| Size: | 305 x 203 x 76 mm (12 x 8 x 3 in.) |
| Weight: | 2.9 kg (<6.4 lbs) |
| Environmental | |
| Operating: | –10º C to 55º C, humidity 85% or less |
| Storage: | –51º C to 71º C |
| Altitude: | 4600 meters, operating and non-operating |
Applications of the Anritsu MS2026A Vector Network Analyzer
The Anritsu MS2026A is a handheld vector network analyzer (VNA) designed for engineers and technicians who require precise and repeatable measurements of electromagnetic properties in devices and systems. This versatile tool offers a frequency resolution of 10 Hz and a dynamic range of up to 80 dB, depending on the frequency range. It is well-suited for measuring cable loss, with a measurement range of 0 to 30 dB and a resolution of 0.01 dB, making it ideal for testing a wide variety of coaxial and waveguide cables.
The MS2026A's VSWR (Voltage Standing Wave Ratio) measurement range spans from 1 to 65 dB, with a resolution of 0.01, making it an excellent choice for assessing the impedance matching of antennas and other components. Additionally, the return loss measurement range of 0 to 60 dB, with a resolution of 0.01 dB, is crucial for evaluating the reflection coefficient of RF devices.
This VNA is highly adaptable and can be used in various applications, including research and development, production testing, and quality control. It is capable of measuring both the transmission and reflection characteristics of RF and microwave components, which are essential in the design and testing of antennas, filters, amplifiers, and similar devices. The MS2026A is also effective in measuring antenna system impedance matches, assessing cable loss, locating faults in cables, and determining the resonant frequency of resonators and filters.
With its user-friendly interface, the Anritsu MS2026A is accessible to both novice and experienced users. Its compact and durable design makes it easy to transport, and it is shipped in a secure carton for safe delivery. The product is available with a delivery time of 1-3 working days, a minimum order quantity of one set, and negotiable pricing. Payment terms include T/T and Western Union, and the VNA is in stock, ensuring prompt availability.
In conclusion, the Anritsu MS2026A is a reliable and accurate vector network analyzer, suitable for a wide range of applications. Its excellent features, including frequency resolution, dynamic range, and high measurement precision, make it an indispensable tool for engineers and technicians across various industries. The user-friendly interface, compact design, and convenient packaging further enhance its appeal for research, development, production testing, and quality control.
