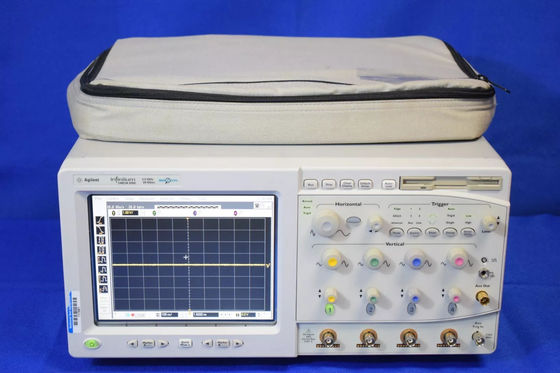

The 54853A Infiniium oscilloscope and InfiniiMax 1131A probing system (1131A probe amp plus the E2668A single-ended connectivity kit and/or E2669A differential connectivity kit) provide full real-time bandwidth of 2.5 GHz and is supported on every channel by the 20 GSa/s sample rate. This industry-leading sample rate produces more accurate and repeatable measurements, avoiding measurement error and signal alliasing due to under sampling of the waveform. The innovative InfiniiMax probing system supports even the most demanding mechanical access requirements without sacrificing performance.

Features of Keysight Agilent 54853A Infiniium Oscilloscope​

• 150 Mb/s to 7 Gb/s or to 12.5 Gb/s pattern generator and error detector
• >0.5 UI calibrated and integrated jitter injection.
• Excellent signal performance and sensitivity
• Built-in clock data recovery with tunable and compliant loop bandwidth
• 2.5 GHz bandwidth real-time oscilloscope with 20 GSa/s sample rate available on all 4 channels simultaneously
• Up to 1 Mpts MegaZoom deep memory at 20 GSa/s and 32 Mpts MegaZoom deep memory at 2 GSa/s and slower sample rates,

  after-purchase memory upgrade available
• Each InfiniiMax probe amplifier supports both differential & single-ended measurements for a more cost effective solution
• Unrivaled InfiniiMax probing accessories support browsing, solder-in and socket use models at the maximum performance available
• The 3.5 GHz InfiniiMax 1131A probe and E2668A/E2669A connectivity kits (all sold seperately) are recommended for the Infiniium 54853A oscilloscope
• New removable hard disk drive option (opt. 017)
• E2681A EZJIT Jitter Analysis Software Option
• E2690A Time Interval and Jitter Analysis Software Option
• E2688A High-Speed Serial Data Analysis with Clock Recovery Software Option
• N5391A Low-Speed Serial Data Analysis Software Option for I2C and SPI
• E2697A High Impedance Adapter (includes 500 MHz passive probe)
• E2698A Ethernet Mask Testing Option
• E2683A USB 2.0 Compliance Test Option
• E2625A Communications Mask Test Kit Option
• E2682A VoiceControl Option for hands-free operation
• E2699A My Infiniium Integration Package Option

Specifications & Attributes (Oscilloscopes)

List of Options
