LeCroy WaveMaster SDA820Zi-A 20 GHz 80 GS/s 4 Channel Digital Oscilloscope with Advanced Analysis Tools

Name: LeCroy WaveMaster SDA820Zi-A 20 GHz 80 GS/s 4 Channel Digital Oscilloscope with Advanced Analysis Tools
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: SDA820Zi-A
Availability: InStock

Brand Name:	LeCroy
Model Number:	SDA820Zi-A
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

USA

Product Name:

Oscilloscope

Frequency:

20 GHz

Channels:

4 Ch

Sample Rate:

80 GS/s

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Supply Ability:

in stock

Highlight:

LeCroy Analog Digital Oscilloscope

SDA820Zi-A Analog Digital Oscilloscope

Practical LeCroy Digital Oscilloscope

Product Description

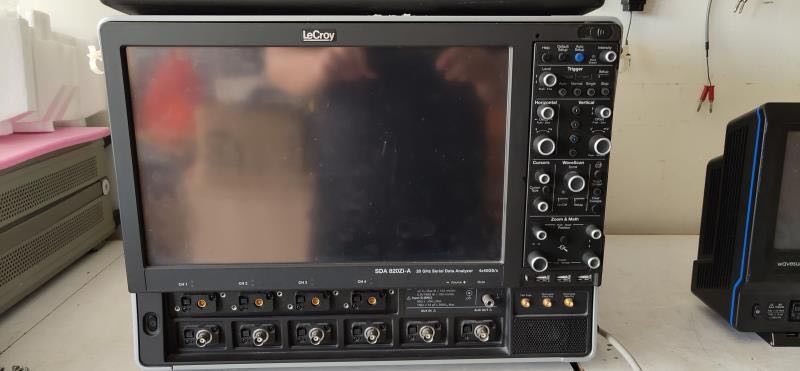

LeCroy 20GHz Digital Oscilloscope Practical WaveMaster SDA820Zi-A

Tektronix LeCroy WaveMaster SDA820Zi-A 20 GHz 4 CH

The WaveMaster SDA820Zi-A represents the pinnacle of digital oscilloscope technology, offering exceptional performance for today's most demanding high-speed signal analysis applications.

Key Features

Up to 30 GHz bandwidth and 80 GS/s sample rate
The most advanced oscilloscope user interface
The industry's only true hardware 14.1 Gb/s serial trigger
Low Jitter Measurement Floor and exceptional timebase stability
Comprehensive set of serial data analysis, debug, validation and compliance tools
Integrated 50 Ω and 1 MΩ inputs for true connection and probing flexibility
Integrated standard and custom measurements and math functions for unrivaled analysis capability
Multi-lane serial data eye, jitter and crosstalk analysis
Real-time de-embedding, emulation, and equalization

Exceptional Performance

With up to 30 GHz bandwidth, 80 GS/s sample rate, extremely stable timebase and a 14.1 Gb/s serial trigger, the WaveMaster 8 Zi-B has the hardware performance to capture today's high-speed signals.

Revolutionary Usability

The WaveMaster 8Zi-B is a sophisticated instrument designed for solving complex problems. The MAUI user interface, along with the 15.3" high-resolution touchscreen, makes advanced analysis easy to set up and use. A flat menu structure puts the most common tools in the easiest reach, and sophisticated multi-grid displays are easy to configure.

Technical Specifications

Vertical System

Analog Bandwidth (Max)	20 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (ProLink Input)	20 GHz (≥10 mV/div)
Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input)	3.5 GHz (≥10 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)	500 MHz (typical, ≥2 mV/div)
Rise Time (10-90%, 50 Ω)	22 ps (test limit, flatness mode)
Rise Time (20-80%, 50 Ω)	16.5 ps (flatness mode)
Input Channels	4 (Any combination of ProLink and ProBus inputs)
Bandwidth Limiters	20 MHz, 200 MHz, 1 GHz, 4 GHz, 6 GHz, 8 GHz, 13 GHz, 16 GHz
Input Impedance	ProLink Inputs: 50 Ω+/-2% for ≤100 mV/div, 50 Ω+/-3% for >100 mV/div ProBus Inputs: 50 Ω+/-2% or 1 MΩ\|\|16pF, 10 MΩ \|\| 11 pF with supplied Probe

Horizontal System

Timebases	Internal timebase common to 4 input channels
Time/Division Range	20 ps/div-128 s/div (Real-Time Mode: 20 ps/div - 64 s/div; RIS mode: 20 ps/div - 10 ns/div, user selectable at ≤10ns/div; Roll mode: 100 ms/div up to 128 s/div, user selectable at ≥100 ms/div and ≤5 MS/s), depending on memory length
Clock Accuracy	< 1 ppm + (aging of 0.5ppm/yr from last calibration)
Sample Clock Jitter	up to 10µs Acquired Time Range: 100fsrms (Internal Timebase Reference)up to 6.4ms Acquired Time Range: 150fsrms (Internal Timebase Reference)

Acquisition System

Single-Shot Sample Rate/Ch	40 GS/s on 4 Ch (80 GS/s on 2 Ch using optional WM8Zi-2X80GS External Interleaving Device)
Random Interleaved Sampling (RIS)	200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Maximum Trigger Rate	1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Standard Memory (4 Ch / 2 Ch / 1Ch)	20 M / 20 M / 20M (Memory and Sample Rate can be doubled in 1 or 2 Ch mode with use of WM8Zi-2X80GS External Interleaving Device) (2000)

Physical Dimensions

Dimensions (HWD)	14"H x 18.4"W x 16"D (355 x 467 x 406 mm)
Weight	51.5 lbs. (23.4 kg)
Shipping Weight	70.0 lbs. (31.8 kg)
