Tektronix DPO3034 Analog Digital Oscilloscope 300MHz 2.5GS/S 4 Channel

Tektronix DPO3034 Analog Digital Oscilloscope 300MHz 2.5GS/S 4 Channel

  • Tektronix DPO3034 Analog Digital Oscilloscope 300MHz 2.5GS/S 4 Channel
  • Tektronix DPO3034 Analog Digital Oscilloscope 300MHz 2.5GS/S 4 Channel
  • Tektronix DPO3034 Analog Digital Oscilloscope 300MHz 2.5GS/S 4 Channel
  • Tektronix DPO3034 Analog Digital Oscilloscope 300MHz 2.5GS/S 4 Channel
Tektronix DPO3034 Analog Digital Oscilloscope 300MHz 2.5GS/S 4 Channel
Product Details:
Place of Origin: USA
Brand Name: Tektronix
Model Number: DPO3034
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Oscilloscope Bandwidth: 300MHz
Channels: 4 Ch Sample Rate: 2.5 GS/s
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Tektronix Analog Digital Oscilloscope

,

2.5GS/S Analog Digital Oscilloscope

,

4 Channel DPO3034 Oscilloscope

Tektronix DPO3034 300MHz 2.5GS/s 5 m 4-Channel DP Oscilloscope
Description of Tektronix DPO3034
The DPO3000 Series digital phosphor oscilloscopes (DPO) deliver the performance you need to visualize even your most demanding signals. Bandwidths range from 100 MHz to 500 MHz, and with all models offering a minimum of 5x over-sampling on all channels and sin(x)/x interpolation standard, you can be confident that even the fastest transient events will be captured and displayed accurately. The standard 5M record length on all channels enables you to capture long windows of signal activity while maintaining fine timing resolution. The 50,000 wfm/s waveform capture rate maximizes the probability of capturing elusive glitches and other infrequent events.

The DPO3000 Series offers a variety of analytical solutions including cursors, 29 automatic measurements, statistics and waveform math. Despite a tiny footprint (only 5.4 in. deep) and light weight (9 lbs.), the DPO3000 Series offers exceptional performance, a large 9 in. WVGA widescreen display and knob-per-channel vertical controls.

Features:
  • 300 MHz Bandwidth
  • 4 Channels
  • 5 M uncompromised long record length comes as standard.
  • Up to 2.5 GS/s sample rate on all channels for accurate representation of your signal.
  • I2C, SPI, RS-232/422/485/UART, CAN and LIN serial triggering and analysis options.
  • Wave Inspector® controls allow you to easily search and navigate through long memory.
  • Large 9 in. WVGA widescreen display lets you see more horizontal on-screen data.
  • PC connectivity and USB mass storage for easy transfer and documentation of information.

List of Options
A0 NORTH AMERICA
A1 UNIVERSAL EURO
A10 CHINA
A11 India
A12 Brazil
A2 UNITED KINGDOM
A3 AUSTRALIA
A5 SWITZERLAND
A6 JAPAN
A99 NO POWER CORD OR AC ADAPTER
C3 CALIBRATION SERVICE 3 YRS. PROVIDES TRACEABLE OR FUNCTIONAL VERIFICATION EVENTS WHICHEVER ARE APPLICABLE TO THE PRODUCT. CALS ARE AT TEKTRONIX RECOMMENDED INTERVAL DURING THE COVERAGE PERIOD. CAL COVERAGE INCLUDES THE MANUFACTURERS CAL + 2
C5 CALIBRATION SERVICE 5 YRS. PROVIDES TRACEABLE OR FUNCTIONAL VERIFICATION EVENTS WHICHEVER ARE APPLICABLE TO THE PRODUCT. CALS ARE AT TEKTRONIX RECOMMENDED INTERVAL DURING THE COVERAGE PERIOD. CAL COVERAGE INCLUDES THE MANUFACTURERS CAL + 4
D1 CALIBRATION DATA REPORT
D3 CALIBRATION DATA REPORT 3 YEARS (WITH OPTION C3)
D5 CALIBRATION DATA REPORT 5 YEARS (WITH OPTION C5)
DDU DISTRIBUTION DEMO UNIT
E1 ENGLISH, GERMAN, FRENCH MANUALS AND POWER CORDS
L0 ENGLISH MANUAL
L1 FRENCH MANUAL
L10 RUSSIAN MANUAL
L2 ITALIAN MANUAL
L3 GERMAN MANUAL
L4 SPANISH MANUAL
L5 JAPANESE MANUAL
L6 PORTUGUESE MANUAL
L7 SIMPLE CHINESE MANUAL
L8 STANDARD CHINESE MANUAL
L9 KOREAN MANUAL
L99 NO MANUAL
R5 REPAIR SERVICE 5 YEARS (INCLUDING WARRANTY)
R5DW REPAIR SERVICE COVERAGE 5 YEARS (INCLUDES PRODUCT WARRANTY PERIOD) 5 YEAR PERIOD STARTS AT TIME OF CUSTOMER INSTRUMENT PURCHASE



FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .

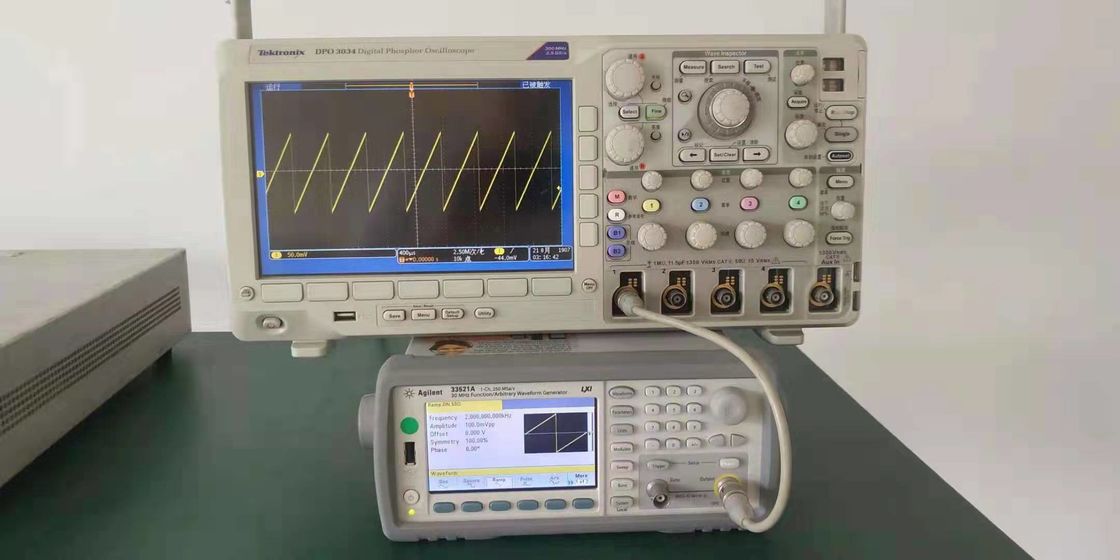

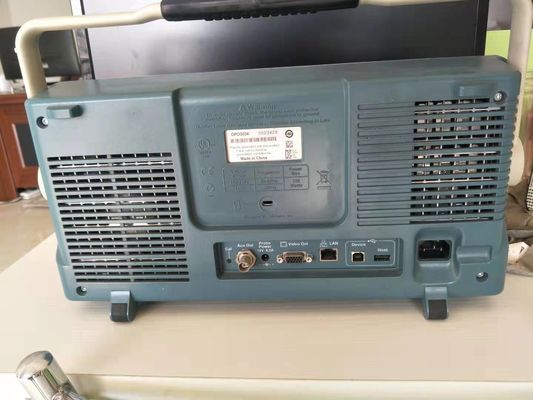

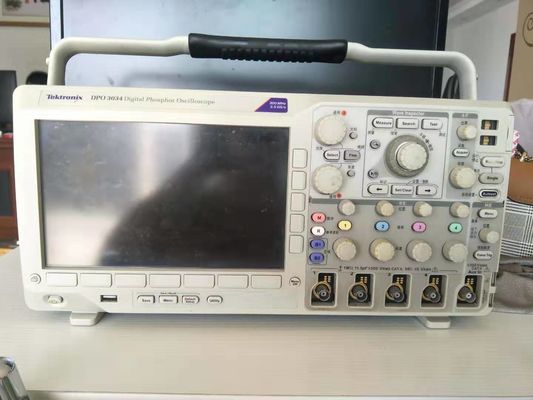

Tektronix DPO3034 Analog Digital Oscilloscope 300MHz 2.5GS/S 4 Channel 0Tektronix DPO3034 Analog Digital Oscilloscope 300MHz 2.5GS/S 4 Channel 1Tektronix DPO3034 Analog Digital Oscilloscope 300MHz 2.5GS/S 4 Channel 2

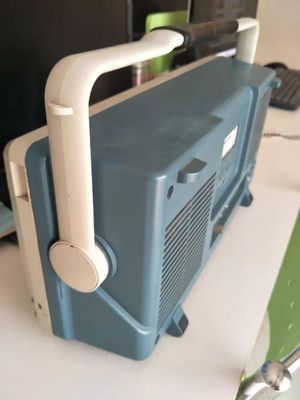

Tektronix DPO3034 Analog Digital Oscilloscope 300MHz 2.5GS/S 4 Channel 3
