Practical 20GSa/s Analog And Digital Oscilloscope Keysight Agilent DSOS054A

Keysight Agilent DSOS054A Analog Digital Oscilloscope 4 GHz 4 Analog Channels

Description of Keysight Agilent DSO054A

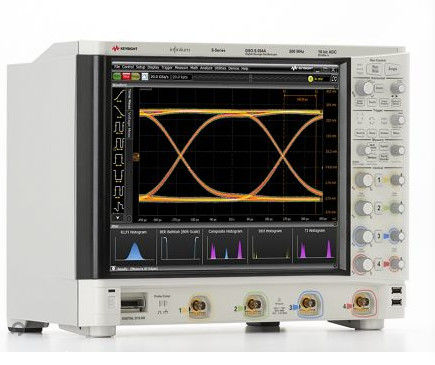

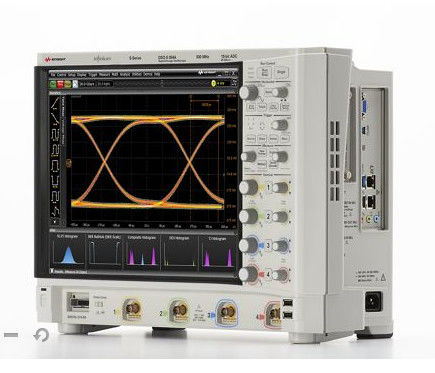

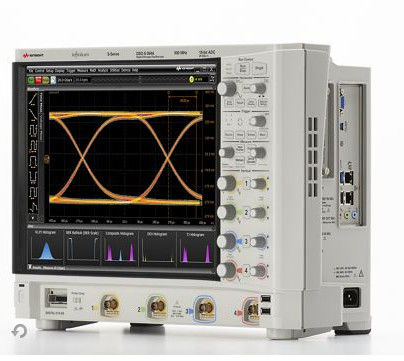

• The DSOS054A S-Series oscilloscopes have 500MHz of bandwidth, a 15” XGA capacitive touch screen, and a 10-bit analog-to-digital converter.The heart of the oscilloscope is a 20-layer acquisition board with 16 custom ASICs and FPGAs. New technology blocks deliver superior signal integrity – and all these blocks have to work together perfectly to achieve the highest effective number of bits (ENOB) in an oscilloscope. Don’t be fooled by ADC bits alone – learn more about how our technology blocks work synchronously to give superior measurements that you won’t get with any other portable scope on the market.

Feature:

• 500 MHz bandwidth (upgradable)
• 4 analog channels
• achieve up to 16 bits of vertical resolution with our advanced system architecture
• capture a longer signal trace with 20 GSa/s maximum sample rate and 100 Mpts/channel of standard memory
• get superior signal integrity with an average system effective number of bits (ENOB) of 8.1 bits at full bandwidth
• gain increased usability with the multi-touch supported 15 inch capacitive touch screen and standard solid state drive for fast boot and high reliability
• access a wide range of protocol, compliance, and analysis software

Outstanding signal integrity

• 10-bit ADC up to 8 GHz for additional resolution
• Low-noise front end for precision signal viewing
• Only 90 µV noise at 1 mV/div and 1 GHz bandwidth
  •  System ENOB values in excess of 8
  • SFDR values down to –73 dBC
  • 2 mV/div vertical scaling supported in hardware
  • HW bandwidth limit filters on 50 Ω and 1 MΩ paths
•  Precision BNCs with > 8 GHz bandwidth
•  Correction filters ensure flat frequency magnitude and phase response
•  Low intrinsic jitter (100 fs (typical) for excellent jitter characterization) Most advanced platform
•  Powerful, flexible Infiniium user interface
•  Fast data offload (up to 200 MB/s) via USB 3.0
•  Capacitive touch screen with multi-touch, easy-grab handles, and re-sizing touch fields
•  Intel i5 and 8 GB RAM for fast processing
•  Removable solid state drive (SSD) for fast boot-up and increased reliability and security

Superior low-noise front end​

• A high-resolution ADC’s usefulness is dependent on the low-noise front end that supports the additional quantization levels. Each S-Series oscilloscope incorporates the industry’s lowest noise front end for portable oscilloscopes with bandwidth up to 8 GHz. The S-Series frontend includes three custom ICs, including a 130 nm BiCMOS IC that incorporates user-selectable analog filters and bandwidth upgrades via a software license.
