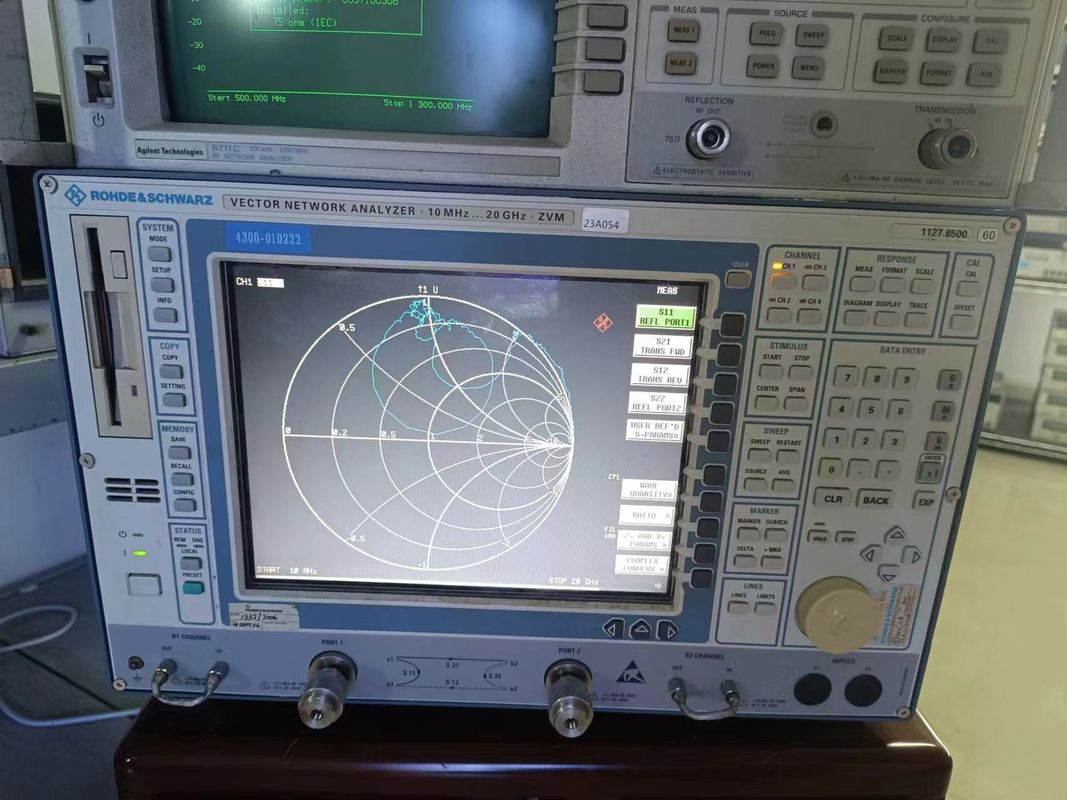

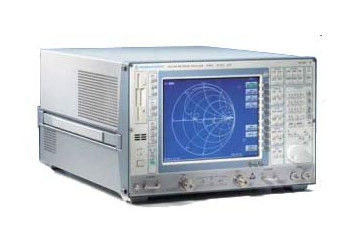

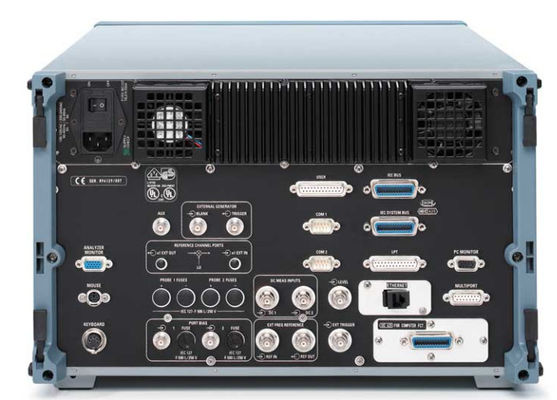

Rohde & Schwarz VNA Network Analyzer ZVM 10MHz to 20 GHz Benchtop

Rohde And Schwarz ZVM Vector Network Analyzer 300 KHz Up To 24 GHz

Description of Rohde And Schwarz ZVM

The Rohde ZVM is a 10 MHz to 20 GHz Vector Network Analyzer. Their outstanding performance in terms of speed, dynamic range and accuracy shows already in standard applications such as S-parameter or group delay measurements. This is enhanced by a wealth of measurement, display and logging functions. In addition, ZVM and ZVK can be used for complex measurement tasks, for example measurements on frequency-converting DUTs (conversion loss, intermodulation, spurious) and nonlinear measurements (intercept point and compression point).

Overview and Features of ZVM Vector Network Analyzer

• (measurement bandwidth 10 Hz)
• Excellent dynamic range
• >115 dB (ZVM)
• >110 dB (ZVK)
• Transfer time <15 ms (200 points)
• Low inherent noise
• <-110 dBm (measurement bandwidth 10 Hz)
• High measurement speed
• <0.5 ms/point (ZVM), <0.7 ms/point (ZVK)
• Fast data transfer via IEC/IEEE bus
• Internal PC with WindowsNT
• Import of virtual networks using CAE-compatible file formats (*.S1P, *.S2P, *.S4P, *.flp)
• Modern calibration techniques TOM,TRM,TRL,TNA,TOM-X
• Embedding of virtual matching networks
• Arbitrary configuration of generator and receiver
• Selective receiver with fundamental mixing
• Easy integration into PC environment and networks
• Swept frequency-conversion and multitone measurements on amplifiers and mixers
• Accurate calibration in test fixtures and on wafers
