Vector Network Analyzer
Created with Pixso. Agilent N9917A FieldFox Handheld Analyzers , Keysight Network Analyzer In Microwave
Detail Information
Place of Origin:
Malaysia
Product Name:
FieldFox Handheld Microwave Analyzer
Maximum Frequency:
,18 GHz
Number Of Built-In Ports:
2 Ports
Instrument Type:
Combination Analyzer
Dynamic Range:
91 DB
Trace Noise:
0.004 DBrms
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
Supply Ability:
in stock
Highlight:

Microwave FieldFox Handheld Analyzers

,

N9917A Keysight Network Analyzer

,

Agilent FieldFox Handheld Analyzers

Product Description

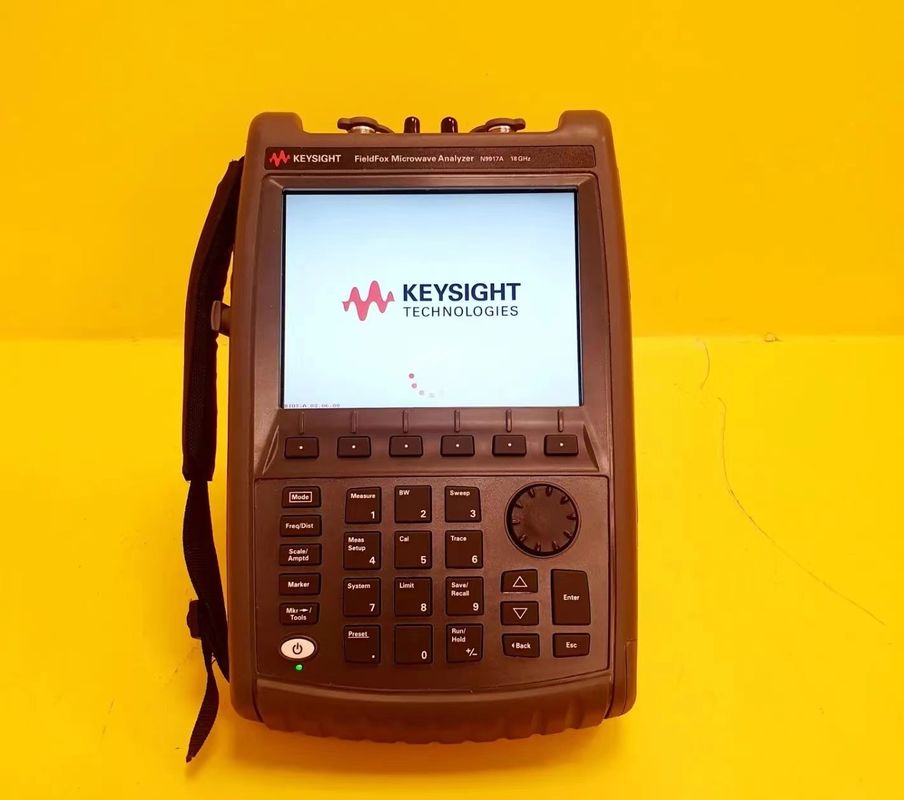

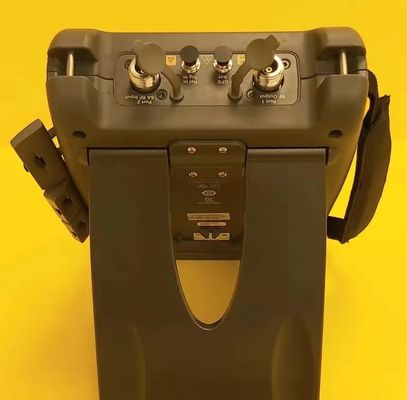

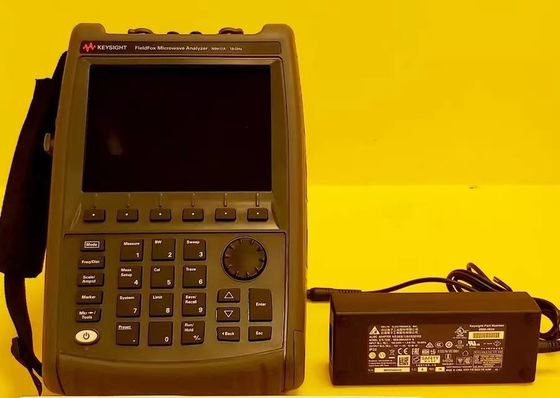

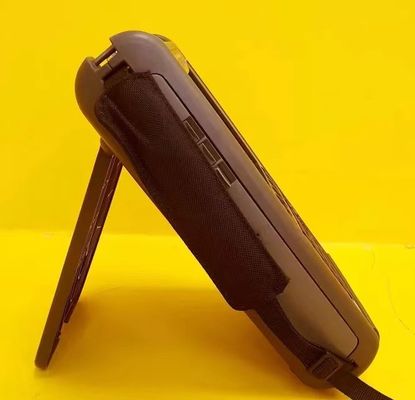

Keysight Agilent N9917A FieldFox Handheld Microwave Analyzer 18 GHz



Description of  Keysight Agilent N9917A

Keysight's FieldFox portable analyzers are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight FieldFox configuration that best meets your needs.



Carry Precision with You
Measuring up and earning a spot in your field kit is the driving idea behind Keysight’s FieldFox handheld analyzers. They’re equipped to handle routine maintenance, in-depth troubleshooting and anything in between. Better yet, FieldFox delivers precise microwave and millimeter-wave measurements - wherever you need to go.

Why choose FieldFox?
Measure with confidence - precise measurements agree with benchtop results
Withstands your toughest working environments - rugged enough to meet MIL-specs
Weighs less than alternative solutions - 7.1 lb (3.2 kg)

Leverage Our Legacy of Measurement Leadership
With FieldFox, you’re carrying the precision of our industry-standard benchtop analyzers. By delivering levels of consistency not available in any other handhelds, FieldFox ensures confidence in your results.

Inside, we leveraged well-tested algorithms from Keysight’s high- performance VNAs. To lighten your load, we simplified calibration by adding built-in standards and eliminating the need to carry calibration kits.

To enhance spectrum analysis, FieldFox includes the same PowerSuite measurements used in Keysight signal analyzers, enabling fast, accurate, one- button characterization of channelized communication systems. The InstAlign capability lets you instantly make accurate power measurements in the field, even when temperature fluctuates.



Overview and Features of N9917A FieldFox Handheld Microwave Analyzer

  • Standard model includes cable and antenna analyzer.
  • Expand capabilities with optional VNA, spectrum analyzer, built-in power meter, vector voltmeter, and more.
  • Save time by measuring DTF and TDR in the same sweep.
  • Measure all four S-parameters simultaneously.
  • Make accurate spectrum analyzer measurements (± 0.5 dB) without warm-up.
  • Calibrate easily with QuickCal.
  • Use the industry's lightest all-in-one analyzer at only 3.0 kg (6.6 lb).

Applications

  • S-Parameters
  • Distance-To-Fault
  • Cable Trimming
  • Return Loss
  • Insertion Loss/Gain
  • Interference Analysis
  • Power Measurements

Components

  • Cables
  • Antennas
  • Amplifiers
  • Filters
  • 75 Ohm CATV Devices

Additional CAT/VNA Based Features

  • QuickCal (Subset)
  • Vector Voltmeter
  • Mixed-Mode S-Parameters
  • TDR Cable Measurements

Additional SA Based Features

  • Built-In Power Meter
  • Extended Range Transmission Analysis (ERTA)

System Features



  • Built-In DC Source
  • GPS Receiver - Internal and External



Standard Attenuator Range 30 dB
Standard Attenuator Step 5 dB
Maximum Dynamic Range 3rd Order @1 GHz n/a
DANL @1 GHz -155 dBm
Maximum Analysis Bandwidth n/a
Phase Noise @1 GHz (1 MHz offset) -113 dBc/Hz
Phase Noise @1 GHz (10 kHz offset) -111 dBc/Hz
Phase Noise @1 GHz (30 kHz offset) -110 dBc/Hz
TOI @1 GHz (3rd Order Intercept) +15 dBm
Applications Available Yes
Frequency 5 kHz to 18 GHz
Overall Amplitude Accuracy ±0.5 dB
Bandwidth Options 5 MHz
Frequency Options 18 GHz
Performance Level ??????
Applications-Cellular n/a
Applications-Digital Video n/a
List of Options
010 Vector Network Analyzer Time Domain
210 Vector Network Analyzer Transmission/Reflection
211 Vector Network Analyzer Full 2-port S-parameters
215 TDR Cable Measurements
