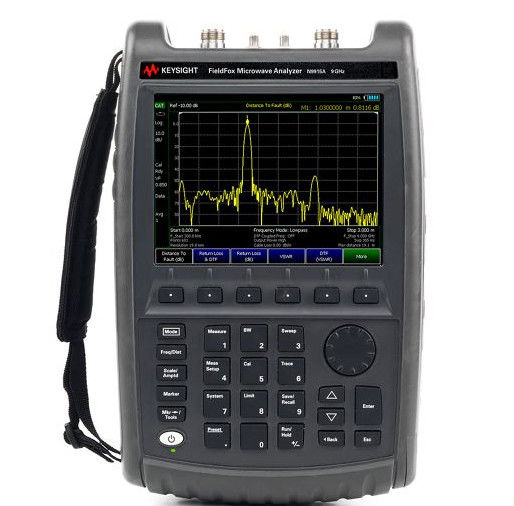

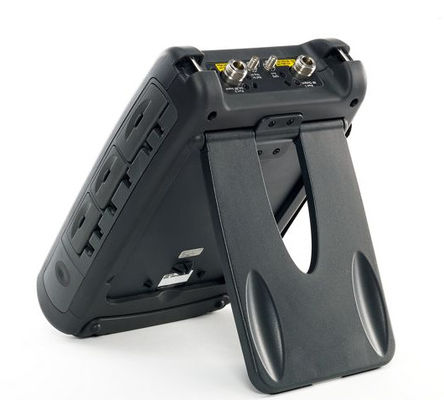

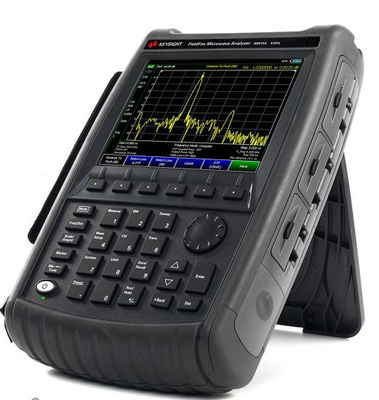

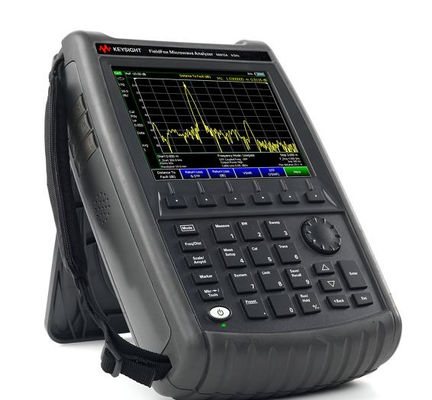

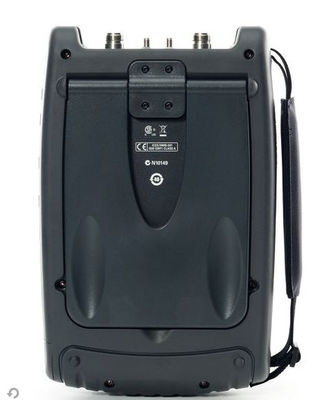

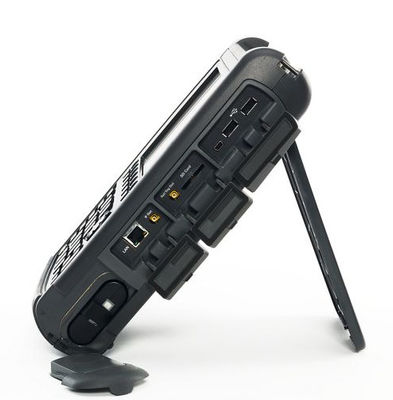

Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer

Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer

  • Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer
  • Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer
  • Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer
  • Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer
  • Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer
  • Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer
  • Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer
Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight (Agilent)
Model Number: N9935A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Handheld RF Analyzer Maximum Frequency: 9 GHz
Bandwidth: 10 MHz Condition: Pre-Owned
Functions: Tested, In Full Working Conditions Number Of Built-In Ports: 2 Ports
High Light:

Keysight N9935A Spectrum Analyzer

,

FieldFox Handheld RF Analyzer

,

9 GHz Microwave Spectrum Analyzer

Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer



Description of  Keysight Agilent N9935A Microwave Spectrum Analyzer

Keysight's FieldFox handheld spectrum analyzers are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight FieldFox configuration that best meets your needs.



Specification of Keysight Agilent N9935A Microwave Spectrum Analyzer



  • Make accurate spectrum analyzer measurements (± 0.5 dB) without warmup.
  • Carry one lightweight unit at 3.0 kg (6.6 lb).
  • Perform over-the-air measurements for 5G TF and LTE.
  • Characterize radar pulse profiles with a portable solution.
  • Use GPS/GNSS for geolocation and timestamping.
  • Capture I/Q data for RF signal monitoring and analysis.
  • Capture intermittent signals with 10 MHz gap-free, real-time bandwidth.

Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer 0

Spectrum Analyzer

In microwave, radar, satellite communications, and commercial microwave backhaul, you may be responsible for hardware installation and maintenance as well as over-the-air signal quality. This could require regular monitoring for unexpected signals and performing signal surveillance. FieldFox’s spectrum analyzer will excel in a dynamic spectral environment. You may face measurement challenges such as the need to detect a low-level signal under strong signal conditions (requiring high dynamic range), or close-in small interference signals (requiring excellent phase noise). FieldFox’s superior dynamic range (TOI +15 dBm), close in phase noise (-117 dBc/Hz at 10 kHz offset), and fast sweep time make these challenging tasks easier. FieldFox’s spectrum analyzer also provides a full power measurement suite and complete trace and state control.

Vector Network Analyzer
FieldFox includes options for VNA transmission/reflection (T/R) capability for S11 and S21 measurements, or with full 2-port capability for measurements of all four S-parameters and full 2-port calibration. With a full 2-port network analyzer, you can measure the forward and reverse characteristics of your component without having to disconnect, turn around, and reconnect it to the analyzer. Additionally, the full 2-port calibration gives you the best measurement accuracy possible. FieldFox’s four independent, sensitive receivers provide 117 dB of dynamic range for measurement of high rejection, narrowband devices such as cavity filters. The receivers also enable full 2-port error correction with the unknown thru method, allowing users to measure non-insertable devices accurately and easily. FieldFox’s calibration engine is the same engine that powers the well-respected Keysight ENA and PNA network analyzers. FieldFox leverages Keysight microwave expertise to deliver consistent measurements with Keysight benchtop VNAs.
Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer 1
FAQ:

1.Can you ship order to Canada or Australia ?

    Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

    We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

    100% T/T payment before shipment.

4. How can I ask any other question ?

    You can contact us online or leave us messages below .



Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer 2Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer 3Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer 4Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer 5Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer 6Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer 7Keysight N9935A FieldFox Handheld RF Analyzer 9 GHz Microwave Spectrum Analyzer 8
