products details
|
Portable Keysight N9928A FieldFox Handheld Microwave Vector Network Analyzer 26.5GHz
| Brand Name: | Keysight |
| Model Number: | N9928A |
| MOQ: | 1 set |
| Price: | Negotiable |
| Delivery Time: | 1~3 working days |
Detail Information
Place of Origin:
Malaysia
Product Name:
Keysight Agilent N9928A
Frequency Coverage:
26.5GHz
Type:
Vector Network Analyzer
Condition:
Full Tested Usable
Packaging Details:
Carton
Supply Ability:
In Stock
Highlight:
26.5GHz Vector Network Analyzer
,Portable Vector Network Analyzer
,Handheld Microwave Vector Network Analyzer
Product Description

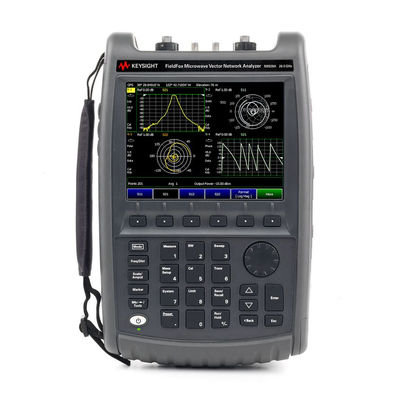

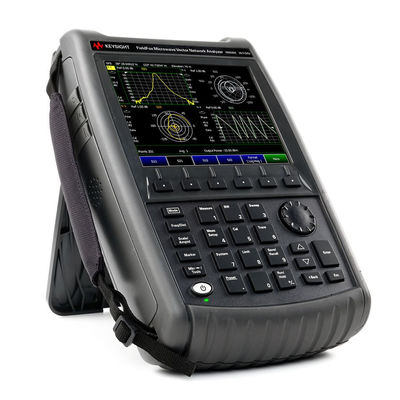

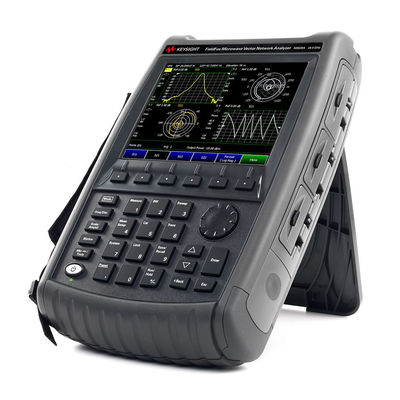

Portable Keysight (Agilent) N9928A FieldFox Handheld microwave vector network analyzer 26.5GHz
Description of Keysight (Agilent) N9928A
- 26.5 GHz max frequency
- It can be configured for use with complete dual-port VNA, time domain reflectometer, vector voltmeter, cable and antenna analyzer and other instruments
- All four S-parameters can be measured simultaneously with a single connection, with a dynamic range of up to 95 dB
- In the field, QuickCal, full dual port unknown through calibration and through-Reflection-line (TRL) calibration can be run for accurate testing
- Average power and pulse power can be easily measured using a USB power sensor.
- The handheld VNA weighs just 3.0 kg (6.6 lb), making it very portable.
| Maximum Frequency | 26.5 GHz |
|---|---|
| Other CAT/VNA features |
QuickCal (Subset)
DTF/TDR Cable Measurements
Mixed-Mode S-Parameters
Vector Voltmeter
|
| Cable and antenna analyzers | Yes - Optional |
| Dynamic range | 100 dB |
| Additional spectrum analyzer features |
Built-In Power Meter
|
| Appearance factor | n/a |
| Number of Built-In Ports | 2 ports |
| Instrument Type |
Vector Network Analyzer
|
| Output power | Up to 1 dBm |
| Spectrum Analyzer | No |
| System characteristics |
GPS Receiver - Internal Only
Remote Control Capability
Built-In DC Source
|
| Trajectory noise |
0.004 dB rms
|
| Overall amplitude accuracy | ±0.2 dB |
| Types | Handheld |
| System Features |
GPS Receiver - Internal Only Remote Control Capability
Built-In DC Source
|
| Vector network analyzer |
Yes - Standard |
List of Options
| 010 | Vector network analyzer time domain |
| 030 | Remote Control Capability |
| 112 | QuickCal |
| 208 | USB Power Sensor Measurements Versus Frequency |
| 211 | Vector network analyzer full 2-port S-parameters |
| 212 | 1-port mixed-mode S-parameters |
| 215 | TDR cable measurements |
| 302 | USB power sensor support |
| 305 | Cable and antenna analyzer |
| 307 | GPS Receiver |
| 308 | Vector voltmeter |
| 309 | DC Bias Variable Voltage Source |
| 310 | Built-in Power Meter |
| 330 | Pulse measurements |
