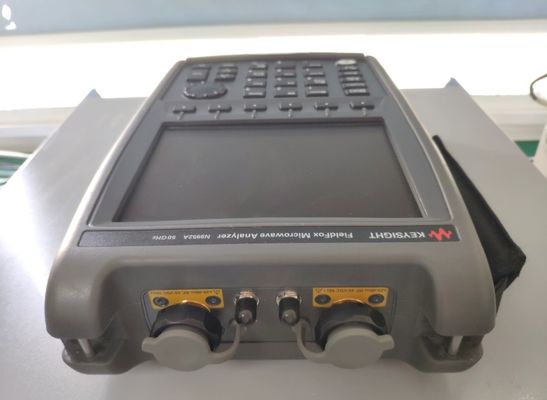

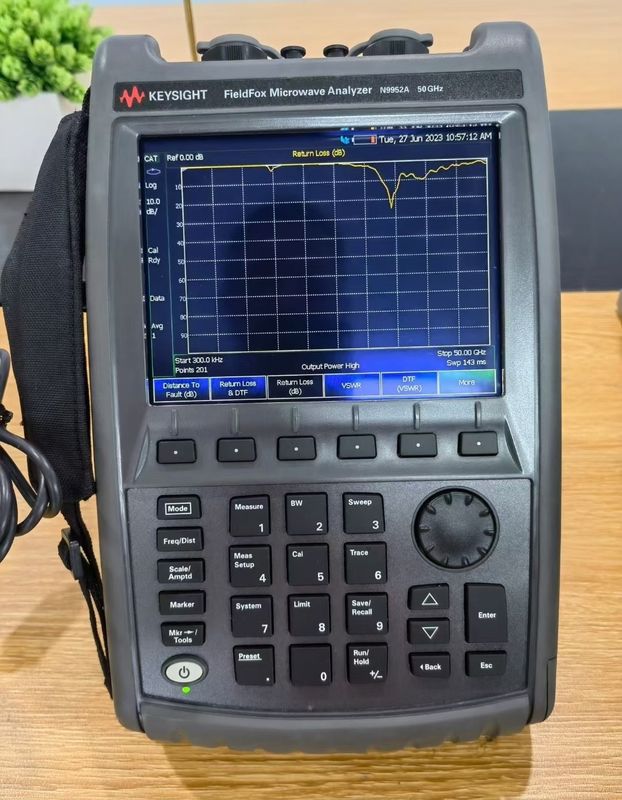

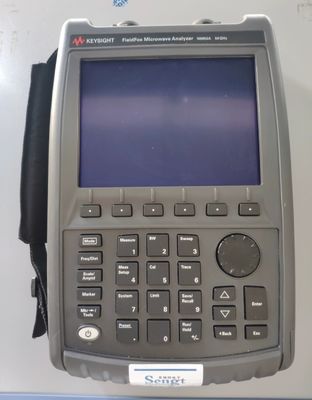

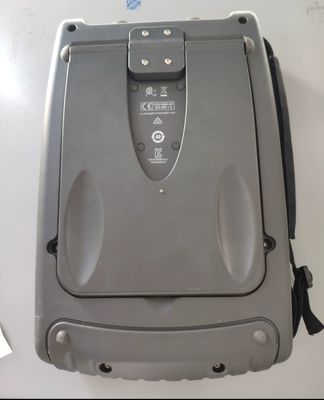

Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer, 50 GHz

Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer, 50 GHz

  • Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer, 50 GHz
  • Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer, 50 GHz
  • Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer, 50 GHz
  • Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer, 50 GHz
Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer, 50 GHz
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight
Model Number: N9952A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Handheld Microwave Analyzer Frequency: 50 GHz
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
Portable: Yes
High Light:

50 GHz Handheld Microwave analyzer

,

Portable Handheld Microwave analyzer

Portable Keysight (Agilent) N9952A FieldFox Handheld Microwave Analyzer, 50 GHz





Description of   Keysight (Agilent) N9952A




  • 50 GHz max frequency
  • Carry industry’s first 50 GHz handheld µW analyzer: standard model includes cable and antenna analyzer
  • Expand capabilities with optional VNA, spectrum analyzer, built-in power meter, vector voltmeter, and more
  • Save time by measuring DTF and TDR in a single sweep
  • Simultaneously measure all four S-parameters
  • Make accurate SA measurements (± 0.5 dB) without needing warm-up
  • Easily measure average and pulse power with a USB sensor
  • Lightest all-in-one analyzer at only 7.1 lb. (3.2 kg)



Maximum Frequency 50 GHz
Minimum Frequency 300 kHz
SA Start Frequency 5 kHz
System Dynamic Range 110 dB
Best Speed at 1001 Point, 1 Sweep 478 us/pt
Output Power 4 dBm
Trace Noise 0.004 dB
Number of Built-In Ports 2 ports
Instrument Type Combination Analyzer
Cable and Antenna Analyzer Yes - Standard
Spectrum Analyzer Yes - Optional
Vector Network Analyzer Yes - Optional
Additional CAT/VNA Based Features
  • Vector Voltmeter
  • Mixed-Mode S-Parameters
  • DTF/TDR Cable Measurements
Additional SA Based Features
  • Built-In Power Meter
  • Extended Range Transmission Analysis (ERTA)
  • Real-Time Spectrum Analysis
  • Noise Figure Measurements
  • Over-The-Air Measurements
System Features
  • Built-In DC Source
  • GPS Receiver - Internal Only
  • Remote Control Capability
Power Measurement Using USB Sensor
  • CW or Swept-Frequency
  • Frequency-Offset
  • RF Pulse Test with Peak Sensor
Standard Attenuator Range 30 dB
Standard Attenuator Step 5 dB
DANL @1 GHz -159 dBm
Maximum Analysis Bandwidth 10 MHz
Phase Noise @1 GHz (1 MHz offset) -113 dBc/Hz
Phase Noise @1 GHz (10 kHz offset) -111 dBc/Hz
Phase Noise @1 GHz (30 kHz offset) -108 dBc/Hz
Spur Free Dynamic Range > 104 dB
TOI @1 GHz (3rd Order Intercept) +13 dBM
Applications Available Yes
Maximum Real-Time Bandwidth 10 MHz
Bandwidth Options 10 MHz (standard)
Performance Level ??????
Applications-Cellular
  • 89600 VSA Software
  • Over-The-Air LTE FDD and 5GTF
Applications-Digital Video 89600 VSA Software
Applications-General Purpose
  • AM/FM Tune and Listen
  • Field Strength Measurement
  • SCPI Code Compatibility
  • Spectrogram
  • Stimulus Response
Applications-Wireless Connectivity 89600 VSA Software





List of Options
010 Vector Network Analyzer Time Domain
030 Remote Control Capability
208 USB Power Sensor Measurements Versus Frequency
209 Extended Range Transmission Analysis (ERTA)
210 Vector Network Analyzer Transmission/Reflection
211 Vector Network Analyzer Full 2-port S-parameters
212 Mixed-Mode S-parameters
215 TDR Cable Measurements
233 Spectrum Analyzer
235 Pre-amplifier
236 Interference Analyzer and Spectrogram
238 Spectrum Analyzer Time Gating
302 External USB Power Sensor Support
307 GPS Receiver
308 Vector Voltmeter
309 DC Bias Variable Voltage Source
310 Built-in Power Meter
312 Channel Scanner
330 Pulse Measurements
350 Real-time Spectrum Analyzer (RTSA)
351 I/Q Analyzer (IQA)
352 Indoor and Outdoor Mapping
355 Analog Demodulation
356 Noise Figure (NF)
358 EMF Measurements
360 Phased Array Antenna Control
370 Over-the-Air (OTA) LTE FDD
377 Over-the-Air (OTA) 5GTF
