| Place of Origin: | Malaysia |
| Brand Name: | Keysight (Agilent) |
| Model Number: | N5222A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 1~3 Working Days |
| Payment Terms: | T/T，Western Union |
| Supply Ability: | In Stock |
| Dynamic Range: | Up To 132 DB | Output Power: | Up To +13 DBm |
|---|---|---|---|
| Power Range: | Up To +38 DBm | Number Of Channels: | 200 |
| Measurement Speed: | Up To 500,000 Points/s | Sweep Time: | Up To 0.01 Ms |
| Display Resolution: | Up To 0.001 DB | Connector Type: | SMA, N, 2.4 Mm, 3.5 Mm |
| High Light: | 10MHz-26.5GHz PNA Network Analyzer,Microwave Or Vector Network Analyzer,N5222A PNA Network Analyzer |
||
Key Features & Specifications
1.10 MHz to 26.5 GHz
2.2-ports with single source or 4-ports with two built-in sources
3.127 dB system and 132 dB receiver dynamic range, 32,001 points, 200 channels, 15 MHz IF bandwidth
4.High output power (+13 dBm) and a wide power sweep range (38 dB)
5.Best dynamic accuracy: 0.1 dB compression with +12 dBm input power at the test port
6.Low noise floor of -114 dBm at 10 Hz IF bandwidth
Highest performance network analyzer that meets your budget

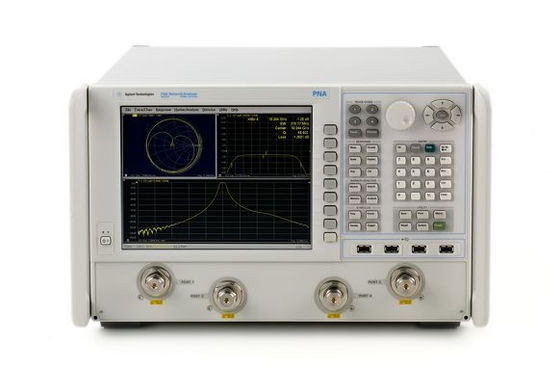

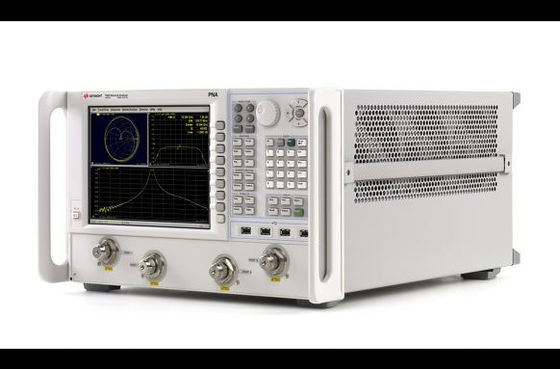

The N5222A is Agilent's 26.5 GHz network analyzer. The Network analyzer is a powerful instrument that can measure the linear characteristics of RF devices with unmatched accuracy. Many industries use network analyzers to test equipment, measure materials, and monitor the integrity of signals.
The PNA Series is the highest-performing microwave network analyzer in the industry for passive and active device test. You can choose from five frequency models, 13.5, 26.5, 43.5, 50, or 67 GHz, and customize your PNA with the just the right level of performance to meet your specific budget and measurement needs.
The Agilent PNA is used to test a wide variety of passive and active devices such as filters, duplexers, amplifiers and frequency converters. The high-performance characteristics of the PNA make it an ideal solution for these types of component characterizations as well as millimeter-wave, signal integrity and materials measurements.
Most accurate S-parameter measurements
The N5222A offers a high power source and the best linear receiver (at the time of product launch), enabling the most accurate S-parameter measurements with the widest power range on the market
Overview and Features:
1.Reach for unrivaled excellence in your measurements and designs
2.Transform deeper understanding into better designs with the PNA’s outstanding measurement integrity
3.Meet your toughest measurement challenges with the highest performing microwave network analyzer in the industry
4.Get the best accuracy with Keysight’s S-parameter measurements
5.Meet your specific budget and measurement needs by customizing to just the right level of performance
What's Included:
1.Plug, hole, bottom foot
2.Installation and quick start guide
3.Safety manual
4.Calibration certificate
5.3 Inductors (ferrite cores)
6.Wrench
7.Cable tie
8.Optical Mouse
| 007 | Automatic Fixture Removal |
| 008 | Pulsed-RF Measurements |
| 010 | Time Domain |
| 015 | Dynamic Uncertainty for S-Parameter Measurements |
| 020 | Add IF inputs |
| 021 | Add pulse modulator to internal first source |
| 022 | Add pulse modulator to internal second source |
| 025 | Add four internal pulse generators |
| 028 | Noise figure measurements using standard receivers |
| 080 | Frequency- Offset ( for use with mixers, converters and amplifiers) |
| 082 | Scalar calibrated converter measurements |
| 083 | Vector and scalar calibrated converter measurements |
| 084 | Embedded LO measurements |
| 086 | Gain compression application |
| 087 | Intermodulation distortion measurements |
| 088 | Source phase control |
| 089 | Differential and I/Q devices application |
| 090 | Spectrum Analyzer |
| 093 | Extended Spectrum Analyzer to 110 GHz |
| 094 | Extended Spectrum Analyzer above 110 GHz |
| 118 | Fast CW Mode |
| 200 | 2 ports, single source, base hardware configuration |
| 201 | 2-Ports, Single Source with Configurable Test Set |
| 210 | 2 ports, single source, with metrology configuration |
| 217 | 2-Ports, Single Source, Configurable Test Set with Extended Power Range |
| 219 | 2-Ports, Single Source, Configurable Test Set, Extended Power Range, Bias-Tees |
| 301 | Application for use with standard CalPods |
| 302 | Application for use with temperature-characterized CalPods |
| 400 | 4-Ports, Dual-Source, Base Configuration |
| 401 | 4-Ports, Dual-Source with Configurable Test Set |
| 417 | 4-Ports, Dual-Source, Configurable Test Set with Extended Power Range |
| 419 | 4-Ports, Dual-Source, Configurable Test Set, Bias Tees with Extended Power Range |
| 460 | Integrated true-mode stimulus application |
| 551 | N-port calibrated measurements |
| 897 | Built-in performance test software for inclusive calibration, perpetual license |
| 898 | Built-in performance test software for standards compliant calibration, perpetual license |
| W7X | Windows 7 operating system |
| WXP | Windows XP operating system |
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
