Vector Network Analyzer
Created with Pixso. Keysight/Agilent N245A Portable PNA-X Vector Microwave Analyzer

Keysight/Agilent N245A Portable PNA-X Vector Microwave Analyzer

Brand Name: Keysight (Agilent)
Model Number: N5245A
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Detail Information
Product Name:
PNA-X Vector Analyzer
Frequency:
10MHz To 50 GHz
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
Type:
Vector
Supply Ability:
in stock
Highlight:

PNA-X Vector Microwave Analyzer

,

Portable PNA-X Vector Analyzer

,

microwave PNA-X Vector Analyzer

Product Description

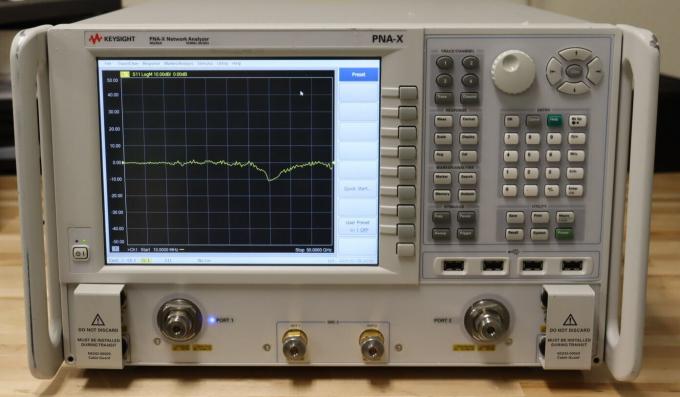

Keysight Agilent N5245A PNA-X Vector Network Analyzer
Description of Keysight Agilent N5245A
  • World widest range of single-connection measurement applications
  • The PNA-X network analyzer is the world ‘s most intergrated and flexible single-connection microwave test engine active devices such as amplifiers,mixers,and frequency converters.You can choose from five frequency models to meet your specific device test needs:13.5,26.5,43.5,50,and 67GHz.The PNA-X provides unrivaled configuarbility with a built in second source,combiner,and internal signal-routing switches.

Key Features & Specifications

  • 10MHz to 50GHz
  • 2-ports  with two built-in sources
  • 126 dB system and 129 dB receiver dynamic range, 32channels, 5 MHz bandwidth
  • High output power (+16 dBm) ,low harmonics (-60dbc)and a wide power sweep range (41db)
  • Best dynamic accuracy: 0.1 dB compression with +15 dBm input power at the receiver
  • Low noise floor of -111 dBm at 10 Hz IF bandwidth



This is an Agilent Keysight N5245A PNA-X High Performance Vector Network Analyzer.This Unit is in great condition,and guaranteed fully operational.The option below are installed:
010 Time-domain measurements
029 Fully-corrected noise-figure measurements
080 Frequency offset measurements
083 Vector and scalar calibrated converter measurements
086 Gain compression application
087 Intermodulation distortion measurements
088 Source phase control
090 Spectrum Analyzer to 50GHz
200 2 ports, single source
219 Add extended power range and bias-tees to 2 port analyzer
224 Add internal second source, combiner and mechanical switches to 2-port analyzer







FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .



Keysight/Agilent N245A Portable PNA-X Vector Microwave Analyzer 0
