Tested Keysight 86120C Multi-Wavelength Meter 1270 To 1650 Nm Optical Meters

Tested Keysight 86120C Multi-Wavelength Meter 1270 To 1650 Nm Optical Meters

  • Tested Keysight 86120C Multi-Wavelength Meter 1270 To 1650 Nm Optical Meters
  • Tested Keysight 86120C Multi-Wavelength Meter 1270 To 1650 Nm Optical Meters
  • Tested Keysight 86120C Multi-Wavelength Meter 1270 To 1650 Nm Optical Meters
Tested Keysight 86120C Multi-Wavelength Meter 1270 To 1650 Nm Optical Meters
Product Details:
Place of Origin: Malaysia
Brand Name: Agilent
Certification: FCC
Model Number: 86120C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Multi-Wavelength Meter Form Factor: Plug-In/Rackmount
Wavelength Range: 1270 – 1650 Nm (182 To 236 THz) Wavelength Accuracy: +- 2 Ppm For Laser Lines Separated By > 15GHz
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

1270 To 1650 Nm Multi-Wavelength Meter

,

Keysight 86120C Optical Meters

,

Optical Multi-Wavelength Meter

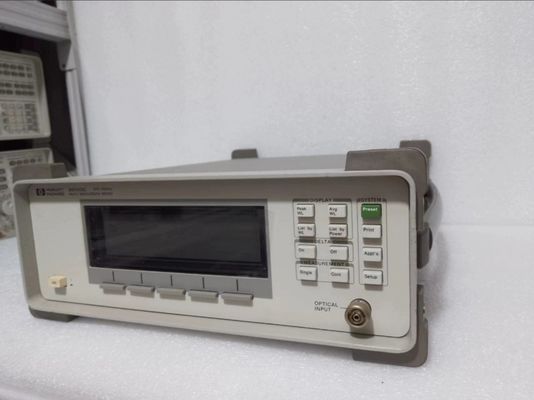

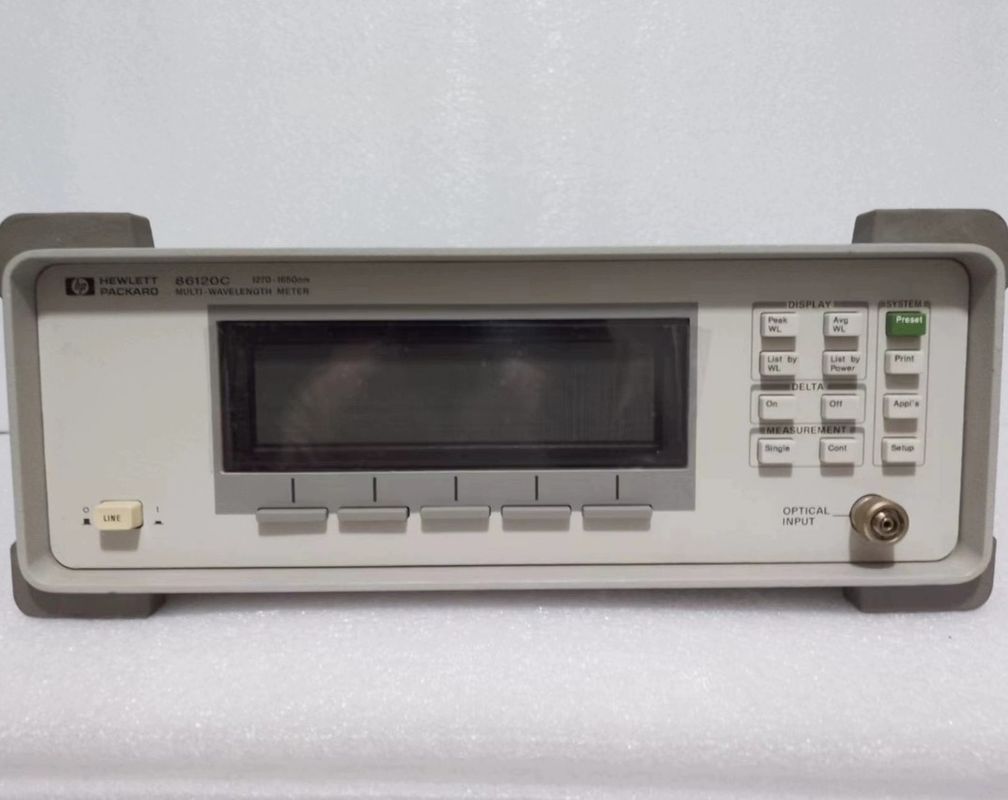

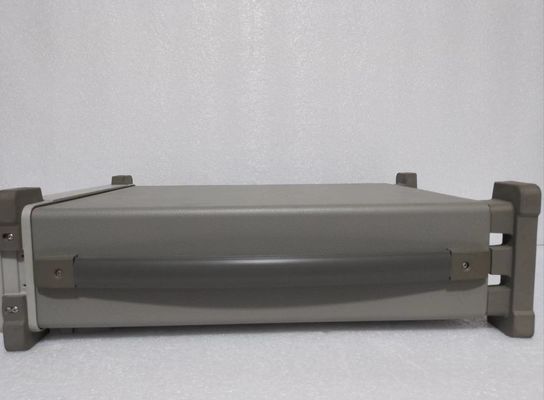

Tested Keysight (Agilent) 86120C Multi-Wavelength Meter 1270 To 1650 Nm





Description of Keysight (Agilent) 86120C Multi-Wavelength Meter



Agilent''s Multi-Wavelength Meter family 86120C is the right, optimized tools to efficiently develop, manufacture, install and verify optical components and networks for next generation applications. Agilent multi-wavelength meters are Michelson interferometer-based instruments that measure wavelength and optical power of laser light over a specified wavelength range. Simultaneous measurements of multiple laser lines are performed allowing measurements of DWDM signals and multiple lines of Fabry-Perot lasers.



Features:


  • Wavelength scan in less than 1sec
  • Wavelength accuracy: +- 2 ppm for laser lines separated by > 15GHz
  • High Laser Input power: 10dBm (18dBm - Safe Input level)
  • Built-in HeNe laser wavelength standard



Benefits:



  • The wavelength accuracy gives you the certainty of accurate channel characterization in dense WDM systems, to detect channel''s wavelength shift and crosstalk between adjacent channels.
  • The high input power level enables you to test transmitter without additional connections and instruments (e.g. attenuator).
  • The built-in HeNe guarantees an accurate absolute wavelength measurement real-time determined against the standard anytime and ensures accurate and reproducible experimental results.



List of Options

010 Delete FC/PC connector
011 Diamond HMS-10 connector interface
013 DIN 47256 connector interface
014 ST connector interface
017 SC connector interface
021 Straight non-angled contact interface - PC
022 Angled contact interface - APC
412 Add 10 dB external attenuator (SC/PC interface connector)
417 Add angled 10 dB external attenuator (SC/APC interface connector)
81000FI Connector interface FC/PC/SPC
81000HI Connector intf. E-2000(physical contact)
81000KI Connector interface SC
81000LI LC Connector interface for source modules
81000SI Connector interface DIN 47256/4108
81000VI Connector interface ST
AXE Rack flange kit with handles
IA4 Rack mount kit without handles
OBO Do not include manual
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C Return to Agilent Warranty - 3 years
R-51B-001-5C Return to Agilent Warranty - 5 years
R-51B-001-C Return to Agilent Warranty - 1 year
UK6 Commercial calibration certificate with test data
W32 3 Years Return for Calibration Service
W52 5 Years Return for Calibration Service

FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
