| Brand Name: | Tektronix |
| Model Number: | DSA72504D |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |

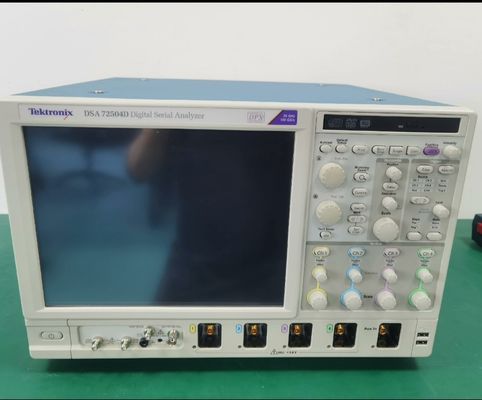

The DSA72504D Series oscilloscope delivers exceptional signal acquisition performance and analysis capability. Discover your real signals with uncompromised acquisition on all 4 channels and capture more signal details with the industry’s highest waveform capture capability. Automate setup, acquisition and analysis of high-speed serial data signals with a toolset engineered to deliver faster design and compliance testing.
Tektronix DSA72504D Specifications
Tektronix DSA72504D Applications
| 10XL | Extended record length - 125M/Ch |
| 20XL | Extended record length - 250M/Ch |
| 5XL | Extended record length - 50M/Ch |
| C3 | Calibration Service 3 Yrs. Provides traceable or functional verification events whichever are applicable to the Product. Cals are at Tektronix recommended interval during the coverage period. Cal coverage includes the Manufactures Cal + 2 a |
| C5 | Calibration Service 5 Yrs. Provides traceable or functional verification events whichever are applicable to the Product. Cals are at Tektronix recommended interval during the coverage period. Cal coverage includes the Manufactures Cal + 4 a |
| D1 | Calibration Data Report |
| D3 | Calibration Data Report 3 Years (with Option C3 |
| D5 | Calibration Data Report 5 Years (with Option C5) |
| DDRA | DDR Memory Bus Analysis (requires DJA) |
| DDU | Distributor Demonstration Unit |
| DPHY | MIPI D-PHY Transmitter Debug, Characterization and Compliance Test Solution (requires DJA) |
| DSPT | DisplayPort Transmitter Compliance Test Software (requires DJA and record length options: 5XL, 10XL, or 20 XL) |
| DVI | DVI Compliance Testing |
| ERRDT | Frame and Bit Error Rate Detector for High Speed Serial Stds (requires option ST6G) |
| ET3 | Ethernet Compliance Testing |
| G3 | Three Year Gold Care Plan. Includes expedited repair of all product failures including ESD and EOS, access to a loaner product during repair or advanced exchange to reduce downtime, priority access to Customer Support among others |
| G5 | Five Year Gold Care Plan. Includes expedited repair of all product failures including ESD and EOS, access to a loaner product during repair or advanced exchange to reduce downtime, priority access to Customer Support among others |
| HT3 | HDMI Compliance Testing |
| HT3DS | HDMI Direct Synthesis for HDMI 1.4 (requires HT3) |
| LT | Waveform Limit Testing |
| MHD | MHL Advanced Analysis and Compliance Software( Needs Option Tek Exp, Option DJA and Option 2XL) |
| MPHY | MIPI M-PHY Transmitter Debug, Characterization and Compliance Test Solution (requires DJA) |
| PCE3 | PCI Express Gen 3 Essentials (requires DJA) |
| PWR | Power Measurement and Analysis |
| R3 | Repair Service 3 Years (including warranty) |
| R5 | Repair Service 5 Years (including warranty) |
| R5DW | Repair service coverage 5 years (includes product warranty period); 5 year period starts at time of customer instrument purchase |
| SFPTX | SFP+ Compliance and Debug Solution |
| SLA | Serial Data Link Analysis - Advanced (includes Equalization) |
| SLE | Serial Data Link Analysis - Essentials (no Equalization) |
| SRCOMP | Computer Serial Triggering and Analysis (RS-232/422/485/UART) |
| SRCUST | Custom Serial Analysis Kit for Developers |
| SRDPHY | MIPI D-PHY (DSI1 / CSI2) Serial Analysis |
| SREMBD | Embedded Serial Triggering and Analysis (I2C, SPI) |
| SRUSB | USB Serial Triggering and Analysis |
| SVE | SignalVu Essentials - Vector Signal Analysis Software for Oscilloscopes |
| SVM | General Purpose Digital Modulation Analysis. Requires Opt. SVE |
| SVO | Flexible OFDM Analysis, Requires Opt. SVE |
| SVP | Advanced Signal Analysis (including pulse measurements), Requires Opt. SVE |
| SVT | Settling Time, Frequency, and Phase. Requires Opt. SVE |
| USB | USB 2.0 Compliance Testing |
| USB3 | USB 3.0 Essentials (requires DJA) |
| VET | Visual Trigger and Search |
Our service
One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
|
|
