Portable Keysight N9961A FieldFox Handheld Microwave Spectrum Analyzer 44 GHz

Portable Keysight N9961A FieldFox Handheld Microwave Spectrum Analyzer 44 GHz

  • Portable Keysight N9961A FieldFox Handheld Microwave Spectrum Analyzer 44 GHz
  • Portable Keysight N9961A FieldFox Handheld Microwave Spectrum Analyzer 44 GHz
  • Portable Keysight N9961A FieldFox Handheld Microwave Spectrum Analyzer 44 GHz
  • Portable Keysight N9961A FieldFox Handheld Microwave Spectrum Analyzer 44 GHz
  • Portable Keysight N9961A FieldFox Handheld Microwave Spectrum Analyzer 44 GHz
Portable Keysight N9961A FieldFox Handheld Microwave Spectrum Analyzer 44 GHz
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight
Model Number: N9961A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Handheld RF Analyzer Frequency: 44 GHz
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
Portable: Yes Number Of Built-In Ports: 2 Ports
High Light:

Portable Microwave Spectrum Analyzer

,

Portable FieldFox Analyzer

,

44 GHz Microwave Spectrum Analyzer

Portable Keysight N9961A FieldFox Handheld Microwave Spectrum Analyzer 44 GHz



Description of  Keysight Agilent N9961A



A lightweight, durable, microwave spectrum analyzer, interference analyzer, distance-tracking generator, preamplifier, power meter, and more



Highlights



Never Sacrifice Capability or Portability

Keysight's FieldFox portable analyzers are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight FieldFox configuration that best meets your needs.

  • Make accurate spectrum analyzer measurements (± 0.5 dB) without warmup.
  • Capture intermittent signals with 10 MHz gap-free, real-time bandwidth.
  • Characterize radar pulse profiles with a portable solution.
  • Perform over-the-air measurements for 5G TF and LTE.
  • Capture I/Q data for RF signal monitoring and analysis.
  • Use GPS/GNSS for geolocation and timestamping.
  • Carry one lightweight unit at 3.2 kg (7.1 lb).

FieldFox Handheld Analyzers Why choose FieldFox?

  • A truly software-defined analyzer, the newly introduced N9912C RF analyzer in particular, offers the maximum flexibility and the least initial investment to meet rapidly changing market requirements
  • Ideal 5G deployment and field-testing tool with 120 MHz real-time bandwidth and over-the-air (OTA) measurements
  • Ability for 5G, satellite and radar operators to make true RF coverage measurements, up to 54 GHz and beyond, and beamforming verification with phased array antenna support
  • Simplified field signal monitoring with wideband capture and recording of fully corrected IQ data
  • Highly efficient radar and EW systems diagnostics with spectrum analysis, full 2-port VNA, power meter, pulse and noise figure measurements and results that correlate with high-performance bench top instruments.
  • Durable handheld analyzers that can withstand your toughest working conditions

Designed for You and the Work You Do Everyday

Carry FieldFox wherever you need to go

  • Kit friendly at 7.35 lb. (3.34 kg)
  • Large buttons are easy to operate, even when wearing gloves
  • Field swappable battery lasts up to 4 hours
  • Non-slip rubber grip securely fits in your hands and won’t slide off the hood of your vehicle
  • Vertical “portrait” orientation makes it easy to hold and operate at the same time

Designed for your toughest working conditions

  • Rugged enough to meet MIL-specs
  • Completely sealed instrument enclosure provides measurement stability in harsh environments,
  • -10 to +55 ºC (14 to 131 ºF)
  • Specially designed to protect instrument from damage due to drops, shock or other external impacts
  • Water-resistant chassis, keypad and case withstand wide temperature ranges and salty, humid environments
  • Meets MIL-PRF-28800F Class 2 requirements
  • Type tested and meets MIL-STD-810G, Method 511.5, Procedure I requirements for operation in explosive environments
  • Type tested and meets IEC/EN 60529 requirements for ingress protection

Insertion loss and cable loss

Insertion loss or cable loss characterizes the loss of a jumper cable, feeder cable, diplexer, or gain of a tower-mounted amplifier (TMA). With FieldFox, you can measure both the 1-port cable loss and 2-port insertion loss. Also, FieldFox’s extended range transmission analysis (ERTA) option, is useful for measuring long, lossy in-situ cables.

Return loss/VSWR

Return loss (RL) or VSWR is the single most important parameter used to measure and verify a cable and antenna system. This measurement reflects the power transfer efficiency of a given system.

Distance-to-fault (DTF) and time-domain reflectometry (TDR)

DTF helps you determine the location and nature of discontinuities in feeder lines. For example, short, open, or water ingress. With FieldFox, you can make RL and DTF measurements at the same time. This helps you correlate overall system degradation with specific faults in the cable and antenna system. The built-in cable editor lets you edit existing cable types onsite and save them as new cable types with user-defined names.



CalReady-calibrated at power on and ready to go

Save time and get right to work with FieldFox’s CalReady feature. With CalReady, theanalyzer is already calibrated and ready to make measurements such as S11, S22, 1-port cable loss, and DTF/TDR measurements without having to connect and disconnect additional calibration devices.



Broadband calibration

FieldFox allows you to make broadband calibrations, which means the instrument is calibrated over the maximum frequency range. After a broadband calibration, you can change the frequency range or number of points without recalibrating the instrument. The calibration is interpolated, and accuracy is maintained.



Fast and accurate calibration with ECal

The FieldFox calibration engine supports Keysight’s USB ECal modules. ECal support reduces calibration time and the need to make multiple connections during testing, while also providing for greater consistency between measurements. For FieldFox users, that translates into fewer human errors and increased accuracy.



Spectrum Analyzer

In microwave, radar, satellite communications, and commercial microwave backhaul, you may be responsible for hardware installation and maintenance as well as over-the-air signal quality. This could require regular monitoring for unexpected signals and performing signal surveillance. FieldFox’s spectrum analyzer will excel in a dynamic spectral environment. You may face measurement challenges such as the need to detect a low-level signal under strong signal conditions (requiring high dynamic range), or close-in small interference signals (requiring excellent phase noise). FieldFox’s superior dynamic range (TOI +15 dBm), close in phase noise (-117 dBc/Hz at 10 kHz offset), and fast sweep time make these challenging tasks easier. FieldFox’s spectrum analyzer also provides a full power measurement suite and complete trace and state control.



FAQ:

1.Can you ship order to Canada or Australia ?

    Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

    We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

    100% T/T payment before shipment.

4. How can I ask any other question ?

    You can contact us online or leave us messages below.

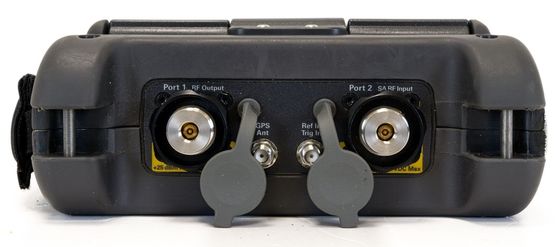

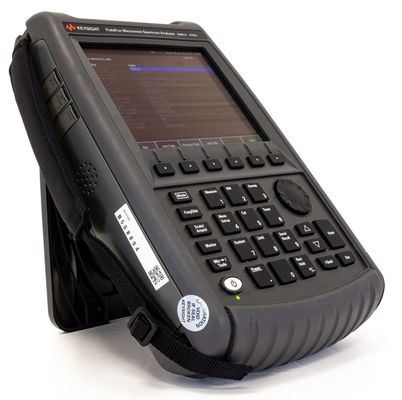

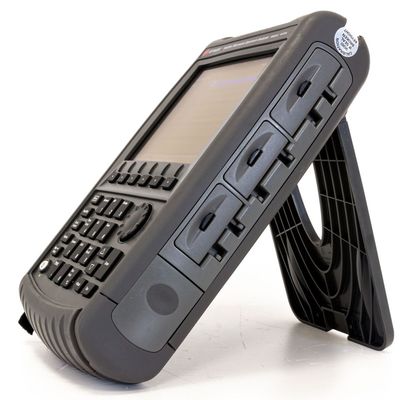

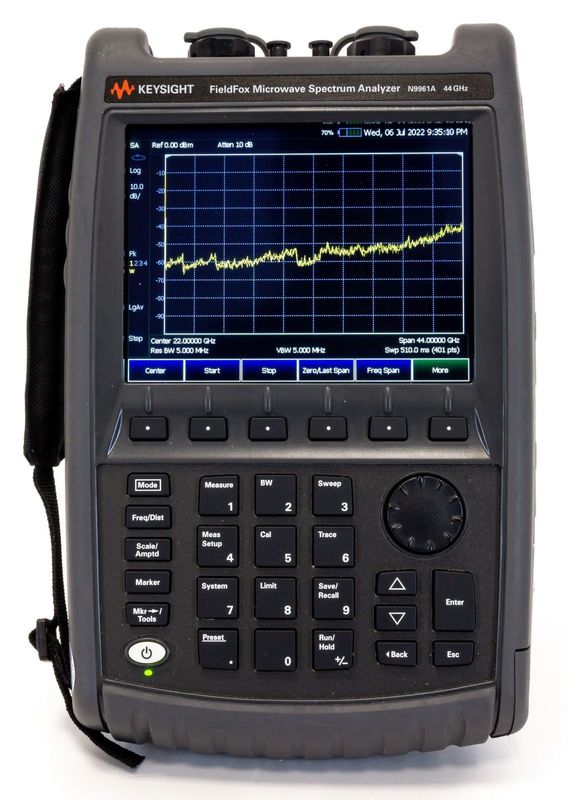

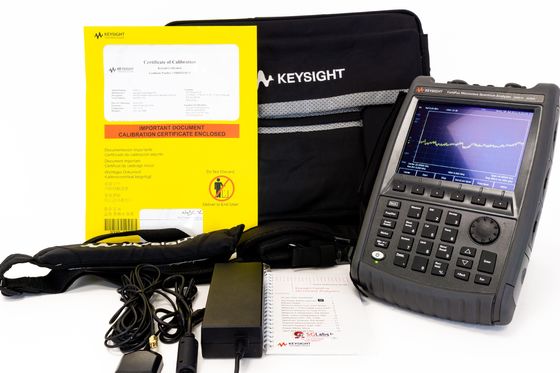

Portable Keysight N9961A FieldFox Handheld Microwave Spectrum Analyzer 44 GHz 0Portable Keysight N9961A FieldFox Handheld Microwave Spectrum Analyzer 44 GHz 1Portable Keysight N9961A FieldFox Handheld Microwave Spectrum Analyzer 44 GHz 2Portable Keysight N9961A FieldFox Handheld Microwave Spectrum Analyzer 44 GHz 3Portable Keysight N9961A FieldFox Handheld Microwave Spectrum Analyzer 44 GHz 4
