Tested In Full Condition Keysight Agilent E36103A DC Power Supply / 20V / 2A / 40W

Tested In Full Condition Keysight Agilent E36103A DC Power Supply / 20V / 2A / 40W

  • Tested In Full Condition Keysight Agilent E36103A DC Power Supply / 20V / 2A / 40W
  • Tested In Full Condition Keysight Agilent E36103A DC Power Supply / 20V / 2A / 40W
  • Tested In Full Condition Keysight Agilent E36103A DC Power Supply / 20V / 2A / 40W
  • Tested In Full Condition Keysight Agilent E36103A DC Power Supply / 20V / 2A / 40W
Tested In Full Condition Keysight Agilent E36103A DC Power Supply / 20V / 2A / 40W
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight (Agilent)
Certification: CNCS
Model Number: E36103A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: DC Power Supply Ripple & Noise (20 Hz To 20 MHz): Voltage Rms: 2 MV
Readback Accuracy: Voltage: 0.05% + 5 MV Condition: Pre-Owned
Functions: Tested, In Full Working Conditions
High Light:

Keysight Agilent E36103A DC Power Supply

,

40W DC Power Supply

,

2A DC Power Supply

Keysight E36103A DC Power Supply / 20V / 2A / 40W

Description of Keysight Agilent E36103A

Keysight E36100 Series basic DC power supplies feature a compact size (2U, ¼-rack), a high-contrast OLED display that is viewable from any angle, and modern USB and LAN (LXI Core) connectivity. They also include low power current measurement capability and overvoltage, overcurrent, and overtemperature protection. You can control these power supplies via the intuitive front-panel interface, a Web interface running on a browser, a SCPI or IVI program, Keysight IO Libraries, or a BenchVue app running on your PC or mobile device.



The E36100 Series is the latest addition to Keysight’s industry standard family of bench power supplies. Power your DUT with excellent voltage and current programming and readback accuracy. Use the power supply’s highly accurate low-current measurement feature for demanding measurements. Protect your DUT with built-in overvoltage and overcurrent protection, and count on the built-in overtemperature protection to keep your power supply safe.


Output rating (0 to 40 °C)

  • Voltage: 20 V
  • Current: 2 A
  • Power: 40 W

Programming accuracy

  • Voltage: 0.05% + 7 mV
  • Current: 0.05% + 1 mA

Ripple & noise (20 Hz to 20 MHz)

  • Voltage rms: 2 mV
  • Voltage peak-to-peak: 30 mV
  • Current rms: 1 mA

Readback Accuracy ± (% of output + offset)

  • Voltage: 0.05% + 5 mV
  • Current: 0.05% + 1 mA
  • Small Current:40 µA
  • Max Small Current:8 mA

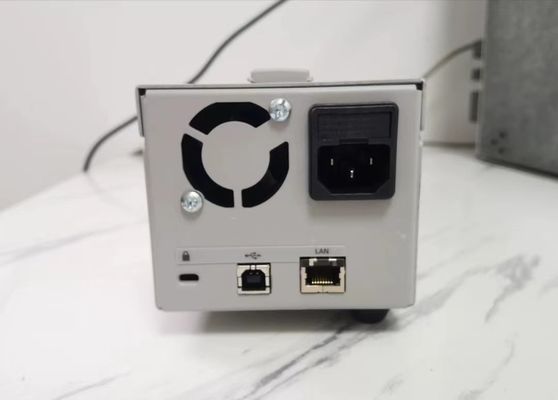

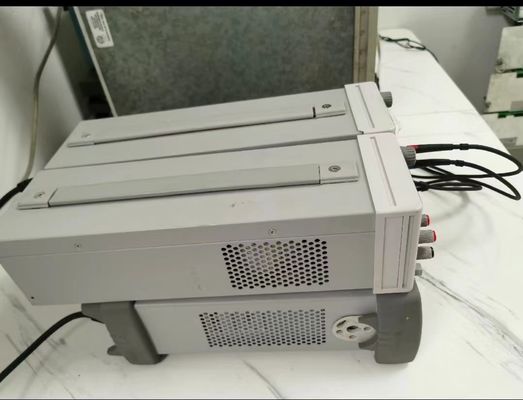

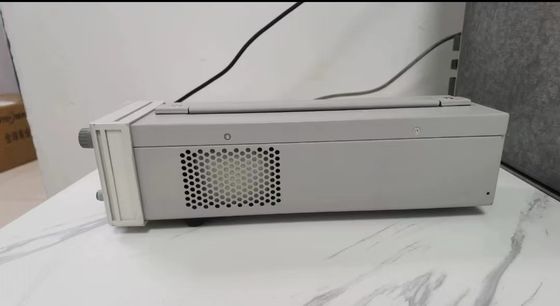

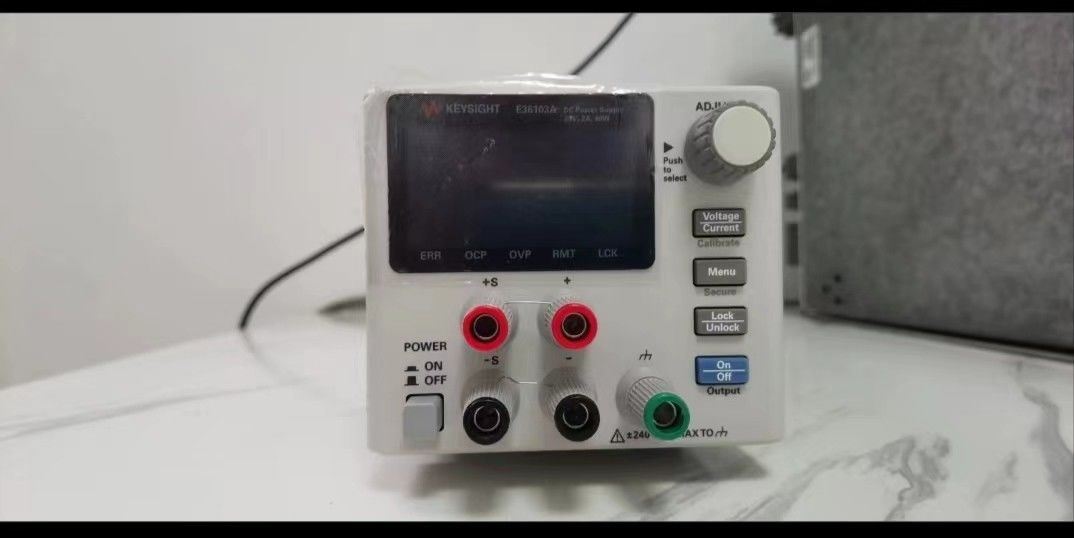

Tested In Full Condition Keysight Agilent E36103A DC Power Supply / 20V / 2A / 40W 0Tested In Full Condition Keysight Agilent E36103A DC Power Supply / 20V / 2A / 40W 1Tested In Full Condition Keysight Agilent E36103A DC Power Supply / 20V / 2A / 40W 2
