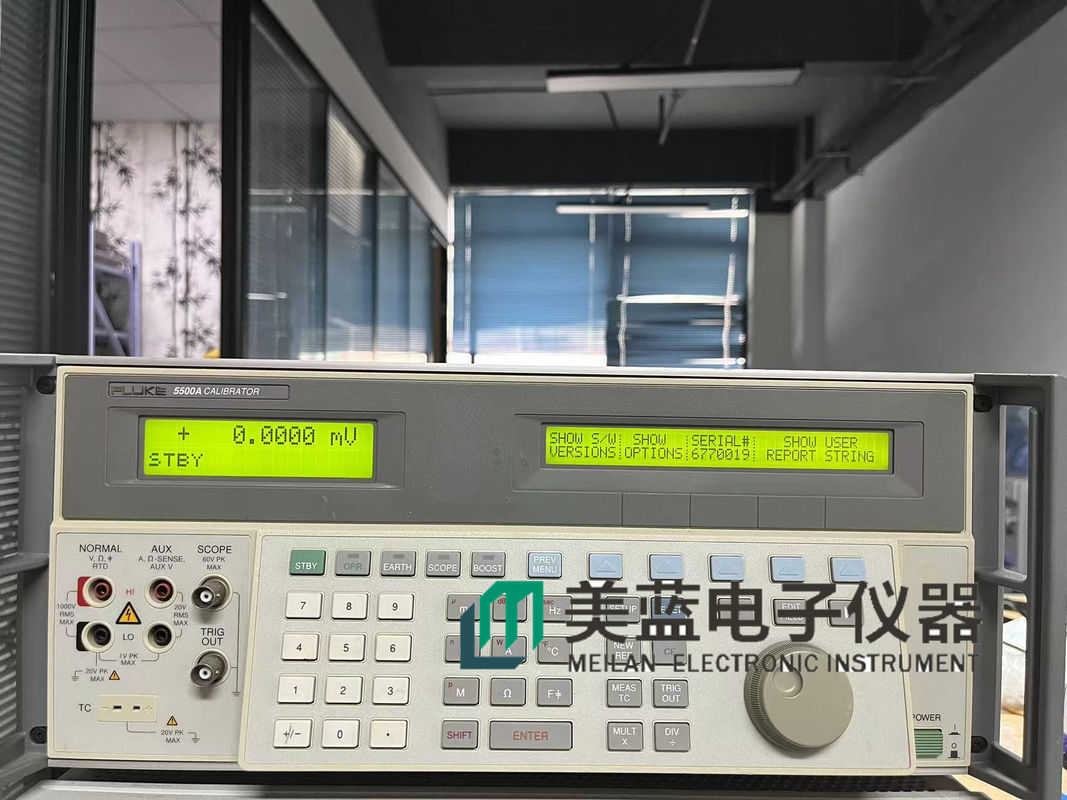

Fluke 5500A Multi Product Calibrator with 600 MHz Oscilloscope Calibration and Wide Range Pre-Owned Bench Multimeter

The Fluke 5500A Multi Product Calibrator is a revolutionary instrument designed to address a wide cross-section of electrical calibration workloads. It sources direct voltage and current, alternating voltage and current with multiple waveforms and harmonics, two simultaneous voltage outputs or voltage and current, and simulates power with phase control, resistance, capacitance, thermocouples and RTDs.

The 5500A's Oscilloscope Calibration options provide level sine wave, fast edge, time mark and amplitude signals for calibration of oscilloscopes up to 600 MHz.

The 5500A was designed to cover a very wide range of medium accuracy electrical measurement devices including:

• Handheld and bench multimeters
• Oscilloscopes and ScopeMeter® Test Tools
• Wattmeters
• Analog volt/ohm/amp/watt instruments
• Electronic thermometers
• Data loggers
• Strip chart recorders
• XY Recorders
• Power Harmonic Analyzers
• Process calibrators
• Current clamps
• And related instruments

• DC voltage range: 0 - 1100V
• DC current range: 0 - 11A
• Resistance range: 0 - 330 MOhm
• AC voltage range: 1.0mV - 1000V
• AC current range: 0.033mA - 11A
• Capacitance range: 0.33nf - 1.1mf

The 5500A Calibrator may be operated at the front panel in the local mode, or remotely using RS-232 or IEEE-488 ports. For remote operations, several software options are available to integrate 5500A operation into a wide variety of calibration requirements.

Typical local operations include front panel connections to the Unit Under Test (UUT), and then manual keystroke entries at the front panel to place the calibrator in the desired output mode. The front panel layout facilitates hand movements from left to right, and multiply and divide keys make it easy to step up or down at the press of a single key.

The backlit liquid crystal display is easy to read from many different viewing angles and lighting conditions, and the large, easy-to-read keys are color-coded and provide tactile feedback when they are pressed.
