Recycle Fluke 5720A Precision Multi Function Calibrator Wideband Output

Name: Recycle Fluke 5720A Precision Multi Function Calibrator Wideband Output
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: 5720A
Availability: InStock

Brand Name:	Fluke
Model Number:	5720A
MOQ:	1 set
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Product Name:

Precision Multifunction Calibrator

Calibration Information:

Rental:

Support

Repair:

Support

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Highlight:

Wideband Output Multi Function Calibrator

Wideband Output Precision Calibrator

Recycle Multi Function Calibrator

Product Description

Recycle Fluke 5720A Precision Multifunction Calibrator Wideband Output

Description of Fluke 5720A (Recycle)

The 5700A and 5720A are five-function calibrators designed to address the most demanding electrical calibration workload. They source direct and alternating voltage and current and resistance. A wideband voltage option extends overall ac bandwidth to 10 Hz to 30 MHz to cover to RF voltmeters. Both are compatible with the 5725A, and 5205A/5215A amplifiers.

Overview and Features of 5720A Precision Multifunction Calibrator

Minimum output: 0V for all ranges, except 100V for 1100V range

Maximum load: 50 mA for 2.2V through 220V ranges; 20 mA for 1100V range; 50Ω output impedance on 220 mV range; all ranges <1000 pF, >25Ω

Load regulation: <0.2 ppm + 0.2 mV change, full load to no load

Line regulation: <0.1 ppm change, ±10% of selected nominal line

Settling time: 3 seconds to full accuracy; + 1 second for range or polarity change; + 1 second for 1100V range

Overshoot: <5%

Common mode rejection: 140 dB, DC to 400 Hz

Remote sensing: Available 0V to ±1100V, on 2.2V through 1100V ranges

Additional operating information:

dBm reference = 50Ω

Range boundaries are at voltage points, dBm levels are approximate

dBm = 10 log by: ( Power ) ; 0.22361V across 50Ω = 1 mW or 0 dBm

Minimum output: 300 µV (-57 dBm)

Frequency uncertainty: ±0.01%

Frequency resolution: 11,999 counts to 1.1999 MHz, 119 counts to 30 MHz

Overload protection: A short circuit on the wideband output will not result in damage. After settling time, normal operation is restored upon removal.

Warm-up time: 2x the time since last warmed up, to a maximum of 30 minutes

System installation: Rear output configuration and rack-mount kit available

Standard interfaces: IEEE-488, RS-232, 5725A, 5205A or 5215A, 5220A, phase lock in (BNC), phase reference out (BNC)

Temperature performance:

Operating: 0°C to 50°C

Calibration: 15°C to 35°C

Storage: -40°C to 75°C

Relative humidity: Operating: <80% to 30°C, <70% to 40°C, <40% to 50°C Storage: <95%, non-condensing. A power-on stabilization period of four days may be required after extended storage at high temperature and humidity.

Safety: Designed to comply with UL311; IEC 348- 1978; IEC 66E (CO) 4; CSA 556B

Guard isolation: 20 volts

EMI/RFI: Designed to comply with FCC Rules Part 15, Subpart J, Class B; VDE 0871, Class B

Line power: 47 to 63 Hz; ±10% allowed about selectable nominal line voltage: 100V, 110V, 115V, 120V, 200V, 220V, 230V, 240V Maximum power: 5700A/5720A: 300VA; 5725A, 750VA

Size: 5700A/5720A: Height 17.8 cm, (7 in), standard rack increment, plus 1.5 cm (0.6 in) for feet; width 43.2 cm (17 in), standard rack width; depth 63.0 cm (24.8 in), overall; 57.8 cm (22.7 in), rack depth 5725A: Height 13.3 cm, (5.25 in); width and depth same as 5700A/5720A Both units project 5.1 cm, (2 in) from rack front

Weight: 5700A/5720A: 27kg (62 lbs) 5725A: 32 kg (70 lbs)

List of Options Recycle 5720A

03	Wideband Output

Y5735	5.25" RACKMOUNT ADAPTER

We We recycle and trade in used test equipment. Spectrum Analyzers, Network Analyzers, Signal Generators, Calibrators, Multimeter, Oscilloscope and many other types. Recycle

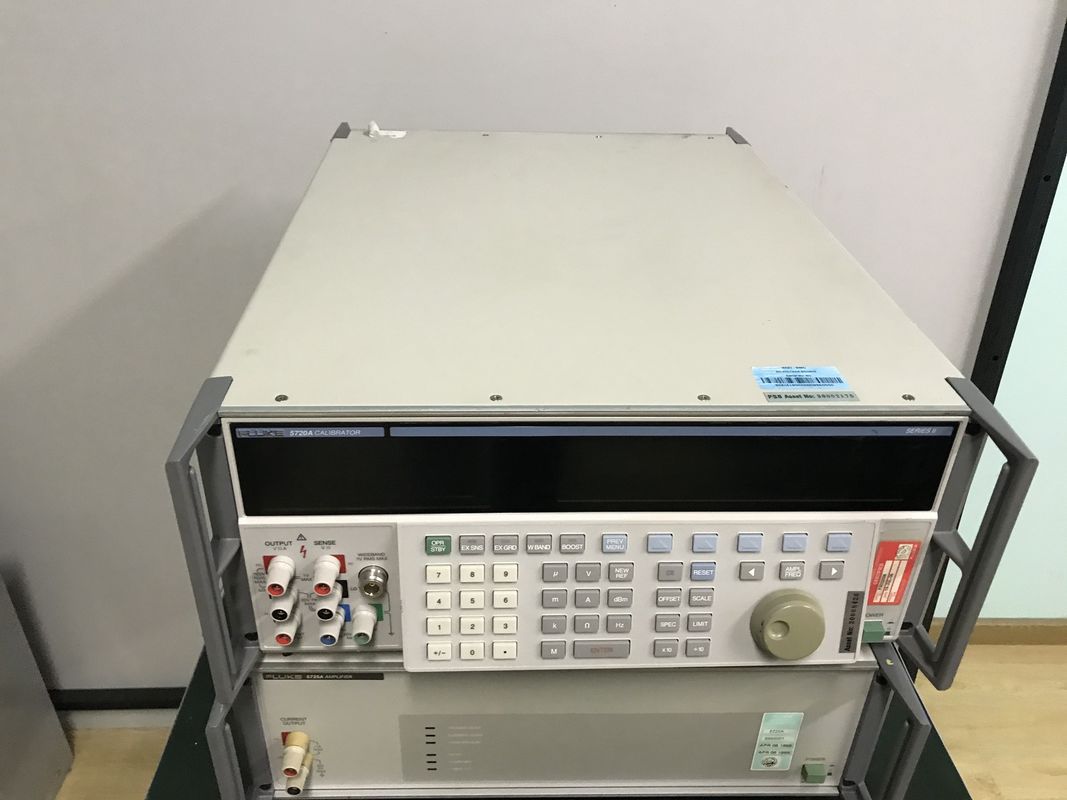

Recycle Fluke 5720A Precision Multi Function Calibrator Wideband Output 1

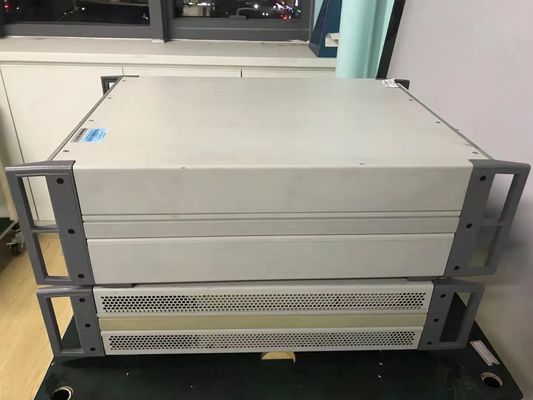

Recycle Fluke 5720A Precision Multi Function Calibrator Wideband Output 2

Recycle Fluke 5720A Precision Multi Function Calibrator Wideband Output 3
