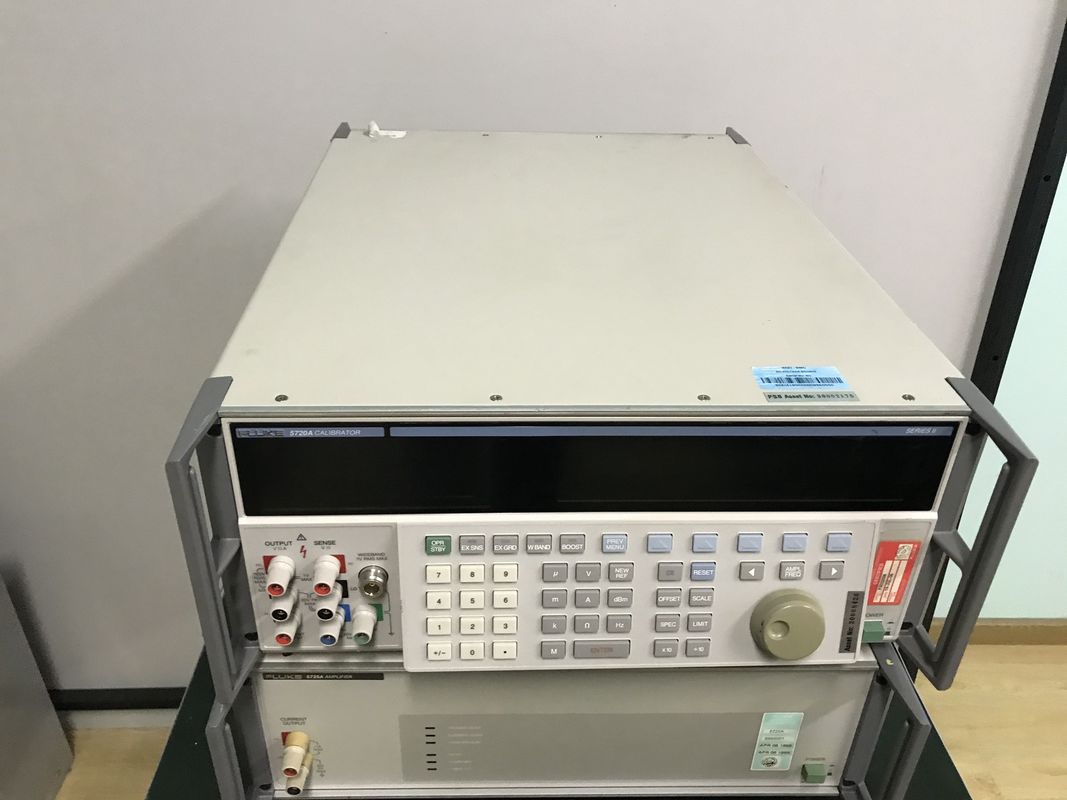

Fluke 5720A Precision Multifunction Calibrator with Wideband Output and Five-Function Calibration up to 30 MHz AC Bandwidth

Name: Fluke 5720A Precision Multifunction Calibrator with Wideband Output and Five-Function Calibration up to 30 MHz AC Bandwidth
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: 5720A
Availability: InStock

Brand Name:	Fluke
Model Number:	5720A
MOQ:	1 set
Payment Terms:	T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Product Name:

Precision Multifunction Calibrator

Calibration Information:

Rental:

Support

Repair:

Support

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Highlight:

Wideband Output Multi Function Calibrator

Wideband Output Precision Calibrator

Recycle Multi Function Calibrator

Product Description

Recycle Fluke 5720A Precision Multi Function Calibrator Wideband Output

Product Overview

The Fluke 5720A Precision Multifunction Calibrator is a five-function calibrator designed to handle demanding electrical calibration workloads. This recycled unit sources direct and alternating voltage and current, plus resistance. The wideband voltage option extends overall AC bandwidth from 10 Hz to 30 MHz to cover RF voltmeters. Compatible with 5725A and 5205A/5215A amplifiers.

Key Specifications

Minimum Output: 0V for all ranges (except 100V for 1100V range)
Maximum Load: 50 mA for 2.2V through 220V ranges; 20 mA for 1100V range
Load Regulation: <0.2 ppm + 0.2 mV change, full load to no load
Line Regulation: <0.1 ppm change, ±10% of selected nominal line
Settling Time: 3 seconds to full accuracy; +1 second for range or polarity change
Overshoot: <5%
Common Mode Rejection: 140 dB, DC to 400 Hz
Remote Sensing: Available 0V to ±1100V, on 2.2V through 1100V ranges

Wideband Output Details

dBm Reference: 50Ω
Minimum Output: 300 µV (-57 dBm)
Frequency Uncertainty: ±0.01%
Frequency Resolution: 11,999 counts to 1.1999 MHz, 119 counts to 30 MHz
Overload Protection: Short circuit protection with automatic recovery

Environmental Specifications

Operating Temperature: 0°C to 50°C
Calibration Temperature: 15°C to 35°C
Storage Temperature: -40°C to 75°C
Relative Humidity: <80% to 30°C, <70% to 40°C, <40% to 50°C
Warm-up Time: 2x time since last warmed up (max 30 minutes)

Physical Specifications

Dimensions: 17.8 cm H × 43.2 cm W × 63.0 cm D (7" × 17" × 24.8")
Weight: 27 kg (62 lbs)
Power Requirements: 47-63 Hz; selectable nominal voltages: 100V, 110V, 115V, 120V, 200V, 220V, 230V, 240V
Maximum Power: 300VA

Available Options

Option Code	Description
03	Wideband Output
Y5735	5.25" Rackmount Adapter

Additional Images

We recycle and trade in used test equipment including Spectrum Analyzers, Network Analyzers, Signal Generators, Calibrators, Multimeters, Oscilloscopes and many other types.
