Used Anritsu MS4647A Network Analyzer 10 MHz To 70 GHz Calibrated

Used Anritsu MS4647A Network Analyzer 10 MHz To 70 GHz Calibrated

  • Used Anritsu MS4647A Network Analyzer 10 MHz To 70 GHz Calibrated
Used Anritsu MS4647A Network Analyzer 10 MHz To 70 GHz Calibrated
Product Details:
Place of Origin: USA
Brand Name: Anritsu
Certification: CNAS
Model Number: MS4647A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Vector Network Analyzer (VNA) Frequency: 10 MHz To 70 GHz
Form Factor: Benchtop Type: Vector Network Analyzer (VNA)
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Anritsu MS4647A

,

Anritsu MS4647A Network Analyzer

,

10 MHz To 70 GHz Network Analyzer

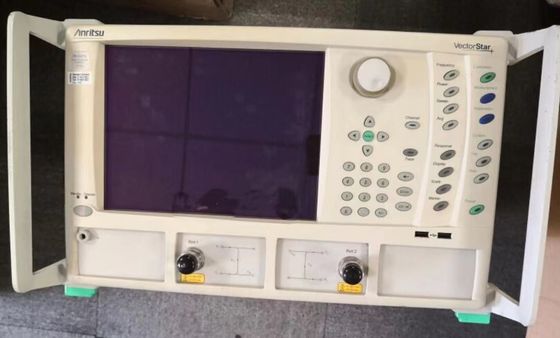

Used Anritsu MS4647A Network Analyzer 10 MHz to 70 GHz calibrated
Description of Anritsu MS4647A:

The Anritsu MS4647A VectorStar VNA offers a new performance benchmark for S-parameter measurements of RF, Microwave, and Millimeter wave devices. In a single setup you can capture and display the S-parameter performance of a device across the frequency of interest, the match at a specific location using time domain with maximum 70 GHz bandwidth resolution, and the gated performance at a specific location within the device. At the same time, zoom in on narrow bands of interest and perform additional analysis such as group delay and frequency response.

The VectorStar incorporates a powerful microprocessor and a custom DSP high speed data link to quickly transfer the data. Additionally, its use of direct memory access and deep memory buffers not only achieves fast frequency stepping, but also stores and manipulates vast amounts of data. The VectorStar VNA optimizes broadband dynamic range performance by utilizing harmonic sampler architecture and including Non Linear Transmission Line (NLTL) technology, also known as shock-line transmission. This technique, incorporating Anritsu patents, substantially minimizes the harmonic N roll-off and thereby provides the widest possible dynamic range at high frequencies. Integrate the VectorStar with probe stations from leading probe manufacturers for making accurate on-wafer measurements in both microwave and millimeter-wave bands. Compatibility with calibration software enables fast automated calibrations for accurate measurements of discrete FETs, MMICs, passive components, and others.



Specifications for the ANRITSU MS4647A Vector Network Analyzer Include:

  • Frequency Range 10 MHz to 70 GHz
  • Dynamic Range up to 140dB
  • Output Power +13dBm

Features:

  • Broadest frequency span from a single coaxial test port covering 70 kHz to 70 GHz in a single instrument and 70 kHz to 110 GHz in the Broadband configuration
  • Fastest swept synthesized measurement speed < 20 µsec per point
  • Superior Dynamic Range – up to 140dB
  • High available power – up to +13dBm
  • Best test port characteristic performance – up to 50dB in Directivity, Source Match and Load Match Most convenient automatic calibration system with best accuracy
  • Highest data resolution utilizing 100,000 points for maximum flexibility
  • Best device modeling data Best time domain analysis

Options

Option Description
002 Time Domain with advanced capabilities
007 Receiver Offset with Multiple Source Control for frequency-translated measurements
041 Noise Figure
05x Direct Access Loops for total measurement flexibility
06x Active Measurement Suites with 2 or 4 attenuators
070 70 kHz Low-end Frequency Extension for an unprecedented frequency coverage
080 Milllimeter Wave Interface
081 Millimeter Wave Interface (For MS4647A units ordered with Options 51, 61 or 62)
MN4697A 4-port Test Sets, K and V for 40 MHz to 70 GHz multi-port solutions
