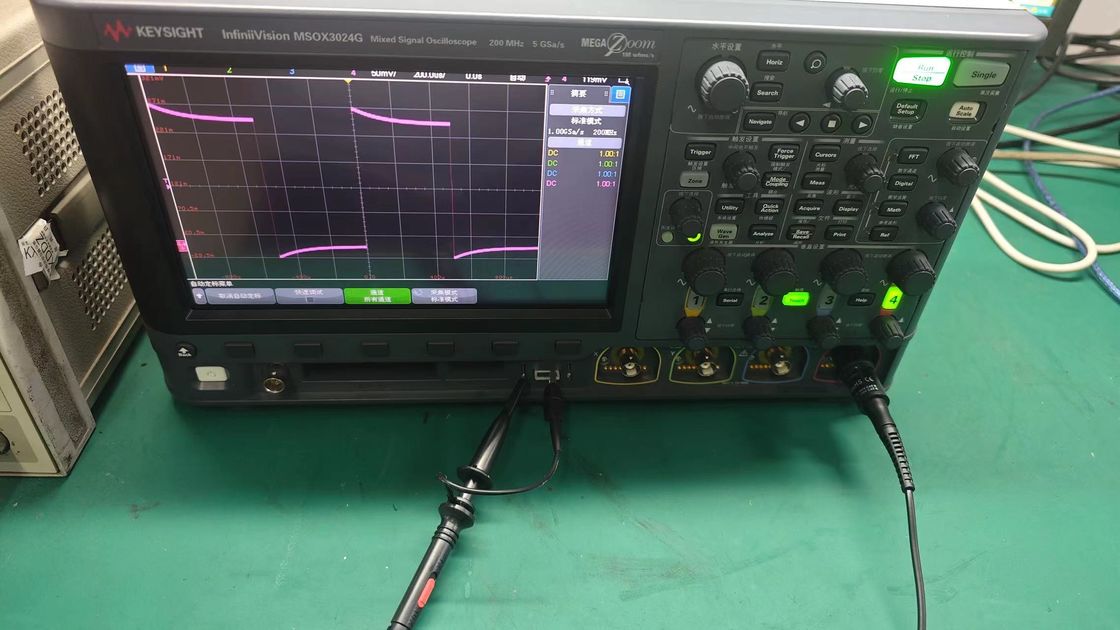

Keysight MSOX3024G Mixed Signal Oscilloscope 200 MHz 4 Analog Plus 16 Digital Channels

Keysight MSOX3024G Mixed Signal Oscilloscope 200 MHz 4 Analog Plus 16 Digital Channels

  • Keysight MSOX3024G Mixed Signal Oscilloscope 200 MHz 4 Analog Plus 16 Digital Channels
  • Keysight MSOX3024G Mixed Signal Oscilloscope 200 MHz 4 Analog Plus 16 Digital Channels
  • Keysight MSOX3024G Mixed Signal Oscilloscope 200 MHz 4 Analog Plus 16 Digital Channels
  • Keysight MSOX3024G Mixed Signal Oscilloscope 200 MHz 4 Analog Plus 16 Digital Channels
  • Keysight MSOX3024G Mixed Signal Oscilloscope 200 MHz 4 Analog Plus 16 Digital Channels
Keysight MSOX3024G Mixed Signal Oscilloscope 200 MHz 4 Analog Plus 16 Digital Channels
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight
Model Number: MSOX3024G
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
Channel: 4 Analog Plus 16 Digital Channels Bandwidth: 200 MHz
High Light:

MSOX3024G

,

MSOX3024G Mixed Signal Oscilloscope

,

200 MHz Mixed Signal Oscilloscope

Keysight Agilent MSOX3024G Mixed Signal Oscilloscope 200 MHz 4 Analog Plus 16 Digital Channels
Description of Keysight Agilent MSOX3024G

The MSOX3024G 200 MHz oscilloscope provides 4 analog plus 16 digital channels, 4 Mpts memory, 1,000,000 waveforms/sec update rate, zone touch trigger with an 8.5-in capacitive touch screen, and standard embedded software with waveform and measurement histograms.

Highlights

  • 200 MHz
  • 4 analog plus 16 digital channels
  • Easily view and analyze your signals with on the large 8.5-inch capacitive touch screen
  • Isolate signals in seconds with exclusive zone touch triggering
  • See more signal detail with the 1,000,000 wfms/s update rate
  • Capture more data with up to 4 Mpts memory
  • Expand your measurement capabilities with full upgradability: add bandwidth and advanced application software at any time

What's included:



  • Embedded Software Package (D3000GENB)
  • PathWave BenchVue Oscilloscope Software (BV004B)
  • Waveform and measurement histograms
  • Instrument integration: oscilloscope (with LAN / VGA connectivity module), protocol analyzer, frequency response analyzer (Bode plots), 20 MHz arbitrary waveform generator, 3-digit voltmeter, 8-digital counter and totalizer, and mixed-signal oscilloscope for 16 digital channels
  • N2843A passive probe: 500 MHz, 10:1 attenuation (1 per channel)
  • N2756A 16 digital channel MSO cable
  • Factory 3-year warranty (90 days for unserialized accessories such as passive probes)
  • KeysightCare technical support
  • Certificate of calibration, 3-year calibration interval
  • Secure erase
  • Multi-language interface and help: English, Chinese (simplified), Chinese (traditional), Czech, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Polish, Thai, Turkish
  • Documentation CD containing localized user’s guide, service guide, and programmer’s manual
  • Localized power cord and overlay
MSOX3024G is an InfiniiVision 3000G X-Series mixed signal oscilloscope (MSO). With the best in usability, a comprehensive front panel with quick access buttons, easy-to-use touch operation or mouse-based control through direct connection or web-based UI, the InfiniiVision 3000G X-series oscilloscope enables to work in whatever way is best for you.
  • 4 + 16 input channels, 200MHz bandwidth
  • 8.5inch capacitive touch screen/gesture enabled TFT LCD
  • Calculated rise time (10 to 90%) is ≤ 1.75ns
  • Powerful triggering and decoding serial buses including I2C, SPI, UART/RS232/RS485, I2S and USB-PD
  • High performance mask and measurement limit testing enabled in hardware
  • Frequency response analysis (bode plots)
  • Waveform & measurement histograms
  • Built-in function/arbitrary waveform generator
  • HDTV video analysis and LAN/VGA I/O communication
  • PathWave BenchVue oscilloscope software for control, automation and offline analysis



Type of oscilloscope
mixed signal
Kind of oscilloscope
MSO
Number of channels
4
Band
200MHz
Sampling
5Gsps
Memory record length
4Mpts
Kind of display used
LCD 8,5"
Trigger modes
automatic, normal, single
Trigger
falling-edge, impulse width, risetime, rising-edge, runt, video signal
Trigger source
CH1, CH2, external signal, supply voltage source
Time base
2n...50s/div
Max. input voltage
190V
Vertical resolution
8bit
Input coupling
AC, DC
Trigger coupling
AC, DC, highpass, lowpass
Information
Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Manufacturer series
InfiniiVision 3000G X-SERIES
Rise time
≤1.75ns
Input impedance
1MΩ/14pF
Input sensitivity
1mV/div...5V/div
Additional functions
arbitrary waveform generator
Operating temperature
5...50°C
Body dimensions
381x204x142mm
Related items
D3000AERB, D3000AUTB, D3000BDLB, D3000PWRB, D3000USBB, DP0010A, DP0012A, N2750A, N2870A
Display resolution
800x480
Touchpad
yes

Show similar products (0)
Interface

I2C
I2S
NFC
RS232
RS422
RS485
SPI
USB

Measuring instrument features
16 digital channels
automatic measurement of many parameters
mathematical functions: addition, subtraction, multiplication and FFT
multilanguage menu
Y-T, X-Y, ROLL operation mode

Standard equipment
calibration certificate
CD with documentation
mains cable
oscilloscope probe x4

Supply voltage
100...240V AC
Gross weight 6000 g
