Fluke 8846A 6.5 Digit Precision Multimeter

Description of Fluke 8846A

The Fluke 8846A 6.5 digit precision multimeter has the precision and versatility to handle your most demanding measurements, on the bench or in a system. This meter is high performance and feature rich, yet also remarkably easy to use. This digital multimeter perform the functions you would expect to see in a multifunction DMM, including measuring volts, ohms, and amps. Basic V dc accuracy of up to 0.0024 %, 10 A current range, and a wide ohms range give you an unbeatable combination of measurement capability. You can also use the 8846A to measure frequency and period, temperature and capacitance. The functions of a counter, capacitance meter, and thermometer are built in for unparalleled versatility. Extend the meters’ utility even more with their graphical display modes, including TrendplotTM paperless recorder mode, statistics and histograms—features you won’t find on other multimeters. Of course, this meter is also durable and dependable, features you expect from any Fluke meter. This unique combination of features and performance makes the 8846A an unbeatable value for a wide variety of applications, including manufacturing test, research and development, and service.

Fluke 8846A Key Features and Performance

• 6.5 digit resolution
• Wide ohms range from 10 O to 1 GO with up to 10 µO resolution
• Dual display
• USB memory drive port
• Basic V dc accuracy of up to 0.0024 %
• 100 µA to 10 A current range, with up to 100 pA resolution
• Graphical display
• 2 x 4 ohms 4-wire measurement technique
• CAT I 1000 V, CAT II 600 V
• Trendplot™ paperless recorder mode, statistics, histogram
• Fluke 45 and Agilent 34401A emulation
• Measure frequency and period, capacitance and temperature

Fluke 8846A 6.5 digit Precision Multimeter, 24 ppm USB mem
Includes:

• LCI Line Cord
• TL71 Test Lead Set, Premium DMM
• WEEE Information Sheet
• USB to RS232 Cable Adapter
• Statement of Calibration Practices
• FlukeView Forms – Basic for 8845/8846
• Warranty Information

List of Options

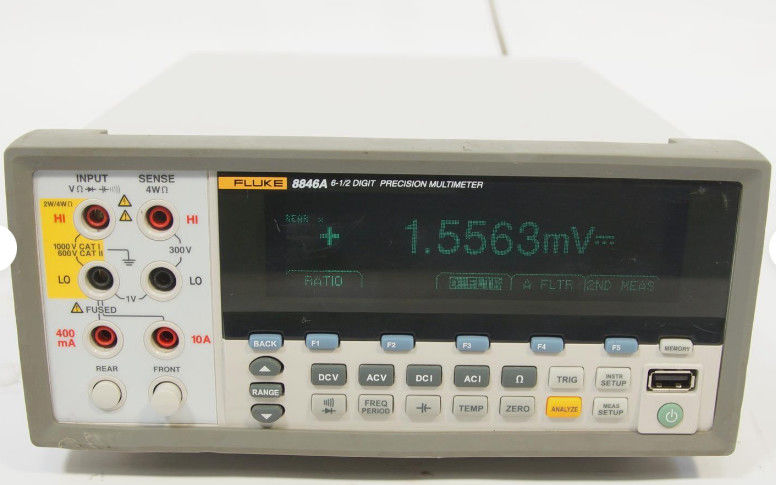

Fluke 8846A Feature Callouts

A. Input HI and LO connectors. Input connectors for Volts, 2-wire Ohms, Hz, Period, Temperature, and Capacitance measurements. Input connectors source current for 4-wire Ohms measurements. All measurements use the Input LO connector as a common input. The LO input is isolated, and may be safely floated up to 1000 V above earth ground regardless of the measurement type. 1000 V is the maximum voltage rating between the Input HI and LO connectors and between each HI and LO input and earth ground.

B. Sense HI and LO connectors. Sense connectors sense the voltage across the unknown resistance for 4-wire Ohms measurements or provide the DCV reference Input for DCV Ratio measurements.

C. Soft keys F1 through F5. Soft keys are used to select various menu options while navigating the Meter’s menus. Each soft key’s function is identified with a label in the bottom row of the display. Keys without a label above them are inactive

D. Memory key for accessing internal and external memory [1] containing meter setups and measurements. See the “Accessing and Controlling Memory” section for more information.

E. USB Port. [1] Connection for optional memory device to store meter readings

F. Standby key to turn off the display. While in standby, the Meter will not respond to remote or front-panel commands. When taken out of standby, the Meter sets itself to its power-up configuration

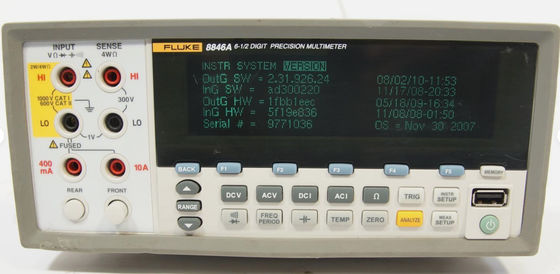

G. Instrument Setup key. Accesses communication interface selection and setup, remote command set, system settings, and meter reset.

H. Measurement Setup key. Accesses to resolution setting, trigger functions, temperature setup, dBm reference selection, continuity settings, and other measurement related parameters.

I.Trigger key. Triggers measurement when trigger is set to external triggering. See the “Controlling Trigger Functions” section later in this chapter to learn how to use the trigger key (TRIG) to control the Meter’s measurement cycle.

J. Analyze key. Accesses math functions, Statistics, TrendPlot, and Histogram.

K. Zero key. Uses the present reading as an offset value to create relative readings.

L. Meter function keys. Selects meter function between volts dc, volts ac, amp dc, amps ac, ohms, continuity, diode test,

frequency, period, capacitance [1], and temperature [1]. For the 8845A, the lower four keys select different functions; see inset.

M. Range keys. Selects between manual and auto range mode. Also increases or decreases the range when in manual ranging mode.

N. Back key. Backs up one layer in the menu selection.

O. Front and Rear input switch. All front-panel input connectors, except 10 A, are available on the rear-panel of the Meter. These switches switch the Meter’s input between them.

P 400 mA and 10 A input connectors for ac and dc current measurement functions.

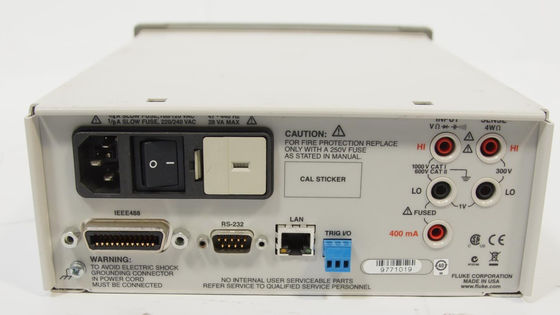

A Line Power Cord connector

B Power Switch

C Fuse holder and power line voltage selector

D Rear-panel input connectors[1]

E External trigger input and measurement complete output port

F Ethernet (LAN) connector

G RS-232 connector. See appendix C for signals available on this connector.

H IEEE 488 (GPIB) connector

I Ground connector
