AC DC Variable Power Supply
Created with Pixso. Keysight Agilent N6762A DC Power Supply 50V 3A 100W Programmable Precise Control

Keysight Agilent N6762A DC Power Supply 50V 3A 100W Programmable Precise Control

Brand Name: Keysight (Agilent)
Model Number: E3643A
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Detail Information
Place of Origin:
Malaysia
Certification:
CE
Product Name:
DC Power Supply
Ripple & Noise:
Ripple & Noise 20 Hz To 20 MHz
Normal Mode Voltage::
<8 MVpp / 1 MVrms
Normal Mode Current::
<4 MArms
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
Packaging Details:
Carton
Supply Ability:
in stock
Highlight:

Keysight N6762A

,

N6762A DC Power Supply

Product Description

Keysight (Agilent) N6762A DC Power Supply, 50 V, 3 A, 100 W, Programmable

Description of Keysight Agilent N6762A

The Agilent N6762A is a 100 W precision DC power module that provides low noise, and precise control and measurements in the milliampere and microampere region with the ability to simultaneously digitize voltage and current, and capture those measurements in an oscilloscope-like data buffer. For leakage current or sleep-mode current measurements, add option 2UA for measurement capability down to 1 µA.

This module is used in both the small, multiple output 1U high N6700 Low-Profile Modular Power System (for ATE systems) and the multiple output N6705 DC Power Analyzer (for bench testing). GPIB, LAN, USB, and LXI Class C compliance are standard. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20 - 300 W.



Output Ratings

  • Voltage: 50 V
  • Current: 3 A
  • Power: 100 W

Programming Accuracy (at 23°C ±5°C)

  • Voltage high range: 0.016% + 6 mV
  • Voltage low range (= 5.5 V): 0.016% + 1.5 mV
  • Current high range: 0.04% + 200 µA
  • Current low range (= 100 mA, @ 0 - 7 V): 0.04% + 15 µA

Ripple & Noise (20 Hz to 20 MHz)

  • Voltage peak-to-peak: 4.5 mV
  • Voltage rms: 350 µV
  • Current rms: 2 mA



List of Options for N6762A
1A7 Certificate of calibration - ISO 17025, printed
1UA 1uA Current Measurement System With Output Disconnect Relays
2UA 200uA Current Measurement Range With Output Disconnect Relays
761 Output Disconnect Relays
908 Rack Mount Kit
A6J Certificate of calibration - ANSI/NCSL Z540, printed
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-C Return to Agilent Warranty - 1 year
UK6 Commercial calibration certificate with test data included



Specifications & Attributes for N6762A(DC Power Supplies)
Form Factor
Benchtop
Rackmount ( /908 )
Connectivity
GPIB
LAN
LXI Compliant
USB
Current
3 A
Power
100 W
Type
SWITCHING
Voltage
50 V

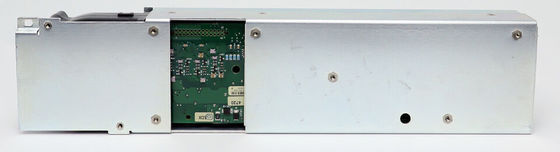

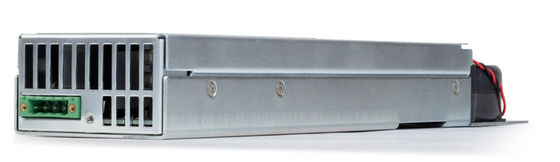

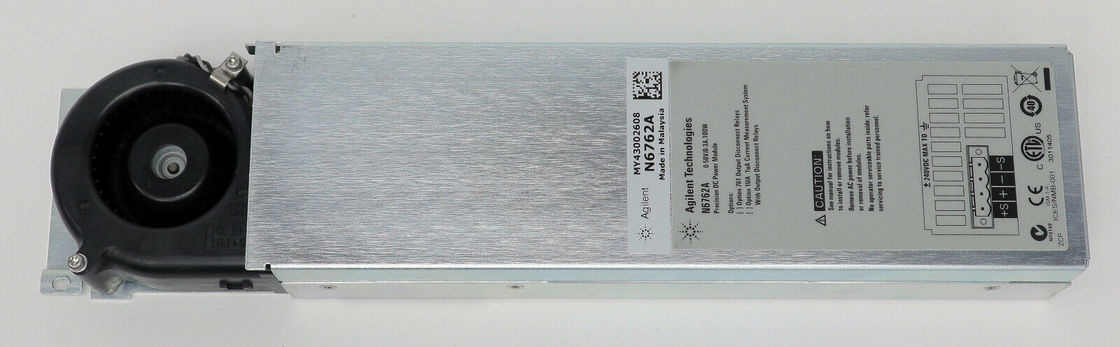

Keysight Agilent N6762A DC Power Supply 50V 3A 100W Programmable Precise Control 0Keysight Agilent N6762A DC Power Supply 50V 3A 100W Programmable Precise Control 1Keysight Agilent N6762A DC Power Supply 50V 3A 100W Programmable Precise Control 2
