| Brand Name: | Tek |
| Model Number: | ADA400A |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |
TEKTRONIX ADA400A DIFFERENTIAL PREAMPLIFIER 10 μV/div SENSITIVITY TESTED
Description of Keysight Agilent ADA400A
The Tektronix ADA400A Differential Preamplifier allows direct oscilloscope measurements of very low amplitude voltages and signals which are not ground referenced. The high impedance of both inputs eliminates the need to add additional ground points in the DUT, thereby avoiding circulating currents which disturb the measurement or the circuit. The high gain and extremely high common mode rejection provide usable measurements of voltages as low as 5 V, even in high noise environments. Selectable bandwidth limiting reduces normal mode noise from digital logic, switch mode power supplies and line frequency sources. Adjustable differential offset allows the user to null out transducer bridge bias and galvanic potential from the test setup. An "infinite impedance" mode can be selected in the two highest gain ranges allowing accurate measurements of signals with high source impedance.
Features of Keysight Agilent ADA400A:
CMRR: ≥100,000: 1 DC - 10 kHz
SIGNAL RANGES
| Gain setting | Common Mode signal range | Differential signal range 1 | Max offset |
| 100x | ±10 V | 0.1V | ±1.0 V |
| 10x | ±10 V | 1V | ±1.0 V |
| 1X | ±40 V | 10V | ±40 V |
| 0.1X | ±40 V | 80V | ±40 V |
1 For higher voltages, attenuating probes may be used, but CMRR performance will be degraded.
Bandwidth limits: 100 Hz, 3 kHz, 100 kHz, full (≥1 MHz)
Input impedance: 1 MΩ || ~ 55 pF (infinity Ω selectable in 100x and 10x gains)
Noise: Typically ≤30 μVRMS at 100x gain (referred to input)
The following components are included in this sale:
1- Tektronix ADA400A
Cosmetic Notes:
The unit is in Very good cosmetic condition.

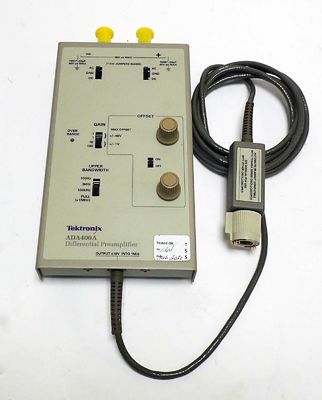

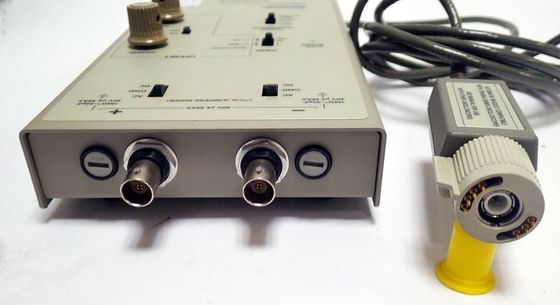

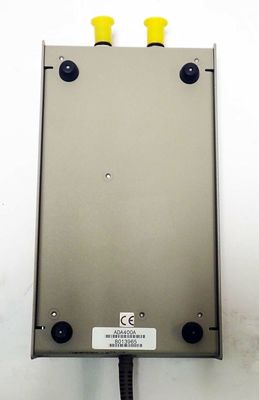

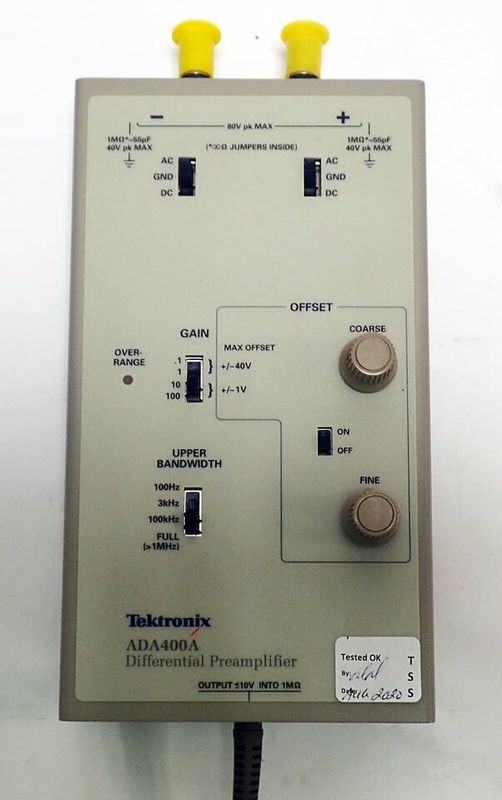

We have more than one, so you may not get the exact item pictured, but they are all in similar cosmetic condition.
| C3 | CALIBRATION SERVICE 3 YRS. PROVIDES TRACEABLE OR FUNCTIONAL VERIFICATION EVENTS WHICHEVER ARE APPLICABLE TO THE PRODUCT. CALS ARE AT TEKTRONIX RECOMMENDED INTERVAL DURING THE COVERAGE PERIOD. CAL COVERAGE INCLUDES THE MANUFACTURERS CAL + 2 |
| C5 | CALIBRATION SERVICE 5 YRS. PROVIDES TRACEABLE OR FUNCTIONAL VERIFICATION EVENTS WHICHEVER ARE APPLICABLE TO THE PRODUCT. CALS ARE AT TEKTRONIX RECOMMENDED INTERVAL DURING THE COVERAGE PERIOD. CAL COVERAGE INCLUDES THE MANUFACTURERS CAL + 4 |
| D1 | Calibration Data Report |
| D3 | Calibration Data Report 3 Years (with Option C3) |
| D5 | Calibration Data Report 5 Years (with Option C5) |
| R5 | Repair Service 5 Years |
| R5DW | REPAIR SERVICE COVERAGE 5 YEARS (INCLUDES PRODUCT WARRANTY PERIOD) 5 YEAR PERIOD STARTS AT TIME OF CUSTOMER INSTRUMENT PURCHASE |
FAQ:
1. How can I ask any other question ?
You can contact us online or leave us messages below .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
4. What is your payment term?
100% T/T payment before shipment.
|
|
