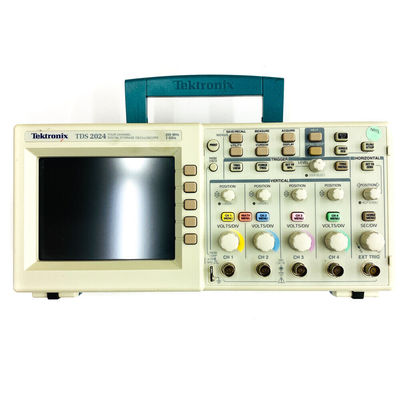

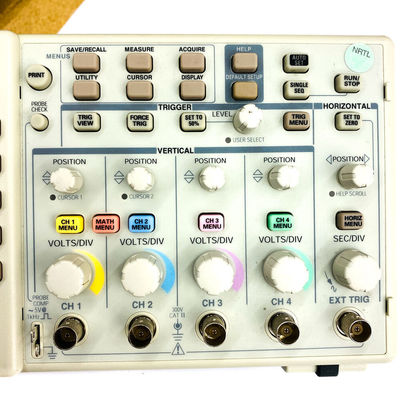

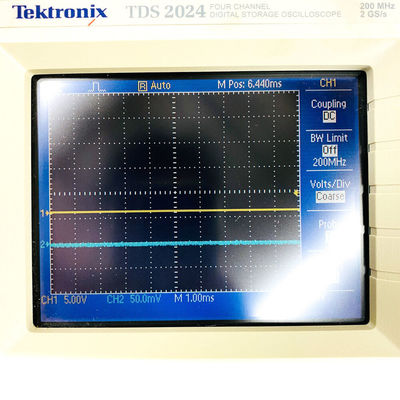

Tektronix TDS2024 Oscilloscope 200MHz 4 Channel 2 GS/S Color

Tektronix TDS2024 Oscilloscope 200MHz 4 Channel 2 GS/S Color

  • Tektronix TDS2024 Oscilloscope 200MHz 4 Channel 2 GS/S Color
  • Tektronix TDS2024 Oscilloscope 200MHz 4 Channel 2 GS/S Color
  • Tektronix TDS2024 Oscilloscope 200MHz 4 Channel 2 GS/S Color
  • Tektronix TDS2024 Oscilloscope 200MHz 4 Channel 2 GS/S Color
Tektronix TDS2024 Oscilloscope 200MHz 4 Channel 2 GS/S Color
Product Details:
Place of Origin: China
Brand Name: Tektronix
Certification: CE
Model Number: TDS2024
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Oscilloscope Bandwidth: 1 Ghz
Channels: 4 Ch Sample Rate: 10 GS/s
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Tektronix TDS2024

,

TDS2024 Oscilloscope

,

GS/S Color Oscilloscope

Tektronix TDS2024 200MHz 4 Channel 2 GS/s Color Oscilloscope

Description of Tektronix TDS2024

The Tek TDS2024 oscilloscope provides accurate real-time acquisition up to its full bandwidth, advanced triggers to isolate signals of interest, and 11 standard automatic measurements. The Tek TDS2024 Fast Fourier Transform (FFT) math function allows the user to analyze, characterize and troubleshoot circuits by viewing frequency and signal strength.

  • Display (1/4 VGA LCD): Color
  • Bandwidth: 200 MHz
  • Channels: 4
  • External Trigger Input: Yes
  • Sample Rate on each channel: 2.0 GS/s
  • Record Length: 2.5 K points
  • Vertical Resolution: 8-bits
  • Vertical Sensitivity: 2 mV to 5 V/div with calibrated fine adjustment
  • DC Vertical Accuracy: ±3%
  • Vertical Zoom: Vertically expand or compress a live or stopped waveform
  • Max Input Voltage: 300 VRMS CAT II; derated at 20 dB/decade above 100 kHz to 13 Vp-p AC at 3 MHz and above
  • Position Range: 2 mV to 200 mV/div ±2 V; >200 mV to 5 V/div ±50 V
  • BW Limit: 20 MHz
  • Input Coupling: AC, DC, GND
  • Input Impedance: 1 MO in parallel with 20 pF
  • Time Base Range: 2.5 ns to 50 sec/div
  • Time Base Accuracy: 50 ppm
  • Horizontal Zoom: Horizontally expand or compress a live or stopped waveform



Features of TDS2024 Digital Phosphor Oscilloscope



  • 200 MHz Bandwidth Models
  • 4-channel Model
  • Up to 2GS/s Sample Rate on All Channels
  • 2.5k point Record Length on All Channels
  • Advanced Triggers including Pulse Width Trigger and Line-selectable Video



List of Options for TDS2024

1R

Rack Mount Kit

A0

North America power

C3

Calibration Service 3 Years

C5

Calibration Service 5 Years

D1

Calibration Data Report

D3

Calibration Data Report 3 Years (with Option C3)

D5

Calibration Data Report 5 Years (with Option C5)

L0

English manual

R5

Repair Service 5 Years (including warranty)

TDS2CMAX

Communications Extension Module

TDS2MEM

Storage Memory and Communication Module

TDS2MM

Communications Extension Module



Specifications & Attributes TDS2024 (Oscilloscopes)
Form Factor
Plug-In ( /TDS2CMAX /TDS2MEM )
Portable
Bandwidth
200 Mhz
Channels
4 Ch
Sample Rate
2 GS/s
Type
Digital
Digital Storage (DSO)



FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What is your payment term?

100% T/T payment before shipment.

3. How can I ask any other question ?

You can contact us online or leave us messages below .
