| Brand Name: | Wavetek |
| Model Number: | 9100 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |

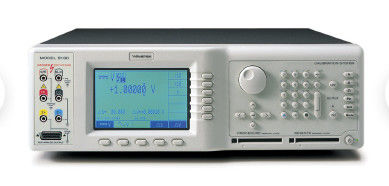

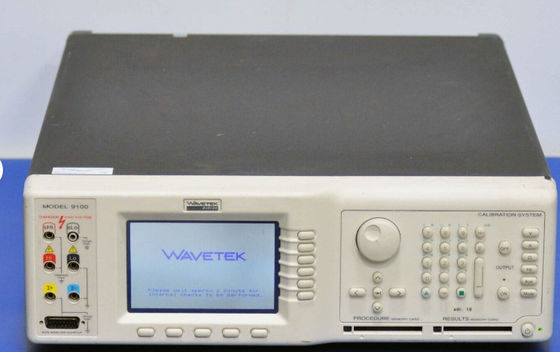

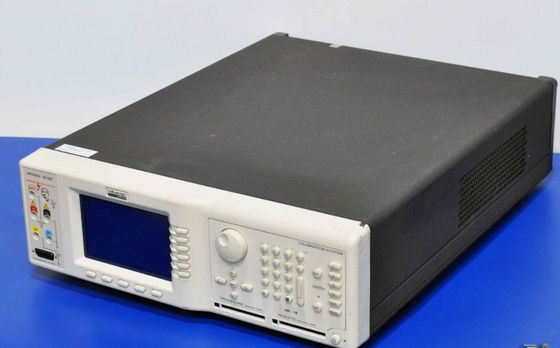

Discription of Wavetek 9100 Multi Product Calibrator
The 9100 is a multifunction calibrator with a breadth and depth of outputs never before available from a single calibration source. In addition to DC and AC voltage to 1050V, variable Resistance to 400MΩ and DC and AC current to 20A (1000A via the optional current coils), the 9100 delivers continuously variable capacitance values to 40mF and conductance values to 2.5 milliSiemens. It also generates digitally synthesized and phaselocked sine, square, triangle, impulse and trapezoidal waveforms, variable amplitude pulses to 10 MHz, pulse widths to 2 seconds, and duty cycles between 0.05% and 99.95%.
Add one of the two oscilloscope calibration options and it generates all the waveforms required to calibrate oscilloscopes up to 250 MHz or 600 MHz.
Fit the insulation/ continuity tester option and it synthesizes resistance values as high as 2GΩ at test voltages up to 1000V. Fit the power meter option and it simultaneously generates variable phase angle voltages and currents that allow you to calibrate power meters up to 1 MW or 1 MVAR.
No other multi-product calibrator gives you such wide workload coverage and versatility. Weighing in at only 41 lbs (18.5 kg), it's also the ideal solution to on-site calibration.
Faster throughput calibration
To cope with the varied and demanding workload of a modern calibration department, you not only need a calibrator that’s versatile, you also need one that maximizes throughput. That’s why the 9100 incorporates a unique procedure mode that guides untrained operators through the entire calibration process, with direct printout of calibration results on a connected printer. For commonly used instruments, the chances are you’ll find the calibration procedures you need in our comprehensive procedure library.
Model 9100 - the low-cost solution to calibrating
List of Options of 9100
| 100 | High Stability Crystal Reference |
| 135 | Insulation/Continuity Tester Calibration Module (fitted internally) |
| 200 | 10/50 Turn Coils |
| 250 | 250 MHz Oscilloscope Calibration Module (fitted internally) |
| 600 | 600 MHz Oscilloscope Calibration Module (fitted internally) |
| 90 | Rack Mount Kit |
| PWR | Power Meter Calibration Module (fitted internally) |
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
