| Brand Name: | Keithley |
| Model Number: | 2002 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |

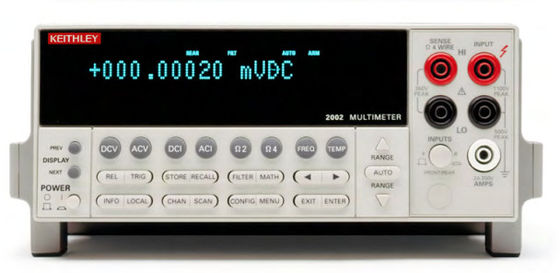

Keithley Instruments 2002 8.5 Digit High Performance Multimeter with 8K Memory
Description of Keithley 2002 8.5 Digit High Performance Multimeter
The 8.5 digit Model 2002 High Performance Digital Multimeter not only delivers performance specifications usually associated only with instruments that cost thousands more, but it offers a broad range of functions not typically available from DMMs. With 1nV DCV sensitivity and a basic accuracy of 0.0006%, this DMM also offers 18 measurement functions. For greater flexibility a built-in card slot on the rear panel allows an additional multiplexer card for multi-point measurement applications. This DMM provides an excellent choice for production test, design verification, and metrology applications where high accuracy is critical.
Product Features of Keithley 2002:

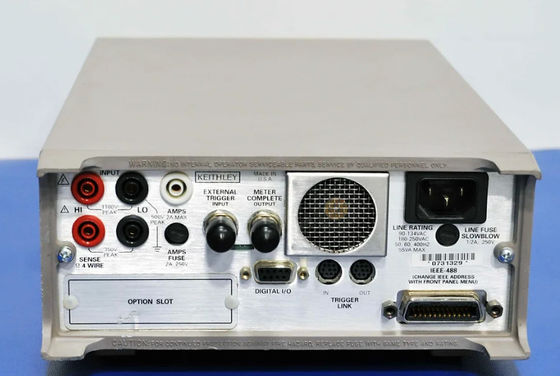

Built-In Scanner (Multiplexer) Options
With the addition of a plug-in scanner card, the 2001 or 2002 becomes a complete scan and measure system for applications involving up to ten measurement points. The additional resolution and measurement ranges provided by the 2002 make it an excellent choice for production test, design veriffcation, and metrology applications where high accuracy is critical.
High Throughput, High Accuracy DCV and Resistance Measurements of Keithley 2002
In applications where high throughput is critical, both the Model 2001 and 2002 provide more than 2000 readings per second at 41 ⁄2-digit resolution. At 71 ⁄2 digits, the Model 2002 maintains full rated accuracy at reading rates up to 44/second on DCV and ohms. The Model 2002 uses a unique single-phase method for 4-wire ohms measurements. This makes it twice as fast for a given power line cycle rate. This also eliminates errors due to changing lead resistances that can result from fast test handlers. A built-in “open-lead” detection circuit also eliminates many production test problems.
High Accuracy ACV Measurements of Keithley 2002
A patented circuit design makes the 2001 and 2002’s AC measurements several times more accurate than competitive DMMs, thus maintaining very good accuracy (better than 0.1%) down to 1Hz. The wide bandwidth of these DMMs allows for accurate measurements of high frequency AC signals without the need for a special AC meter. Both the 2001 and 2002 feature TRMS AC, Average AC, Peak AC, AC+DC, and Crest Factor measurement capability for a wide variety of applications
List of Options of Keithley 2002
| 2000 SCAN | 10 CHANNEL SCANNER CARD |
| 4288-1 | RACKMOUNT KIT |
| MEM1 | 32K NV MEM |
| MEM2 | 128K NV MEM |
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
|
|
