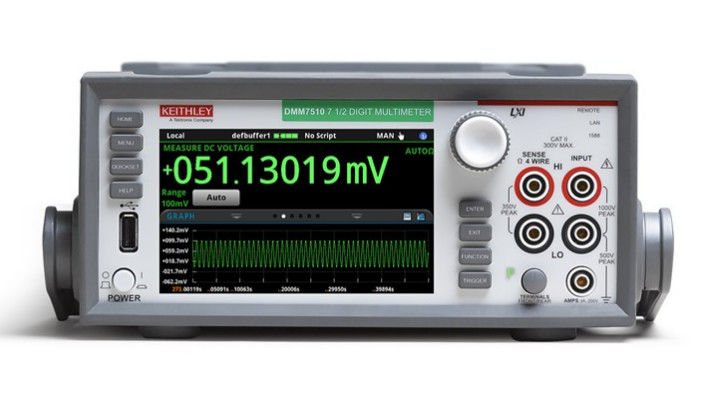

The Model DMM7510 combines all the advantages of a precision digital multimeter, a graphical touchscreen display, and a high speed, high resolution digitizer to create an industry first: a graphical sampling multimeter. The digitizer gives the Model DMM7510 unprecedented signal analysis flexibility; the five-inch capacitive touchscreen display makes it easy to observe, interact with, and explore measurements with “pinch and zoom” simplicity. This combination of high performance and high ease of use offers unparalleled insight into your test results

Product Features of Keithley DDM7510:

• 14 PPM basic one-year DCV accuracy
• Precision multimeter with 3½-to 7½-digit resolution
• Capture and display waveforms or transients with 1MS/sec digitizer
• 100mV, 1Ω, and 10μA ranges offer the sensitivity needed for measuring low level signals
• Make accurate low resistance measurements with offset compensated ohms, four-wire, and dry circuit functions
• Display more with five-inch, high resolution touchscreen interface
• Auto-calibration feature improves accuracy and stability by minimizing temperature and time drift
• Two-year specifications allow for longer calibration cycles
• Readings and screen images can be saved quickly via the front panel USB memory port
• Multiple connectivity options: GPIB, USB, and LXI-compliant LAN interfaces
• Large internal memory buffer; store over 11 million readings in standard mode or 27.5 million in compact mode

Make Demanding Measurements with Confidence

The Model DMM7510’s design makes the most of Keithley’s low level measurement expertise. Features like the low noise input stage and the 32-bit A-to-D converter allow this instrument to deliver DC accuracies typically only found in metrology-grade instrumentation—but at about half the price of those solutions. The Model DMM7510’s 100mV, 10Ω, and 10µA ranges deliver the sensitivity needed to measure low signals with confidence when characterizing today’s demanding electronic designs. In addition to one- and two-year accuracy specifications, an auto-calibration function ensures greater accuracy between calibration cycles.

15 Measurement Functions

The DMM7510 provides 15 basic measurement functions. In addition to the digitizing voltage and current functions, it includes capacitance, ACV and ACI, temperature (RTD, thermistor, and thermocouple), 2- and 4-wire resistance, dry circuit ohms, period, frequency, diode test, and DC voltage ratio. The instrument’s flat menu structure allows for fast configuration and improves usability. Its intuitive design lets you learn how to operate the instrument and begin making device measurements faster and with greater confidence

Designed for Higher Testing Productivity

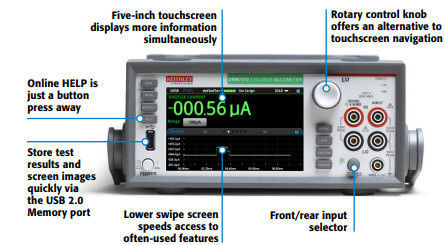

In addition to its advanced touchscreen, the Model DMM7510’s front panel offers a variety of features that enhance its speed, user-friendliness, and learnability, including a USB 2.0 memory I/O port, a HELP key, a rotary navigation/control knob, and front/rear input selector button. All front-panel buttons are backlit to enhance visibility.

Instrument connections

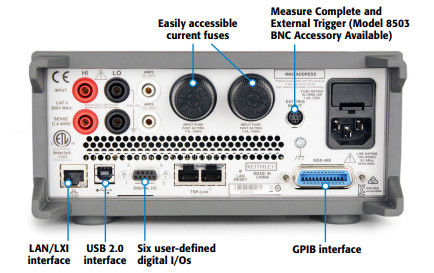

In this example, the output signals that represent the grading results are sent from the DMM7510. The signals are sent to the component handler, which bins the devices. The figure below shows the rear-panel connections from the DMM7510 to the test fixture and the digital lines to the component handler. In addition, there is GPIB communication between the controller and the component handler.
