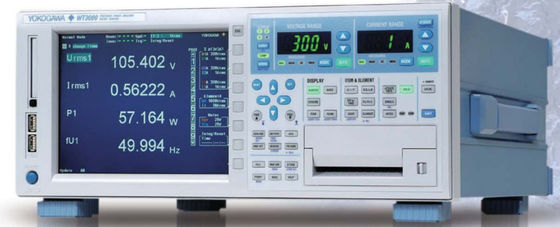

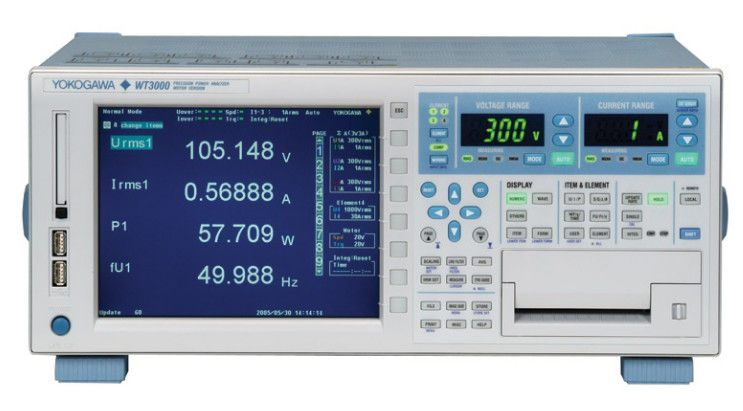

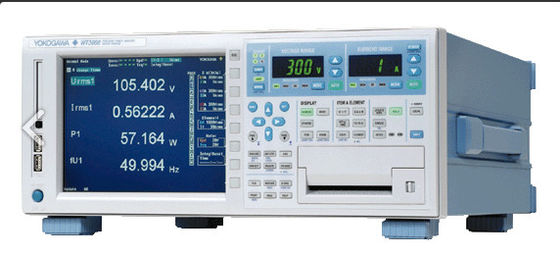

Yokogawa WT3000 Precision Power Analyzer Advanced Computation Function

Yokogawa WT3000 Precision Power Analyzer Advanced Computation Function

  • Yokogawa WT3000 Precision Power Analyzer Advanced Computation Function
  • Yokogawa WT3000 Precision Power Analyzer Advanced Computation Function
  • Yokogawa WT3000 Precision Power Analyzer Advanced Computation Function
  • Yokogawa WT3000 Precision Power Analyzer Advanced Computation Function
Yokogawa WT3000 Precision Power Analyzer Advanced Computation Function
Product Details:
Place of Origin: Japan
Brand Name: Yokogawa
Model Number: WT3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Precision Power Analyzer Basic Accuracy: 0.01% Of Reading
Basic Power Accuracy: 0.02% Of Reading Store Function: 50 Ms Data Storing Interval
Condition: Pre-Owned Functions:: Tested, In Full Working Conditions
High Light:

Yokogawa WT3000 Precision Power Analyzer

,

0.01% Precision Power Analyzer

,

yokogawa power analyzer wt3000

Yokogawa WT3000 Precision Power Analyzer
Description of  Yokogawa WT3000

The WT3000 is the ideal measurement solution for applications such as product efficiency testing, engineering, R&D work on inverters, motor drives, lighting systems and electronic ballasts, UPS systems, aircraft power systems, transformer testing and other power conversion devices.



Features of Yokogawa WT3000:

  • Basic Accuracy: 0.01% of reading
  • Basic Power Accuracy: 0.02% of reading
  • Store Function: 50 ms Data Storing Interval
  • Interface: GP-IB, Ethernet, RS-232 and USB
  • IEC61000-3-2: Harmonic Measurement
  • Simultaneous Measurement with 2 Units (8 Power Input Elements)
  • IEC61000-3-3: Voltage Fluctuation/ Flicker Measurement
  • Good Readability: The Large, 8.4-inch LCD and the Range Indicator LEDs
  • Advanced Computation Function: Waveform Computation, FFT Analysis, Waveform sampling Data Saving



Better Efficiency in Power Measurements

In developing the WT3000, Yokogawa focused on improving efficiency in two basic areas. One goal was to obtain highly precise and simultaneously measurements of the power conversion efficiency of a piece of equipment. The other objective was to improve equipment evaluation efficiency by making simultaneous power evaluations and tests easier and faster.



More Precise. More Bandwidth. More Features of WT3000

  • The WT3000 is a truly innovative measurement solution, combining top-level measurement accuracy with special functions.*
  • The large, 8.4-inch liquid crystal display and the range indicator LEDs ensure good readability and make the system easy to use.

The WT3000 has the highest precision of all the Yokogawa power analyzers in the WT series. The models in the WT series are designed to meet a wide variety of user needs. The WT300 series is a high price-performance series which is very popular in production line applications. The WT1800 allows measurement data to be viewed in a variety of ways, including numerical value display, waveform display, and trend display capabilities.

Yokogawa WT3000 Precision Power Analyzer Advanced Computation Function 0

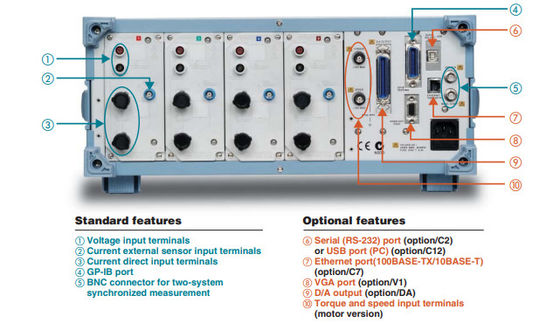

List of Options of WT3000

01 30A input element for 760301 model
02 30A input element for 760302 model
03 30A input element for 760303 model
04 30A input element for 760304 model
10 2A input element for 760301 model
20 2A input element for 760302 model
30 2A input element for 760303 model
40 2A input element for 760304 model
760301 WT3000 1 input element model
760302 WT3000 2 input element model
760303 WT3000 3 input element model
760304 WT3000 4 input element model
B5 Built-in printer
C12 USB Port (PC) Option
C2 Serial (RS-232)
C5 USB Port (Peripheral) Option
C7 Ethernet port
CC Cycle by Cycle Measurement
D UL/CSA standard; GPIB Standard
DA D/A Output
DT Delta Calculation
FL Voltage Fluctuation and Flicker Measurement
FQ Added Frequency Measurement
G5 Harmonic Measurement
G6 IEC harmonic measurement mode
G6 Advanced Computation
M UL/CSA standard
MV Motor Version
SV Standard Version
V1 VGA output

Yokogawa WT3000 Precision Power Analyzer Advanced Computation Function 1Yokogawa WT3000 Precision Power Analyzer Advanced Computation Function 2Yokogawa WT3000 Precision Power Analyzer Advanced Computation Function 3Yokogawa WT3000 Precision Power Analyzer Advanced Computation Function 4
