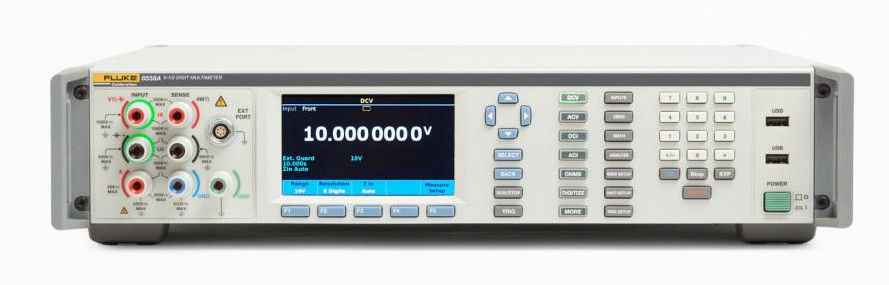

Fluke 8558A 8.5 Digit Precision Multimeter

Description of Fluke 8558A

The 8558A 8.5 digit multimeter offers 5 mega-samples-per-second high resolution digitizing for system automation in labs and manufacturing test environments. Fluke’s new high-speed system design and the industry’s fastest direct digitizing capability enable significant throughput increases for many automated system applications that require a combination of highest speed and best accuracy. The superb accuracy is delivered over a wide measurement range, over nine functions, with an intuitive user interface on a color display.

The 8558A shares the same platform as the fully loaded 8588A Reference Multimeter. The platform features a common intuitive user interface with easy-to-navigate menu structure for all configuration and matching SCPI-compliant commands for automated environment. The 8588A platform guarantees a minimum of 100,000 readings per second at 4.5 digits across GPIB, USBTMC or Ethernet, and an onboard data memory that can hold up to 15 million readings.

Fluke 8558A Key Features and Performance

• 10 uA to 2 A (8558A)
• 2.02x full scale
• Maximum resolution: 1 pA
• 9 μA/A (95 %), 12 μA/V (99 %), 1 year
• 0 ns to 100 s reading aperture

• 100 mV to 1000 V, (1050V max)
• 2.02x full scale
• Maximum resolution: 1 nV
• 4.0 μV/V (95 %) 5.7 μV/V (99 %), 1 year
• 0.5 μV/V (95 %) 0.65 μV/V (99 %), 24 hour stability
• 0 to 10 s reading aperture (200 ns resolution)

• 10 uA to 30 A (8588A only; 2 A for 8558A)
• 2.02x full scale Vpp, 1 Hz to 100 kHz 1.2x full scale Vrms
• Maximum resolution: 1 pA
• 300 μA/A (95 %), 387 μA/V (99 %), 1 year

• 10 mV to 1000 V, 1 Hz to 10 MHz, (1050 Vrms max)
• 2.02x full scale Vpp, 1.2x full scale Vrms
• Maximum resolution: 1 nV
• 80 μV/V (95 %), 103 μV/V (99 %), 1 year

• 1Ω to 10 GΩ (20 GΩ max)
• 2.02x full scale
• Maximum resolution: 10 nΩ
• 10 μΩ/Ω (95 %), 13 μΩ/Ω (99 %), 1 year
• Low current mode, high voltage mode and current-reversal Tru Ohms™

• 1 nF to 100 mF
• 400 μF/F, 1 year

• 15 million readings volitile
• 7.5 million readings with volitile time stamp
• 16 GB non-volitile

• PRT and thermocouple
• 5 mK PRT, 25 mK TC - 1 year

• Manual trigger
• External BNC Trig In and Trig Out
• Internal or level trigger
• Timer trigger
• Epoch trigger
• Line trigger
• BUS trigger

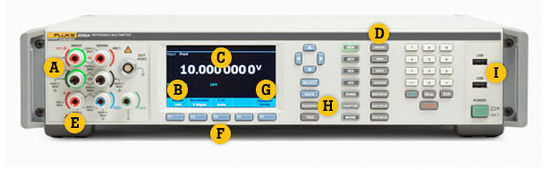

Fluke 8558A Feature Callouts

A. Visual Connection Management terminals
Active terminals light up, guiding the user to make the correct connections.

B. Easy-to-access configurations
Range, aperture, input impedance, RMS filter and other measurement configurations are readily available.

C. Large, bright full color display
The intuitive user interface and flat menu structure make it easy to access configurations and view trend plots, waveforms, FFT, histogram and statistics.

D. Programmable front/rear electronic switch
Eliminates manual operation and allows immediate ratio results through a single remote command.

E. 30 A terminal (8588A only; 2A for 8558A)
Enables industry's widest current measurement range through a single terminal.

F. Soft menu keys
Adapt to the active function, so the menu structure is intuitive and easy to learn.

G. Multi-language selection
Choice of English, Chinese, French, Japanese, Korean, Russian and Spanish.

H. Run/Stop trigger
Toggles the continuous, or free run, measurement state.

I. USB ports
Download data quickly and easily to a flash drive.

J. Trig in/Trig out
Precise triggering maximizes synchronization in system automation.

K. Freq Counter
Enables 100 MHz frequency counter measurement at 0.5 uHz/z.

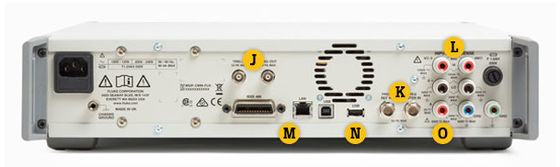

L. Rear panel input terminals
Mirrors front panel input terminals for connection compatibility and allows for front/rear scan measurement.

M. IEEE 488, LAN, USB interfaces
Standard remote interface for straightforward system integration.

N. USB port
Download data quickly and easily to a flash drive.

O. 2 A terminal
