Industrial Fluke 5560A Multi Product Calibrator Benchtop 6.5 Digit Multimeters

Name: Industrial Fluke 5560A Multi Product Calibrator Benchtop 6.5 Digit Multimeters
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: 5560A
Availability: InStock

Brand Name:	Fluke
Model Number:	5560A
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

USA

Certification:

ISO 17025

Product Name:

Multi Product Calibrator

Repair Support:

Calibration Only

Calibration Support:

Functions:

Tested, In Full Working Conditions

Scope Calibrator:

SC600/SC1100/SC2100

Frequency Uncertainty:

<2.5 Ppm

Packaging Details:

carton

Supply Ability:

in stock

Highlight:

Fluke 5560A Multi Product Calibrator

Benchtop Multi Product Calibrator

6.5 Digit Multimeters

Product Description

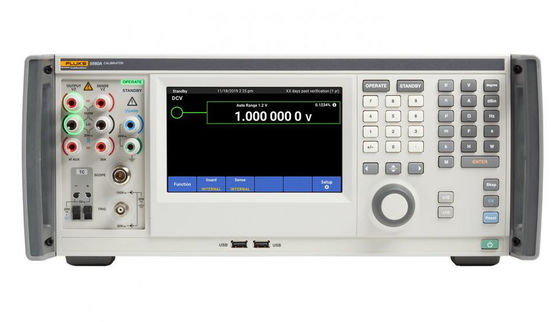

Fluke 5560A High Performance Multi-product Calibrator

Description of Fluke 5560A Multi Product Calibrator

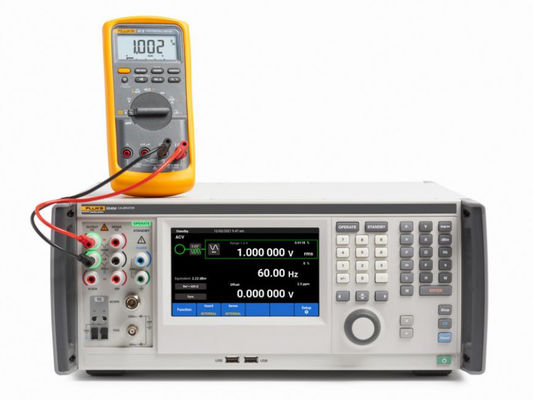

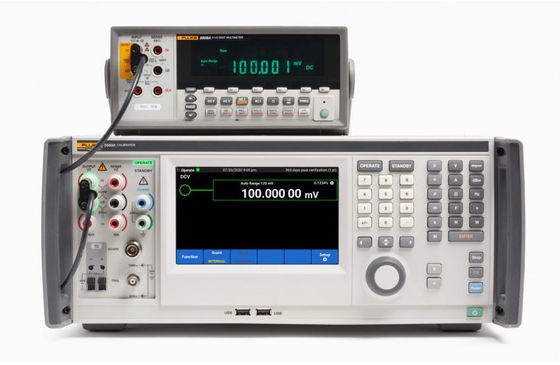

The 5560A High-Performance Multi-Product Calibrator calibrates the most popular benchtop 6.5-digit multimeters with better than 4:1 test uncertainty ratio (TUR), oscilloscopes to 2 GHz, and clamp meters to 1500 A.

Technical improvements include 30 A continuous current output with no duty cycle and synthesized inductance functionality. These improvements enable you to calibrate modern and full-functional benchtop multimeters and clamp meters. A large variety of thermocouple types and a new thermocouple connector enables easier connection and broadens the temperature workload coverage. The workload is expanded even further when the 5560A is used with a 52120A amplifier and appropriate coil to increase the current output to 6000 A, for calibrating high-current devices such as Rogowski coils.

Highlights of Fluke 5560A Multi Product Calibrator

5560A: The next generation high-performing calibrator supporting the widest workload coverage

The 5560A High-Performance Multi-Product Calibrator defines a new class of high-performance multi-product calibrator, providing the broadest electrical workload coverage and highest accuracy for calibrating the most demanding modern workloads.

Key features and benefits of 5560A Calibrator

4:1 test TUR for most popular 6.5-digit multimeters
30 A continuous current output extends AC/DC measurement ranges
Calibrate meters that measure inductance
Ranging optimized to better match your existing digital multimeter workload
New optional 1-, 2-, 10-turn and redesigned 50-turn current coils expand workload coverage even further
17.8 centimeter (7-inch) color touch screen with new graphical user interface provides an intuitive calibration experience
Optional DMM AUTOCAL Adapter to calibrate digital multimeters with minimal-to-no lead changes
Visual Connection Management output terminals guide connections, preventing connection errors
Reverse power protection prevents costly operator errors
Oscilloscope calibration options expand workload coverage Up to 2GHz

Function	Range
Direct volts	0 V to ± 1020 V
Direct current	0 to ± 30.2 A
Alternating volts	1 mV to 1020 V 3 Hz to 500 kHz
Alternating current	10 μA to 30.2 A 3 Hz to 30 kHz
Volt/hertz	1000 V at 10 kHz/330 V at 100 kHz
Waveforms	Sine wave, triangle wave and truncated sine wave
Resistance variable	0 Ω to 1200 MΩ
Capacitance variable	200 pF to 120 mF
Inductance variable	12 uH to 12 H
Power (dual output – phantom loads)	30.9 kW
Oscilloscope bandwidth	2.1 GHz, 1.1 GHz, or 600 MHz
Phase lock	Yes
Phase control	0.01°
Frequency uncertainty	<2.5 ppm
Temperature standard	<ITS-90, IPTS-68
Resistance temperature detectors (RTDs) output	Pt100 385, Pt100 395, Pt100 3916, Pt200 385, Pt500 385, Pt1000 385, Ni120, Cu10 Compensation: off, 2-wire, 4-wire
External frequency reference 10 MHz	Yes
Thermocouples (source and measure) External or internal CJR	B,C,E,J,K,L,N,R,S,U, BP and XK 10 μV/°C
Scope calibrator	SC600 – with levelled sine up to 600 MHz SC1100 – with levelled sine up to 1100 MHz SC2100 – with levelled sine up to 2100 MHz
Interfaces / Remote commands	USB 2.0, Etherne Telnet, RS-232 and GPIB
52120A Amplifier current capability	Current capability up to 120 A Current capability up to 360 A with three 52120As (parallel)

List of Options of FLUKE 5560A

5560A/600M	600 MHz Oscilloscope Calibration Option
5560A/1G	1.1GHz Oscilloscope Calibration Option
5560A/2G	2.1GHz Oscilloscope Calibration Option

FAQ:

1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
