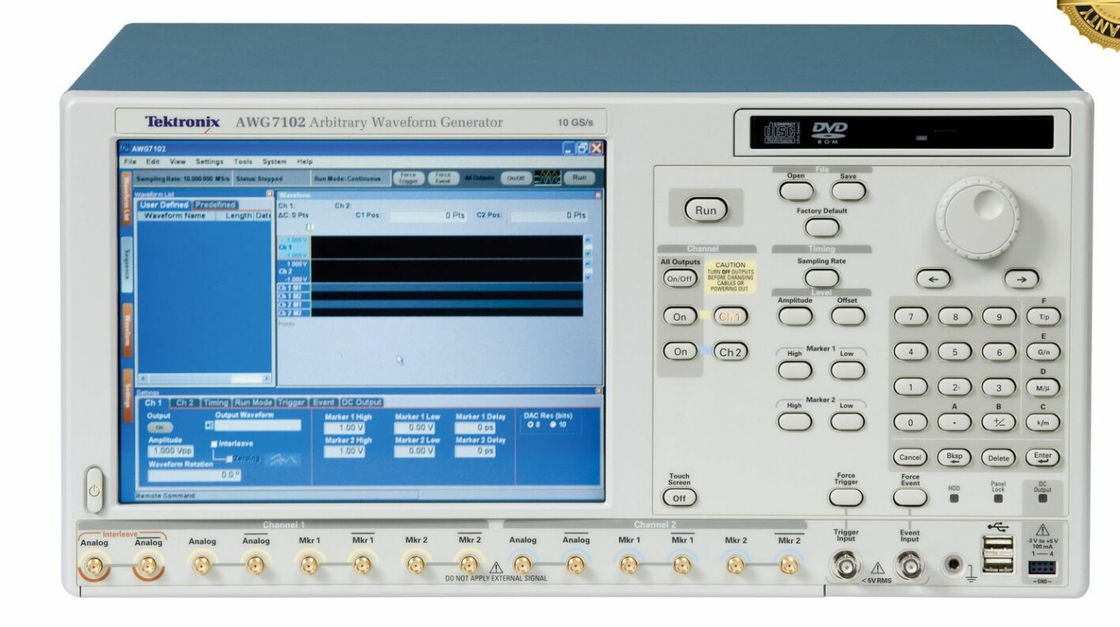

Tektronix AWG7102 Arbitrary Waveform Generator with 10GS/s Sample Rate and High Bandwidth Output in Benchtop Form Factor

Name: Tektronix AWG7102 Arbitrary Waveform Generator with 10GS/s Sample Rate and High Bandwidth Output in Benchtop Form Factor
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: AWG7102
Availability: InStock

Brand Name:	Tektronix
Model Number:	AWG7102
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

USA

Certification:

ISO:17025 Accredited Calibration

Product Name:

Arbitrary Waveform Generator

Form Factor:

Benchtop

Sample Rates:

10GS/s

Connectivity:

LAN/USB

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Packaging Details:

Carton

Supply Ability:

in stock

Highlight:

Tektronix AWG7102 waveform generator

10GS/s high bandwidth signal generator

arbitrary waveform generator with warranty

Product Description

AWG7102 Tektronix Arbitrary Waveform Generator 10GS/S High Bandwidth Output

Tektronix AWG7102 Arbitrary Waveform Generator 10GS/s High Bandwidth Output

The AWG7000 Series Arbitrary Waveform Generator delivers a unique combination of superior signal stimulus, unrivaled sample rate, bandwidth and signal fidelity, and uncompromised usability. This family offers the industry's best solution to the challenging signal stimulus issues faced by designers verifying, characterizing, and debugging sophisticated electronic designs.

With sample rates from 5 GS/s to 20 GS/s (10-Bits), together with 1 to 2 output channels, the toughest measurement challenges in the disk drive, communications, digital consumer, and semiconductor design/test industries can be easily solved. The open Windows XP-based instruments deliver ease of use and allow connectivity with peripherals and compatibility with third-party software.

Features of Tektronix AWG7102

10 GS/s (20 GS/s) and 5 GS/s models
2 or 4 Variable Level Marker Outputs; Accurate Timing with only 30 ps p-p Total Jitter (at 10-12 BER, Typical) 45 ps Tr/Tf (20% to 80%); Up to 300 ps Range (1 ps Resolution) Delay Control
Up to 64 M (64,800,000) Point Record Length Provides Longer Data Streams
Real-time Sequencing Creates Infinite Waveform Loops, Jumps, and Conditional Branches
1 or 2 Arbitrary Waveform Outputs; Accurate Timing with only 20 ps p-p Total Jitter (at 10-12 BER, Typical) 45 ps Tr/Tf (20% to 80%); ±100 ps Range (1 ps Resolution) Inter Channel Skew Control
Intuitive User Interface Shortens Test Time
Down to 100 fs Resolution Edge Timing Shift Control
Vertical Resolution up to 10-Bit Available: 10-Bits (No Marker Output) or 8-Bits (with Two Marker Outputs)
Integrated PC Supports Network Integration and Provides a Built-in DVD, Removable Hard Drive, LAN, and USB Ports
Sequencing Creates Infinite Waveform Loops, Jumps and Conditional Branches

Applications of AWG7102

Mixed Signal Design and Test: 2-channel Analog plus 4-channel Marker Outputs
Disk Drive (Magnetic/Optical) Read/Write: Up to 5 Gbps Data Rate (2-point/cell) or 50 ps Timing Resolution
Real-world, Ideal or Distorted Signal Generation - Including All the Glitches, Anomalies and Impairments
Telecom/Data Communications: Up to 10 Gbps Data Rate (Binary, Pre-/De-emphasis and Multi-level Logic)
High-speed, Low-jitter Data/Pulse and Clock Source
Waveform Vectors Imported from Third-party Tools such as MathCAD, MatLab, Excel and Others
Enhanced/Corrupted Playback of DSO Captured Signals
Wireless Communications: Up to 5 GHz (4-waveform points/cycle) Arbitrary RF/IF and Wide-bandwidth Modulation I and Q Baseband Signals

List of Options

Option Code	Description
01	Waveform Length Expansion (from 32 M to 64 M)
02	High Bandwidth output (alternative for standard output)
06	High Bandwidth output with 20 GS/s interleaved including Option 02 features (alternative for standard output)
R3DW	REPAIR SERVICE COVERAGE 3 YEARS (INCLUDES PRODUCT WARRANTY PERIOD) 3 YEAR PERIOD STARTS AT TIME OF CUSTOMER INSTRUMENT PURCHASE

Frequently Asked Questions

1. Can you ship order to Canada or Australia?

Yes, we can. We send orders worldwide.

2. What is your payment term?

100% T/T payment before shipment.

3. How can I ask any other question?

You can contact us online or leave us messages below.
