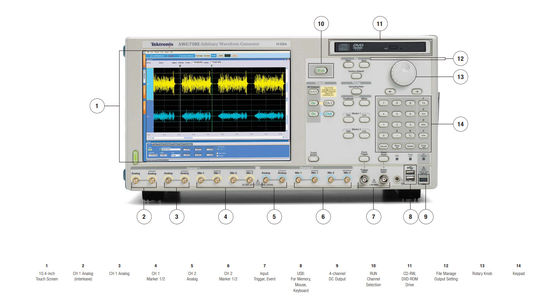

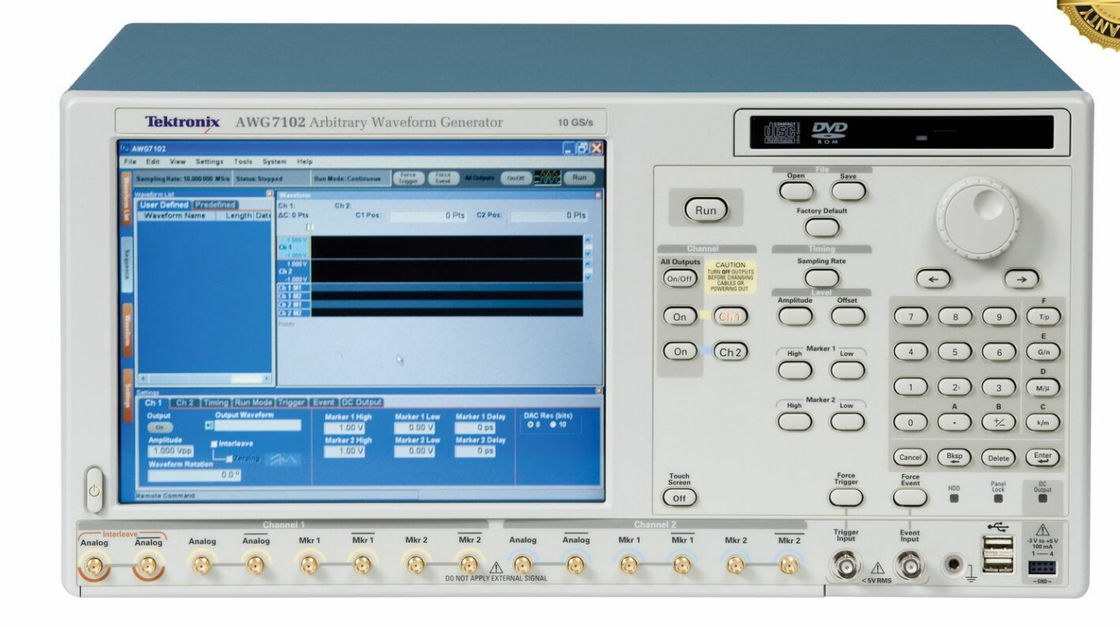

The AWG7000 Series Arbitrary Waveform Generator delivers a unique combination of superior signal stimulus, unrivaled sample rate, bandwidth and signal fidelity and uncompromised usability. This family offers the industry’s best solution to the challenging signal stimulus issues faced by designers verifying, characterizing and debugging sophisticated electronic designs. With sample rates from 5 GS/s to 20 GS/s (10-Bits), together with 1 to 2 output channels, the toughest measurement challenges in the disk drive, communications, digital consumer and semiconductor design/test industries can be easily solved. The open Windows (Windows XP)-based instruments deliver ease of use and allow connectivity with peripherals and compatibility with third-party software

Features of Tektronix AWG7102

• 10 GS/s (20 GS/s) and 5 GS/s models
• 2 or 4 Variable Level Marker Outputs; Accurate Timing with only 30 psp-p Total Jitter (at 10-12 BER, Typical) 45 ps Tr/Tf (20% to 80%); Up to 300 ps Range (1 ps Resolution) Delay Control
• Up to 64 M (64,800,000) Point Record Length Provides Longer Data Streams
• Real-time Sequencing Creates Infinite Waveform Loops, Jumps, and Conditional Branches
• 1 or 2 Arbitrary Waveform Outputs; Accurate Timing with only 20 psp-p Total Jitter (at 10-12 BER, Typical) 45 ps Tr/Tf (20% to 80%); ±100 ps Range (1 ps Resolution) Inter Channel Skew Control
• Intuitive User Interface Shortens Test Time
• Down to 100 fs Resolution Edge Timing Shift Control
• Vertical Resolution up to 10-Bit Available: 10-Bits (No Marker Output) or 8-Bits (with Two Marker Outputs)

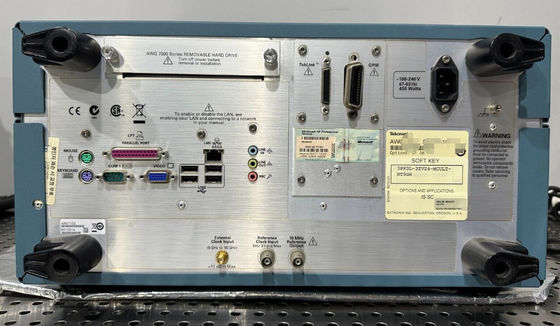

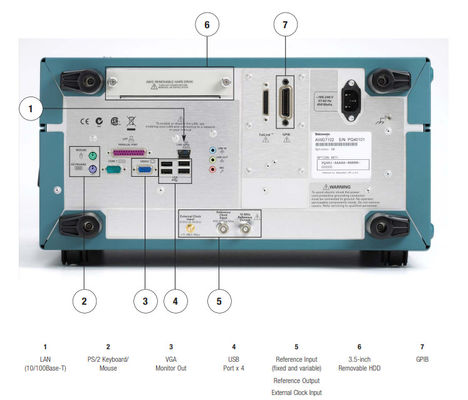

• Integrated PC Supports Network Integration and Provides a Built-in DVD, Removable Hard Drive, LAN, and USB Ports
• Sequencing Creates Infinite Waveform Loops, Jumps and Conditional Branches

Applications of AWG7102

• Mixed Signal Design and Test: – 2-channel Analog plus 4-channel Marker Outputs
• Disk Drive (Magnetic/Optical) Read/Write: – Up to 5 Gbps Data Rate (2-point/cell) or 50 ps Timing Resolution
• Real-world, Ideal or Distorted Signal Generation – Including All the Glitches, Anomalies and Impairments
• Telecom/Data Communications: – Up to 10 Gbps Data Rate (Binary, Pre-/De-emphasis and Multi-level Logic)
• High-speed, Low-jitter Data/Pulse and Clock Source
• Waveform Vectors Imported from Third-party Tools such as MathCAD, MatLab, Excel and Others
• Enhanced/Corrupted Playback of DSO Captured Signals
• Wireless Communications: – Up to 5 GHz (4-waveform points/cycle) Arbitrary RF/IF and Wide-bandwidth Modulation I and Q Baseband Signals
