Tos9200 Kikusui Hipot Tester With Insulation Resistance Test Ac- 5.0 Kv

Tos9200 Kikusui Hipot Tester With Insulation Resistance Test Ac- 5.0 Kv

  • Tos9200 Kikusui Hipot Tester With Insulation Resistance Test Ac- 5.0 Kv
  • Tos9200 Kikusui Hipot Tester With Insulation Resistance Test Ac- 5.0 Kv
  • Tos9200 Kikusui Hipot Tester With Insulation Resistance Test Ac- 5.0 Kv
  • Tos9200 Kikusui Hipot Tester With Insulation Resistance Test Ac- 5.0 Kv
Tos9200 Kikusui Hipot Tester With Insulation Resistance Test Ac- 5.0 Kv
Product Details:
Place of Origin: Japan
Brand Name: Kikusui
Certification: ce
Model Number: TOS9200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: RESISTANCE TESTER Number Of Outputs: 1
Total Power: 50-100W Nominal Input Ratings:: 100 VAC - 240 VAC; 50/60hz
Input Range:: 86 VAC - 250VAC Power Consumption:: 1500 VA Typical
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

TOS9200 Kikusui Hipot Tester

,

5.0 KV Kikusui Hipot Tester

Kikusui TOS9300 AC Hipot Tester with Insulation Resistance Test, 5 kV





Description:

The TOS9200 Series has been developed to meet a wide diversity of customer needs. Including the refinement and enforcement of Kikusui’s former Series, its specifications reflect the results of detailed study of our large database of user’s requirements including special orders and modifying specifications.
The TOS9200 Series consists of four products the testers TOS9200 and TOS9201, and the high-voltage scanners TOS9221 and TOS9220.
The TOS9200 is equipped with AC withstanding voltage and insulation resistance testing functions, while the TOS9201 has a DC hipot testing function in addition to these two functions. The power block, a core component, employs a high-efficiency switching power supply and a switching amplifier based on PWM systems. These features realize high power and enhanced stability, as well as reducing the size and weight of the unit. When combined with the earth continuity tester TOS6200, the TOS9200 Series integrates three or four types of tests in a single process. Furthermore, when used together with the high-voltage scanner TOS9220/9221 (equipped with a contact check function), the tester is capable of automatically checking test points for up to 16 channels, thereby facilitating a safe, reliable automatic testing system.

  • Rise-time control function
  • Fall-time control function
  • Offset cancel function
  • Measured-value hold function
  • Output voltage monitoring function
  • Memory function
  • Program function
  • Interlock Function
  • DC Discharge Function

Features:



  • Two functions-AC hipot testing and insulation resistance testing.
  • AC hipot testing at 5 kV and 100 mA.
  • Rise-time control function
  • Fall-time control function
  • Offset cancel function
  • Measured-value hold function
  • Output voltage monitoring function
  • Memory function
  • Program function
  • Interlock Function
  • Includes: AC Power cable, High-voltage test lead wire TL01-TOS (1.5m), Interlock jumper, High-Voltage Danger seal, Fuse, Operation Manual (Operation Manual for Tester, Operation for GPIB/RS-232C Interface)







Specifications:



Manufacturer    Kikusui

Condition        Used

Amps             20 A

Frequency     50Hz

Phase            1

Power (VA)      4 KVA

Volts           240 V

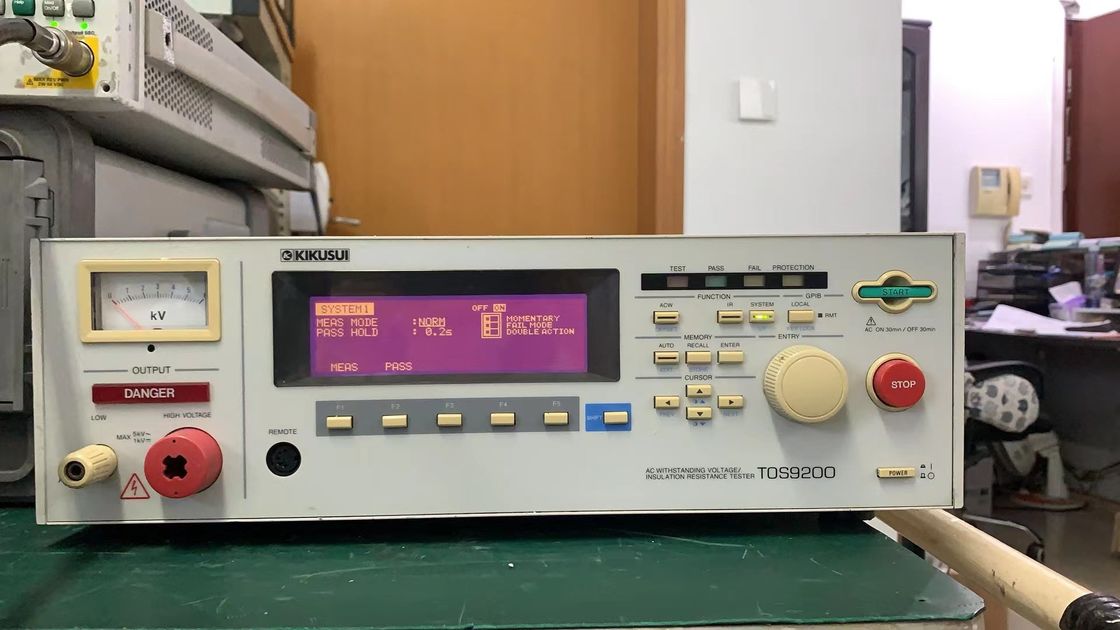

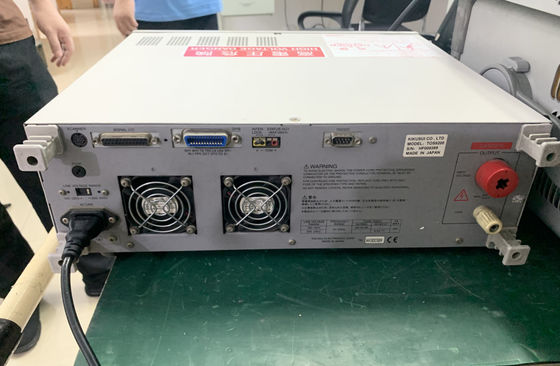

Tos9200 Kikusui Hipot Tester With Insulation Resistance Test Ac- 5.0 Kv 0Tos9200 Kikusui Hipot Tester With Insulation Resistance Test Ac- 5.0 Kv 1

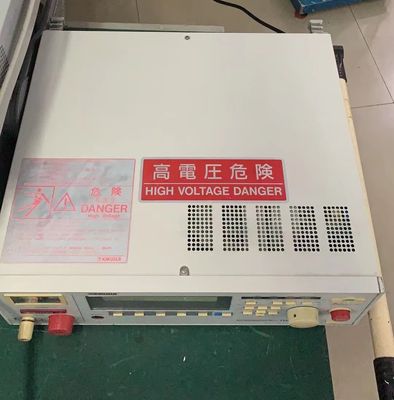

Tos9200 Kikusui Hipot Tester With Insulation Resistance Test Ac- 5.0 Kv 2

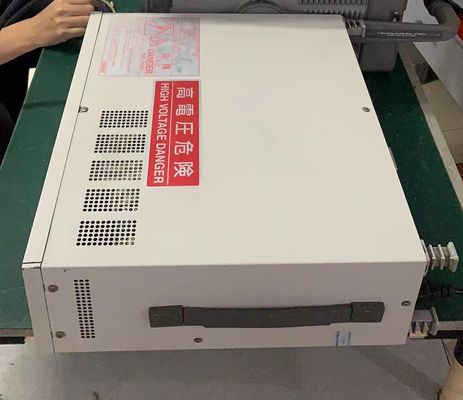

Tos9200 Kikusui Hipot Tester With Insulation Resistance Test Ac- 5.0 Kv 3Tos9200 Kikusui Hipot Tester With Insulation Resistance Test Ac- 5.0 Kv 4
