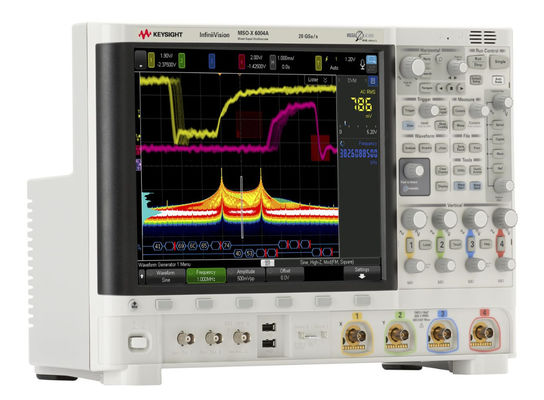

Infinium Agilent Keysight MSOX6004A Mixed Signal Oscilloscope 1-6Ghz 4 Analog Plus 16 Digital Channels

Description of Keysight Agilent MSOX6004A Mixed Digital Oscilloscope

1– 6 GHz 4 analog plus 16 digital channels Easily view and isolate signals on the 12.1-in capacitive multi-touch screen with Zone triggering and 450,000 wfms/s update rate Make more precise measurements with 115 Vrms noise floor at 1 mV/div (1 GHz) Get performance measurements anywhere with the portable 6-in deep size Quickly see analysis details with standard histogram and color grade View signal integrity with jitter and eye diagram analysis options Expand capabilities with full upgradability Bandwidth 1 GHz to 6 GHz Bandwidth Upgrades Available Channels 4 + 16 Max Memory Depth 4 Mpts Max Sample Rate 20 GSa/s half channel, 10 GSa/s all channel Display Size 12.1 inch capacitive touch ADC Bits 8 bits Built-In Instruments (Optional) 3-digit DVM 20 MHz Dual AWG 10-digit Counter Special Triggers Touch Zone Trigger Protocol Trigger & Decodes Optional Operating System Embedded

Overview and Features of Keysight Agilent MSOX6004A

• 1– 6 GHz
• View signal integrity with jitter and eye diagram analysis options
• Make more precise measurements with 115 Vrms noise floor at 1 mV/div (1 GHz)
• 4 analog plus 16 digital channels
• Quickly see analysis details with standard histogram and color grade
• Get performance measurements anywhere with the portable 6-in deep size
• Easily view and isolate signals on the 12.1-in capacitive multi-touch screen with Zone triggering and 450,000 wfms/s update rate
• Expand capabilities with full upgradability
