We will help you achieve your electronic plans.
Any project. Any budget.
 |
| Brand Name: | Rohde & Schwarz |
| Model Number: | Rohde & Schwarz®ZNA26/43/50/67 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 1~3 Working Days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | In Stock |
| PORTS: | Two Or Four Port Models Available | FREQUENCY: | 10 MHz To 26.5/43.5/50/67 GHz |
|---|---|---|---|
| DYNAMIC RANGE: | 147 DB | Product Name: | ZNA Vector Network Analyzers |
| Condition: | Pre-Owned | Warrenty: | 30 DAYS |
| Functions: | Tested, In Full Working Conditions | ||
| High Light: | Rohde & Schwarz ZNA,67 GHz Vector Network Analyzers,Four Port Vector Network Analyzers |
||

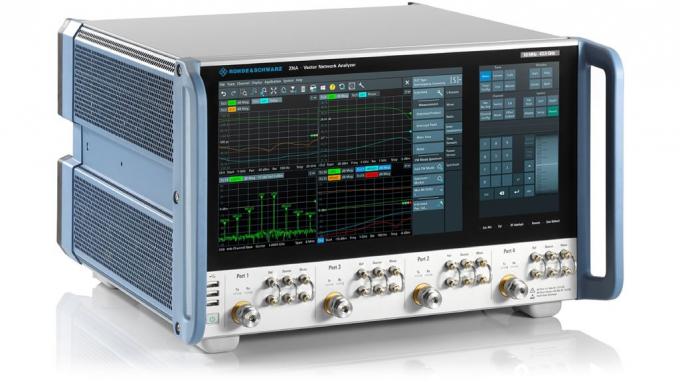

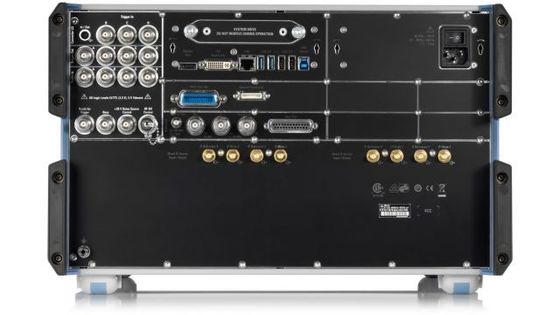

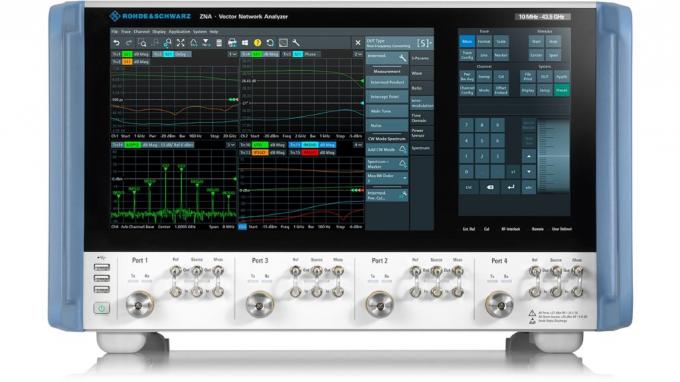

Rohde & Schwarz ZNA Vector Network Analyzers 10 MHz to 26.5/43.5/50/67 GHz Two/four port
Description of Rohde & Schwarz ZNA Vector Network Analyzers (10 MHz to 26.5/43.5/50/67 GHz )
The R&S®ZNA Vector network Analyzer is the high-end line in Rohde & Schwarz's vector network analyzer portfolio: it combines excellent RF performance, rich software capabilities and unique hardware concepts. The touch-only operation concept and device-centric approach make the R&S®ZNA a powerful, versatile and compact measurement system for both passive and active device characteristic measurements.
Features of Rohde & Schwarz ZNA Vector Network Analyzers (10 MHz to 26.5/43.5/50/67 GHz)
1.10 MHz to 26.5/43.5/50/67 GHz (R&S®ZNA26/43/50/67)
2.Two or four port models available
3.Excellent RF-performance
4.Up to four integrated sources
5.Unique and intuitive touch-only operation
5.Verasatile hardware options
Excellent RF performance of Rohde & Schwarz ZNA Vector Network Analyzers (10 MHz to 26.5/43.5/50/67 GHz)
High performance and fast operation for advanced measurement tasks
1.Accurate measurement of active and passive components
2.Wide dynamic range for characteristic measurement even on high blocking devices under test
3.Excellent stability, low track noise and first-class raw system data ensure high reliability
4.High accuracy for measurement applications
5.Wide power scanning range
Available model of Rohde & Schwarz ZNA Vector Network Analyzers (10MHz to 26.5/43.5/50/67GHz)
| model | ports | frequency |
connector |
R&S®ZNA26 |
2 ports/4 ports | 10MHz to 26.5GHz | 3.5 mm(m) |
R&S®ZNA43 |
2 ports | 10 MHz to 43.5 GHz | 2.92 mm(m)/2.4 mm(m) |
R&S®ZNA43 |
4 ports | 10 MHz to 43.5 GHz | 2.92 mm(m)/2.4 mm(m) |
R&S®ZNA50 |
2ports/4ports | 10 MHz to 50 GHz | 2.4mm(m) |
R&S®ZNA67 |
2ports/4 ports | 10 MHz to 67 GHz | 1.85mm(m) |
R&S®ZNA67EXT |
2ports/4 ports | 10 MHz to 110 GHz | 1.0mm(m) |
| R&S®ZNA67EXT | 2ports/4 ports | 10 MHz to 110GHz | 1.0 mm (male) |
List of Options of Rohde & Schwarz ZNA Vector Network Analyzers (10MHz to 26.5/43.5/50/67GHz)
| R&S ZNA26-B26 | Direct lF access |
| R&S ZNA26-B16 |
Direct source and receiver access for R&SZNA26 (2 ports) |
| R&S ZNA26-B16 | Direct source and receiver access for R&S ZNA26 (4 ports) |
| R8S ZNA26-B161 |
Direct source monitor access, port 1 for R&S ZNA26 (HW opt.) |
| R&S ZNA26-B163 |
Direct source monitor access, port 1+3 for R&SZNA26 (HW opt.) |
| R&S ZNA43-B16 | Direot source and receiver access for R&S ZNA43 (2 ports) |
| R&S ZNA43-B16 |
Direct source and receiver access for R&S ZNA43 (4 ports) |
| R&S ZNA43-B161 | Direct source monitor access, port 1 for R&S®ZNA43 (HW opt.) |
| R&S ZNA43-B163 | Direct source monitor access, port 1+3 for R&SZNA43 (HW opt.) |
| R&S ZNA50-B16 | Direct source and receiver accesss for R&S ZNA50 (2 ports) |
| R&S ZNA50-B16 |
Direct source and receiver accesss for R&S ZNA50 (4 ports) |
| R&S ZNA67-B16 | Direct source and receiver accesss for R&S ZNA67 (2 ports) |
| R&S ZNA67-B16 | Direct source and receiver accesss for R&S ZNA67 (4 ports) |
| R&S ZNA50-B161 |
ZNA50-B161 SRC MONITOR P1 before the source step attenuatorfor R&S ZNA50 |
| R&S ZNA50-B163 |
ZNA50-B163 SRC MONITOR ACCESS P1+P3 before the source step attenuatorfor R&S ZNA50 (4 ports) |
| R&S ZNA67-B161 |
ZNA67-B161 SRC MONITOR ACCESS P1 before the source step attenuator |
| R&S ZNA67-B163 |
ZNA67-B163 SRC MONITOR ACCESS P1+P3 before the source step attenuator |
| R&S ZNA-K1 | Spectrum analyzer mode for R&S ZNA |
| R&S ZNA-K2 | Time domain analysis (TDR) for R&S ZNA |
| R&S ZNA-K20 |
Extended time domain analysis incl. eye diagram, for R&SeZNA |
| R&S ZNA-K4 | Scalar mixer measurements and arbitrary freguency-converting measurements for R&S®ZNA |
| R&S ZNA-K5 | Vector corrected converter measurements for R&S ZNA (without reference mixer and phase reference), requires R&SeZNA-K4 |
| R&SBZNA-K6 | Phase coherent source control for R&S ZNA |
| R&SBZNA-K61 | True differential mode for R&S ZNA |
| R&SBZNA-K7 | Measurements on pulsed signals. Pulse configuration, pulse profile and pulse train measurement, requires R&S ZNA-K17 |
| R&S ZNA-K17 |
Increased lF bandwidth up to 30 MHz for R&S ZNA |
| R&S ZNA-K8 | Converter Control Software (for R&S ZNA, R&S ZVA-Zxxx,R&S ZCxxx) |
| R&S ZNA-K9 | Group delay measurements on frequency converters without LO access for R&.S ZNA (4 ports strongly recommended), requires R&.S ZNAxx-B16 and R&S ZNA-K4, aither with R&S ZNA26/43150/67-Z9cable set or R&S ZNA26/43-B213 Internal Combiner. |
| R&S ZNA-K19 | mHz frequency resolution for R&S ZNA |
| R&S ZNA-K30 | Noise figure measurement for R&S ZNA26/43 |
| R&S ZNA-K50 |
Realtime measurement uncertainty analysis Requires the Swiss Metrology Institute METAS Software: "VNA Tools" (free download from METAS website), for R&.S ZNA26,R&S ZNA43 |
| R&S ZNA-K50P | Realtime measurement uncertainty analysis for R&S ZNA. Including pre-installed Swiss Metrology Institute METAS Software: “VNA tools |
| R&S ZNA-K51 | Security write protection of internal harddisc for R&S ZNA |
| R&S ZNA-K210 | EAZY De-embedding (EZD) based on lEEE 370 for R&S ZNA |
| R&S ZNA-K220 | In-Situ De-embedding that covers lEEE 370 for R&S ZNA |
| R&S ZNA-K230 | Smart Fixture De-embedding (SFD) for R&S ZNA |
| R&S ZNA-K231 | Delta-L 4.0 PCB characterizationfor R&S ZNA |
| R&S ZNA-K980 | HUMS software option Health and Utilization Monitoring Service for R&S ZNA (software license) |
| R&S ZNA-K28 | Continuous data recording (SL) Continuous data acquisition: Data of periodically executed sweeps are recorded with equidistant time grid by means of a ciroularbuffer. (software license) |
| R&S ZNA-K100 | SNP assistant |
