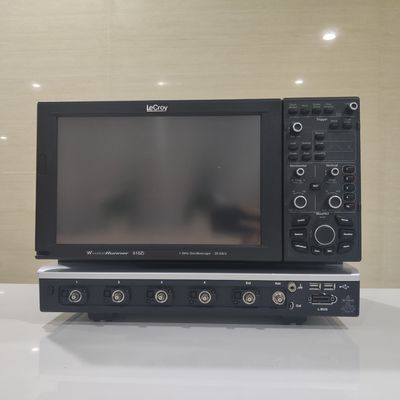

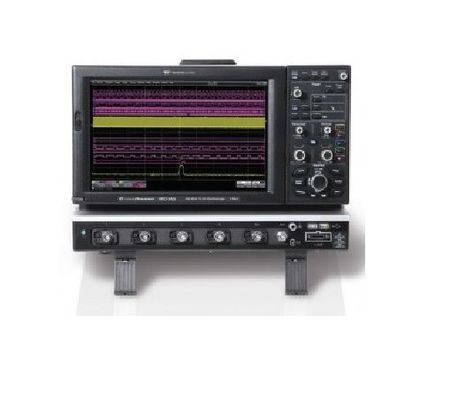

WAVERUNNER 610ZI LeCroy Digital Oscilloscope 4 Channel 20 GHz 80 GS/S Multi Purpose

WAVERUNNER 610ZI LeCroy Digital Oscilloscope 4 Channel 20 GHz 80 GS/S Multi Purpose

  • WAVERUNNER 610ZI LeCroy Digital Oscilloscope 4 Channel 20 GHz 80 GS/S Multi Purpose
  • WAVERUNNER 610ZI LeCroy Digital Oscilloscope 4 Channel 20 GHz 80 GS/S Multi Purpose
  • WAVERUNNER 610ZI LeCroy Digital Oscilloscope 4 Channel 20 GHz 80 GS/S Multi Purpose
  • WAVERUNNER 610ZI LeCroy Digital Oscilloscope 4 Channel 20 GHz 80 GS/S Multi Purpose
WAVERUNNER 610ZI LeCroy Digital Oscilloscope 4 Channel 20 GHz 80 GS/S Multi Purpose
Product Details:
Place of Origin: USA
Brand Name: LeCroy
Model Number: WAVERUNNER 610ZI
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Oscilloscope Frequency: 20 GHz
Channels: 4 Ch Sample Rate: 80 GS/s
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

LeCroy WAVERUNNER 610ZI

,

Multi Purpose LeCroy Digital Oscilloscope

,

4 Channel LeCroy Digital Oscilloscope

WAVERUNNER 610ZI LeCroy Digital Oscilloscope

Features:



WaveRunner 6 Zi combines the power of a fully featured multi-purpose oscilloscope, a dedicated logic analyzer for mixed signal design, and a protocol analyzer for serial data debug.



1. Industry leading performance— 400 MHz—4 GHz, 40 GS/s, 128 Mpts of analysis memory

2. 12.1" Widescreen (16x9) high resolution WXGA color touch screen display

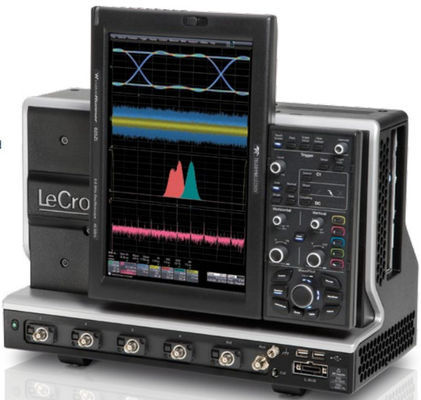

3. 90º rotating and tilting display for optimal viewing of signals

4. Small footprint, only 8.1" deep

5. Easy connectivity with two convenient USB ports on the front, two on the side

6. USBTMC (Test and Measurement Class) port simplifies programming

7. Deepest toolbox with more measurement, more math, more power



Bandwidth: 1 GHz

4 Channels

Sample Rate: 10 GS/s on 4 Channels; 20 GS/s on 2 Channels

Record Length: 16 Mpts

Resolution: 8-bit

256 Mpts/Ch (Optional)

±0.5% F.S. DC gain accuracy

55 dB SNR

1 mV vertical Sensitivity @ full bandwidth

Up to ±400 V offset capability

20 MHz, 100 MHz, 200 MHz, 350 MHz filters for additional noise iltering

12.1" Widescreen (16 x 9) high resolution

WXGA color touch screen display

90º rotating and tilting display for optimal viewing of signals

Small footprint, only 8.1" deep

Easy connectivity with two convenient USB ports on the front, two on the side

USBTMC (Test and Measurement Class) port simpliies programming

X-Stream™ II streaming architecture 10-100 times faster analysis and better responsiveness than other oscilloscopes



Details:



Most Comprehensive Serial Data Analysis

WaveRunner 6 Zi offers the most tools for serial data analysis. With over 30 trigger, decode, and compliance solutions, WaveRunner 6 Zi can address problems with unique, powerful views and automated tools. The unique measurement toolset, ProtoSync™, combines the oscilloscope view with a simultaneous view of data link layer decodes on the same instrument.

Excellent Signal Fidelity

The WaveRunner 6 Zi oscilloscope family features a pristine signal path that offers unmatched signal idelity with low noise. The WaveRunner HRO offers a 12-bit ADC, resulting in up to 55 dB Signal-to-Noise Ratio (SNR).

This performance is augmented by a huge offset and timebase delay adjustment to allow easy signal and ampliier performance assessment and zooming on vertical and horizontal signal characteristics.

Options:



WAVERUNNER 610ZI LeCroy Digital Oscilloscope 4 Channel 20 GHz 80 GS/S Multi Purpose 0



WR610ZI-M-64 64 Mpt/Ch (128 Mpt/Ch Interleaved) Standard Memory for WaveRunner 610Zi. Includes 4GB of RAM.
WR610ZI-STD 16 Mpt/Ch (32 Mpt/Ch Interleaved) Standard Memory for WaveRunner 610Zi. Includes 2GB of RAM.
WR6ZI-SPIBUS TD SPI Bus Trigger & Decode Option for WaveRunner Series Oscilloscopes
WR6ZI-UART-RS232BUS TD UART and RS232 Bus Trigger & Decode Option for WaveRunner 6Zi series





FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .



WAVERUNNER 610ZI LeCroy Digital Oscilloscope 4 Channel 20 GHz 80 GS/S Multi Purpose 1WAVERUNNER 610ZI LeCroy Digital Oscilloscope 4 Channel 20 GHz 80 GS/S Multi Purpose 2WAVERUNNER 610ZI LeCroy Digital Oscilloscope 4 Channel 20 GHz 80 GS/S Multi Purpose 3WAVERUNNER 610ZI LeCroy Digital Oscilloscope 4 Channel 20 GHz 80 GS/S Multi Purpose 4
