Multi Function Calibrator
Created with Pixso. Wavetek 4808 Multi Product Calibrator DCV ACV DCI ACI Multifunction DMM Calibrators

Wavetek 4808 Multi Product Calibrator DCV ACV DCI ACI Multifunction DMM Calibrators

Brand Name: Wavetek
Model Number: 4808
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Detail Information
Place of Origin:
USA
Certification:
FCC
Product Name:
Multi Product Calibrator
Amplitude Signals:
Up To 600 MHz
Repair Support:
Calibration Only
Calibration Support:
Contact Us
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
Packaging Details:
carton
Supply Ability:
in stock
Highlight:

Wavetek 4808

,

Wavetek 4808 Multi Product Calibrator

,

DCI ACI Multifunction DMM Calibrators

Product Description

Datron Wavetek 4808 Multifunction Calibrator ACV DCV ACI DCI Ohms Wavetek 4808




Multifunction DMM Calibrators

o DCV, ACV, DCI, ACI and Q Functions

o True lkV AC Performance from a Single Unit

o 4808 for Ultimate in Standards Laboratory Performance

o 4800 for Meter Calibration to 7 1/2 Digit Accuracy

o 4805 for Meter Calibration to 5 1/2, Digit Accuracy

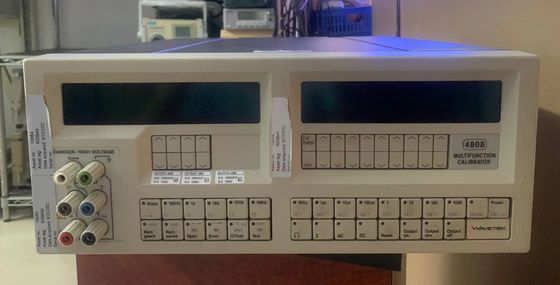

Wavetek 4808 Multi Product Calibrator DCV ACV DCI ACI Multifunction DMM Calibrators 0


Used either as a component in an automated calibration system or as a standalone bench instrument, the DatTon range of Multifunction calibrators offers the mosl Esteffective solution to toelay's calibration problems. Initial purchase costs are reduced by the Inclusion of a full capability IOOOV DC and AC power amplifier in the calibrator chassis, enabling a single unit 10 cover the widest possible calibration workload. The options available on the 4808 and 4800 allow an instrument to be conflgured as Dev only. ACV only. or multifunction. enabling configuration of a calibrator that meets today's requirements while retaining the flexibility to upgrade capabilities as requirements change



Specifications:



DCV 90 day ±1°C specifications to 1 + 0.15 ppm.

Calibrate DMMs up to 8.5 digits

ACV, DCV, AVI, DCI & Ohms (with options)

1kV AC output

GPIB interface

Used either as a component in an automated calibration system or as a standalone bench instrument, the Datron range of Multifunction calibrators offers the most cost­ effective solution to today's calibration problems. Initial purchase costs are reduced by the inclusion of a full capability 1000V DC and AC power amplifier in the calibrator chassis, enabling a single unit to cover the widest possible calibration workload

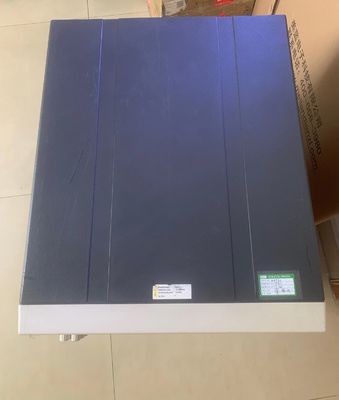

Wavetek 4808 Multi Product Calibrator DCV ACV DCI ACI Multifunction DMM Calibrators 1



List of Options

010 DC Voltage function to +/- 200V

020 AC Voltage to 200V

030 Integeral 1000V amplifier for AC/DC (Requires option 10, 20, or both)

040 Current Converter (DC Current requires opt 010, AC Current requires opt 020)

050 Resistance function (Requires opt 10 or 20)

060 Current Range extension to 11Amps. (Includes Datron 4600 and all necessary cables)

070 Wide-band to 3.5V/30 Mhz. Increases Height by 1U. Output is type N (f) connector. (requires opt 020)

080 115 VAC 60Hz line operation.

081 115 VAC 50Hz line operation.

082 115 VAC 400Hz line operation.

090 Rack Mount Kit. (Std 19 IN)

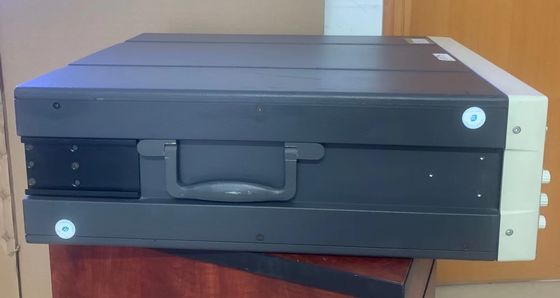

Wavetek 4808 Multi Product Calibrator DCV ACV DCI ACI Multifunction DMM Calibrators 2

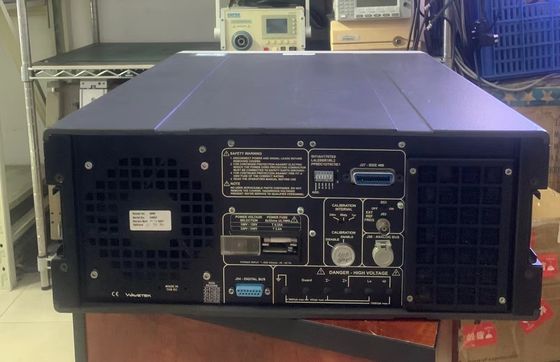

Wavetek 4808 Multi Product Calibrator DCV ACV DCI ACI Multifunction DMM Calibrators 3Wavetek 4808 Multi Product Calibrator DCV ACV DCI ACI Multifunction DMM Calibrators 4
