| Brand Name: | Keysight (Agilent) |
| Model Number: | N4433A |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |

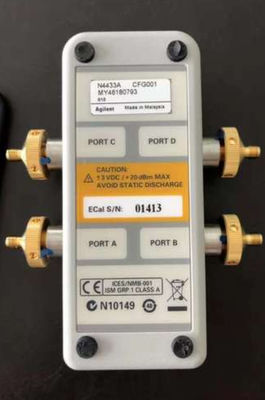

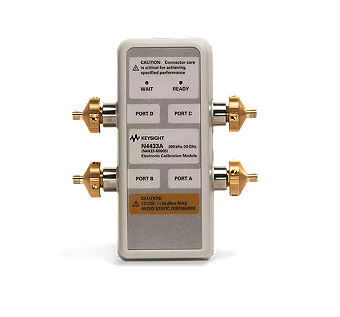

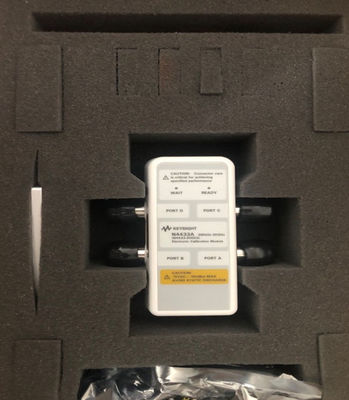

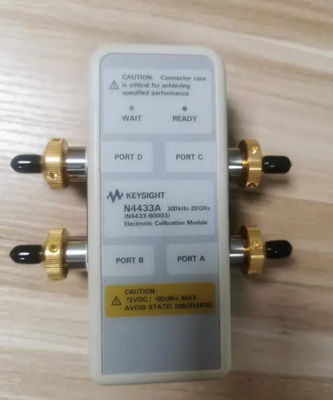

Keysight Agilent N4433A 4-port RF Electronic Calibration ECal Module
Description of Keysight Agilent N4433A
The Keysight N4433A Microwave electronic calibration (ECal) module makes calibration of vector network analyzers fast, easy, and accurate. ECal is a precision, single-connection calibration technique for your vector network analyzer. Performing a full three- or four-port calibration takes less than half the time and number of connections using ECal versus mechanical cal kits. Furthermore, the accuracy of the calibration is comparable to mechanical methods. Traditional mechanical calibrations require intensive operator interaction, which is prone to errors. With ECal, the operator simply connects the ECal module to the network analyzer and the software controls the rest.
ECal modules are transfer standards capable of transferring the factory calibration accuracy to your network analyzer. The Keysight PNA and ENA series of network analyzers controls the N4433A module directly through a USB interface. PNA Series network analyzers require firmware revision 2.5 or higher.
Overview and Features of N4433A 4-port RF Electronic Calibration ECal Module
| 010 | Four 3.5 mm female connectors |
| 101 | Port A connector is 3.5 mm female |
| 102 | Port A connector is 3.5 mm male |
| 150 | Wooden storage box |
| 1A7 | ISO 17025 compliant calibration |
| 201 | Port B connector is 3.5 mm female |
| 202 | Port B connector is 3.5 mm male |
| 301 | Port C connector is 3.5 mm female |
| 302 | Port C connector is 3.5 mm male |
| 401 | Port D connector is 3.5 mm female |
| 402 | Port D connector is 3.5 mm male |
| 801 | Label for mixed connectors |
| A6J | ANSI Z540 compliant calibration |
| R-50C-011-3 | Agilent Calibration - 3 years |
| R-50C-011-5 | Agilent Calibration - 5 years |
| R-50C-016-3 | ISO 17025 Compliant Calibration - 3 years |
| R-50C-016-5 | ISO 17025 Compliant Calibration - 5 years |
| R-50C-021-3 | ANSI Z540-1-1994 Calibration - 3 years |
| R-50C-021-5 | ANSI Z540-1-1994 Calibration - 5 years |
| UK6 | Commercial calibration certificate with test data |
FAQ:
1. How can I ask any other question ?
You can contact us online or leave us messages below .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
4. What is your payment term?
100% T/T payment before shipment.
|
|
