| Brand Name: | Tektronix |
| Model Number: | DPO7104C |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |

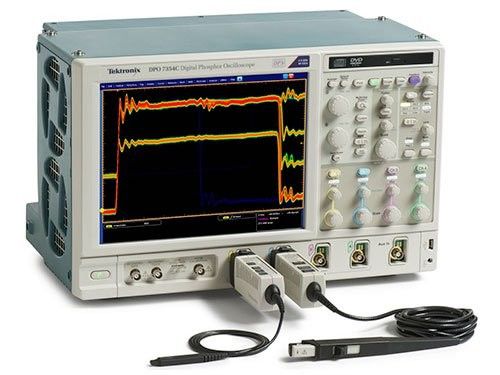

Bandwidths up to 3.5 GHz and sampling rates up to 40 GS/s make the DPO7000C Series a natural choice for analyzing critical, high-speed signals. Over 30 analysis packages provide in-depth measurements for communications standards, jitter analysis, memory bus standards, vector analysis and more. Plus, the Windows operating system lets you run your own analysis software right on the instruments.

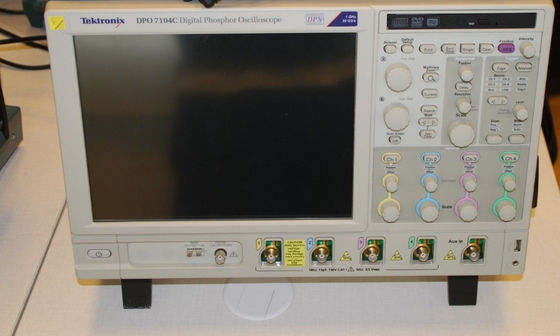

Features of DPO7104C Digital Phosphor Oscilloscope
| 2RL | Extended record length - 125M max, 25 M/Ch |
| 2SR | Double maximum real-time sample rate - 40/20/10 GS/s on 1/2/4ch |
| 3 | CALIBRATION SERVICE 3 YRS. PROVIDES TRACEABLE OR FUNCTIONAL VERIFICATION EVENTS WHICHEVER ARE APPLICABLE TO THE PRODUCT. CALS ARE AT TEKTRONIX RECOMMENDED INTERVAL DURING THE COVERAGE PERIOD. CAL COVERAGE INCLUDES THE MANUFACTURERS CAL + 2 |
| 5 | CALIBRATION SERVICE 5 YRS. PROVIDES TRACEABLE OR FUNCTIONAL VERIFICATION EVENTS WHICHEVER ARE APPLICABLE TO THE PRODUCT. CALS ARE AT TEKTRONIX RECOMMENDED INTERVAL DURING THE COVERAGE PERIOD. CAL COVERAGE INCLUDES THE MANUFACTURERS CAL + 4 |
| 5RL | Extended record length - 250M max, 50M/Ch |
| A0 | North America |
| A1 | Universal EURO |
| A10 | China |
| A11 | India |
| A12 | Brazil |
| A2 | United Kingdom |
| A3 | Australia |
| A5 | Switzerland |
| A6 | Japan |
| A99 | No Power Cord or AC Adapter |
| C3 | CALIBRATION SERVICE 3 YRS. PROVIDES TRACEABLE OR FUNCTIONAL VERIFICATION EVENTS WHICHEVER ARE APPLICABLE TO THE PRODUCT. CALS ARE AT TEKTRONIX RECOMMENDED INTERVAL DURING THE COVERAGE PERIOD. CAL COVERAGE INCLUDES THE MANUFACTURERS CAL + 2 |
| C5 | CALIBRATION SERVICE 5 YRS. PROVIDES TRACEABLE OR FUNCTIONAL VERIFICATION EVENTS WHICHEVER ARE APPLICABLE TO THE PRODUCT. CALS ARE AT TEKTRONIX RECOMMENDED INTERVAL DURING THE COVERAGE PERIOD. CAL COVERAGE INCLUDES THE MANUFACTURERS CAL + 4 |
| D1 | CALIBRATION DATA REPORT |
| D3 | CALIBRATION DATA REPORT 3 YEARS (WITH OPTION C3) |
| D5 | CALIBRATION DATA REPORT 5 YEARS (WITH OPTION C5) |
| DB | DPO Demonstration Board |
| DDRA | DDR Memory Bus Analysis (requires DJA) |
| DDU | Distributor Demonstration Unit |
| DJA | Jitter and Eye Analysis Tools - Advanced (DPOJET) |
| ET3 | Ethernet Compliance Testing |
| G3 | Three Year Gold Care Plan. Includes expedited repair of all product failures including ESD and EOS, access to a loaner product during repair or advanced exchange to reduce downtime, priority access to Customer Support among others |
| G5 | Five Year Gold Care Plan. Includes expedited repair of all product failures including ESD and EOS, access to a loaner product during repair or advanced exchange to reduce downtime, priority access to Customer Support among others |
| JA3 | Jitter and Timing Measurements - JIT 3 Advanced |
| L0 | English manual |
| L1 | French manual |
| L10 | Russian Manual |
| L3 | German manual |
| L5 | Japanese manual |
| L7 | Simple Chinese Manual |
| L8 | Standard Chinese Manual |
| L9 | Korean manual |
| L99 | NO MANUAL |
| LSA | Low-speed Automotive Serial Analysis bundle includes CAN/LIN Trigger, Decode, and Analysis |
| LT | Waveform Limit Testing |
| MTM | Mask Testing, Includes Hardware Clock Recovery on DPO7254/7355 |
| PS1 | Power Solution Bundle: DPOPWR, P5205, TCP0030, TPA-BNC, 067-1686-XX (Deskew Fixture) |
| PWR | Power Measurement and Analysis |
| R3 | REPAIR SERVICE 3 YEARS (INCLUDING WARRANTY) |
| R3DW | REPAIR SERVICE COVERAGE 3 YEARS (INCLUDES PRODUCT WARRANTY PERIOD); 3 YEAR PERIOD STARTS AT TIME OF CUSTOMER INSTRUMENT PURCHASE. |
| R5 | REPAIR SERVICE 5 YEARS (INCLUDING WARRANTY) |
| R5DW | REPAIR SERVICE COVERAGE 5 YEARS (INCLUDES PRODUCT WARRANTY PERIOD); 5 YEAR PERIOD STARTS AT TIME OF CUSTOMER INSTRUMENT PURCHASE. |
| SR-COMP | Computer Serial Triggering and Analysis (RS-232/422/485/UART) |
| SR-DPHY | MIPI D-PHY (DSI1 / CSI2) Serial Analysis |
| SR-EMBD | Embedded Serial Triggering and Analysis (I2C, SPI) |
| SR-USB | USB Serial Triggering and Analysis |
| SRCOMP | Computer Serial Triggering and Analysis (RS-232/422/485/UART) |
| SRCUST | Custom Serial Analysis Kit for Developers |
| SRDPHY | MIPI D-PHY (DSI1 / CSI2) Serial Analysis |
| SREMBD | Embedded Serial Triggering and Analysis (I2C, SPI) |
| SRUSB | USB Serial Triggering and Analysis |
| SSD | Additional Removable Disk - Solid State Drive (customer installable) |
| SVE | SignalVu Essentials - Vector Signal Analysis Software for Oscilloscopes |
| SVM | General Purpose Digital Modulation Analysis. Requires Opt. SVE |
| SVO | Flexible OFDM Analysis, Requires Opt. SVE |
| SVP | Advanced Signal Analysis (including pulse measurements), Requires Opt. SVE |
| SVT | Settling Time, Frequency, and Phase. Requires Opt. SVE |
| USB | USB 2.0 Compliance Testing |
| VET | Visual Trigger and Search |
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What is your payment term?
100% T/T payment before shipment.
3. How can I ask any other question ?
You can contact us online or leave us messages below .
|
|
