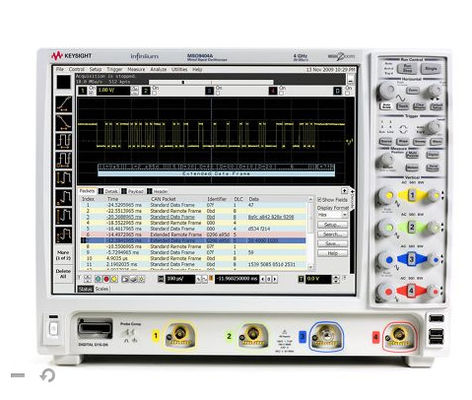

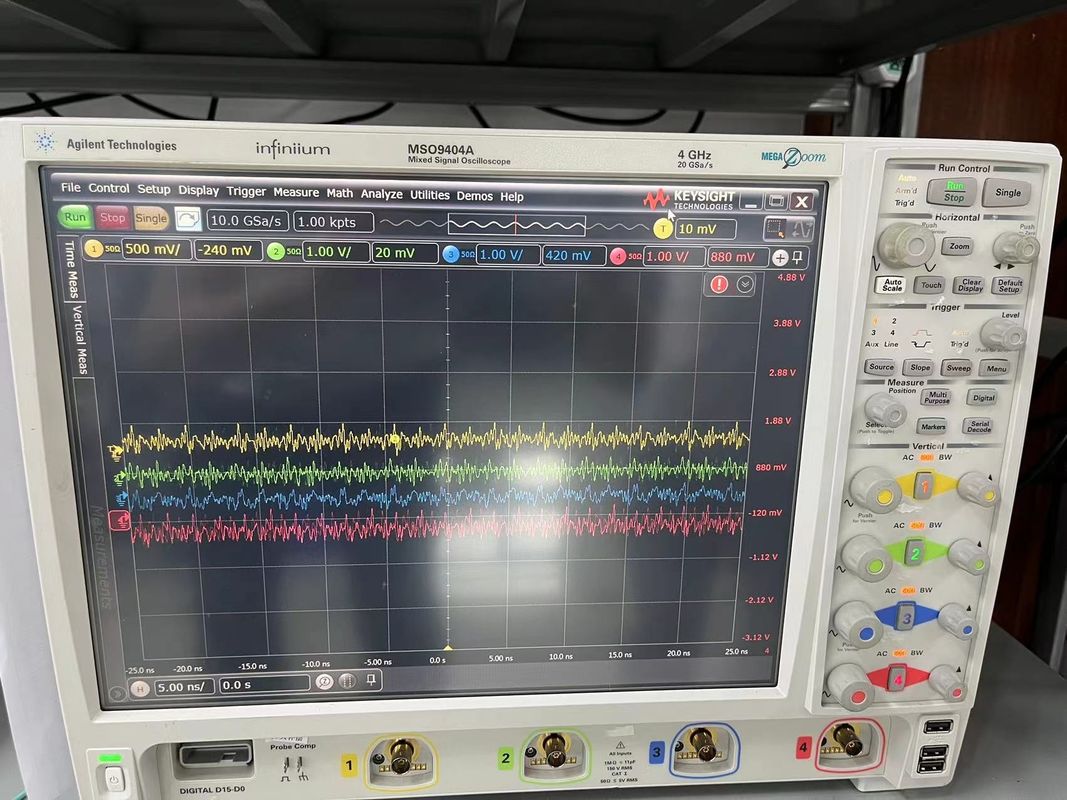

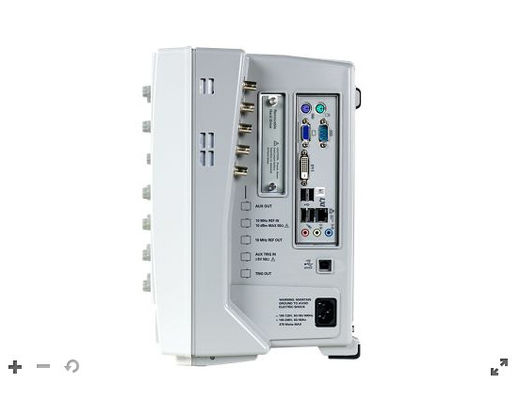

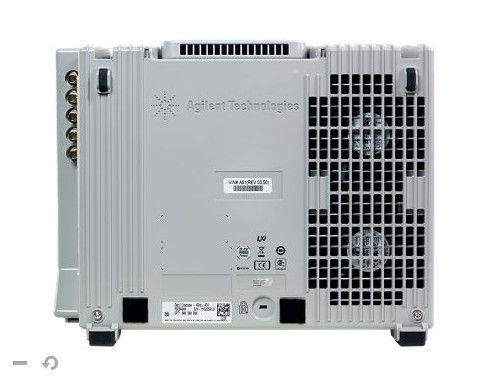

Infinium Agilent Keysight MSO9404A Mixed Signal Oscilloscope 4GHz with 15'' XGA display

Infinium Agilent Keysight MSO9404A Mixed Signal Oscilloscope 4GHz with 15'' XGA display

  • Infinium Agilent Keysight MSO9404A Mixed Signal Oscilloscope 4GHz with 15'' XGA display
  • Infinium Agilent Keysight MSO9404A Mixed Signal Oscilloscope 4GHz with 15'' XGA display
  • Infinium Agilent Keysight MSO9404A Mixed Signal Oscilloscope 4GHz with 15'' XGA display
  • Infinium Agilent Keysight MSO9404A Mixed Signal Oscilloscope 4GHz with 15'' XGA display
  • Infinium Agilent Keysight MSO9404A Mixed Signal Oscilloscope 4GHz with 15'' XGA display
Infinium Agilent Keysight MSO9404A Mixed Signal Oscilloscope 4GHz with 15'' XGA display
Product Details:
Place of Origin: Malasiya
Brand Name: Keysight (Agilent)
Model Number: MSO9404A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: MSO9404A Mixed Digital Oscilloscope Form Factor: Benchtop

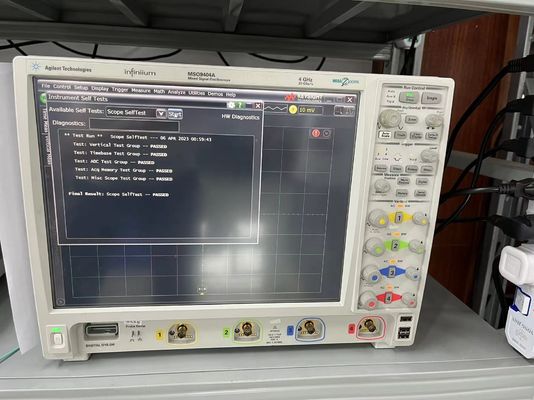

Condition: Pre-Owned Functions: Tested, In Full Working Conditions
Bandwidth: 4GHz Sample Rate: 20 GSa/s
High Light:

Keysight MSO9404A Mixed Signal Oscilloscope

,

4GHz Mixed Signal Oscilloscope

,

MSO9404A Oscilloscope With XGA Display

Keysight Agilent MSO9404A Mixed Digital Oscilloscope Infiniium High Performance Oscilloscope 4GHz,4 Analog Plus 16 Digital Channels



Description of Keysight Agilent MSO9404A Mixed Digital Oscilloscope



Agilent’s Infiniium MSO9404A, equipped with a 15” XGA display, comes in a package that is just 9” (23 cm) deep and weighs only 26 pounds (11.8 kg) to preserve your limited bench space. This scope is engineered to give you the broadest measurement capability available to meet your needs both today and in the future. 16 fully integrated, time-aligned digital channels give you insight into timing relationships and allow precise triggering. Take advantage of optional integrated protocol viewers to quickly isolate physical layer issues causing errors. Customize your toolset with our debug and compliance packages to tailor the scope to your needs.



Overview and Features of Keysight Agilent MSO9404A



  • 4 GHz bandwidth
  • 4 analog plus 16 digital channels
  • Get 3 instruments in 1: scope, logic analyzer, and protocol analyzer
  • Capture more data with 20 Mpts per channel memory, upgradable to 1 Gpts
  • See more signal detail with 20 GSa/s sample rate and InfiniiScan advanced triggering
  • Expand your measurement capabilities with the widest range of compliance, protocol and analysis applications: serial protocol, FPGA dynamic probe, jitter analysis including EZJIT, MATLAB and more

Get three instruments in one

  • Scope: The powerful features of our Infiniium Series oscilloscopes with InfiniiScan advanced triggering coupled with superior specifications give you precise signal representation
  • Logic Analyzer: 16 fast, deep-memory digital channels allow you to see critical data values and timing relationships.
  • Protocol analyzer: Choose integrated protocol viewers to quickly drill down into packets and time correlate between protocol and physical layers.



List of Options
MSO9000-PLG Continental European Power Cord - Only For EU DISTR W MULT Power Cord Standards
MSO9000A-001 RS-232/UART Protocol Triggering and Decode - installed
MSO9000A-002 EZJIT jitter analysis software - installed
MSO9000A-003 High-Speed SDA and Clock Recovery - installed
MSO9000A-004 EZJIT Plus jitter analysis software - installed
MSO9000A-005 USB 2.0 Protocol Triggering and Decode - installed
MSO9000A-006 PCI e 1.1 Protocol Triggering and Decode - installed
MSO9000A-007 I2C/SPI Protocol Triggering and Decode - installed
MSO9000A-008 CAN, LIN, FlexRay Protocol Triggering and Decode - installed
MSO9000A-009 InfiniiScan - installed
MSO9000A-010 User-Defined Function - installed
MSO9000A-011 App Remote Programming Interface - installed
MSO9000A-012 Infiniium Signal Equalization - installed
MSO9000A-013 InfniiSim Basic - installed
MSO9000A-014 InfiniiSim Advanced - installed
MSO9000A-015 Power Measurement application software - installed
MSO9000A-016 Xilinx FPGA dynamic probe - installed
MSO9000A-017 Altera FPGA dynamic probe - installed
MSO9000A-018 Protocol triggering and decode for: I2C, SPI, and RS-232/UART - installed
MSO9000A-019 MIPI D-Phy Protocol Triggering and Decode – installed
MSO9000A-021 Ethernet compliance application - installed
MSO9000A-029 USB2.0 compliance application - installed
MSO9000A-031 DDR and LPDDR Compliance Test Application – installed
MSO9000A-032 DDR2 and LPDDR2 Compliance Test Application – installed
MSO9000A-033 DDR3 up to 800MHz validation application - installed
MSO9000A-035 MIPI D-Phy Compliance application – installed
MSO9000A-038 SATA (1.5 Gbs) Triggering and Decode - installed
MSO9000A-040 User Defined Application -Installed
MSO9000A-042 JTAG Protocol Decode - installed
MSO9000A-061 MATLAB - Basic Digital Analysis Package
MSO9000A-062 MATLAB - Standard Digital Analysis Package
MSO9000A-100 Memory - 100Mpts/ch installed
MSO9000A-1CM Rack Mount Kit Option
MSO9000A-200 Memory - 200Mpts/ch installed
MSO9000A-500 Memory - 500Mpts/ch installed
MSO9000A-50M Memory - 50 Mpts/ch installed
MSO9000A-801 Removable Hard Drive - installed
MSO9000A-820 DVD-RW drive
MSO9000A-A6J ANSI Z540 Compliant Calibration
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C Return to Agilent Warranty - 3 years
R-51B-001-5C Return to Agilent Warranty - 5 years
R-51B-001-C Return to Agilent Warranty - 1 year
FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .
