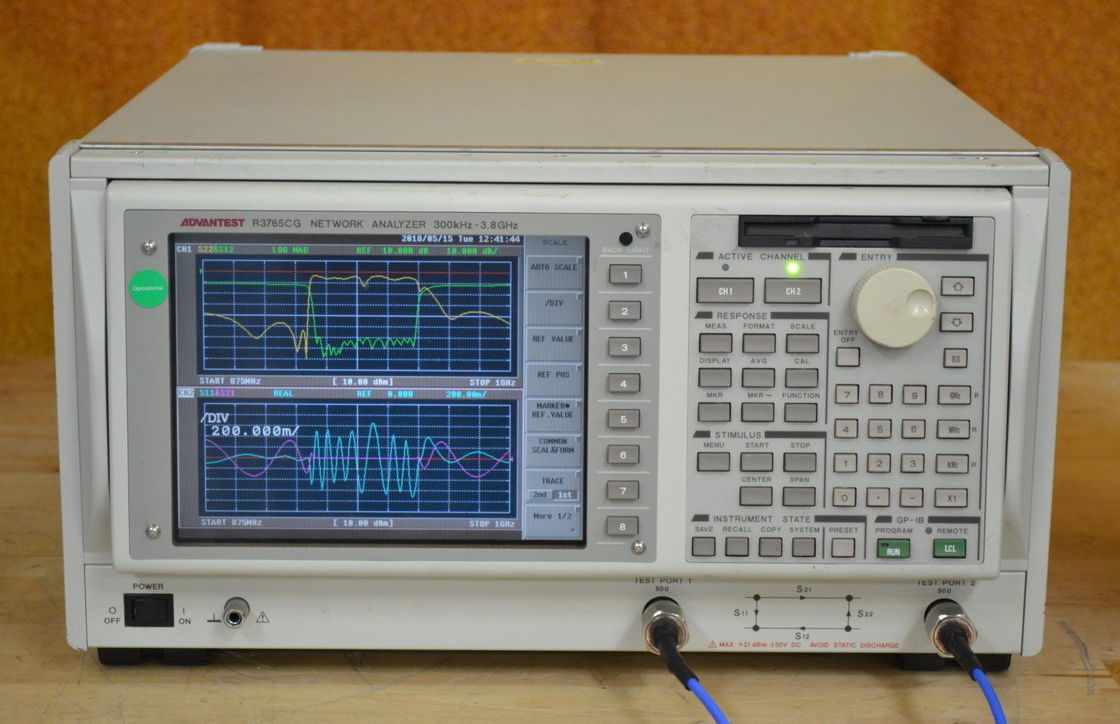

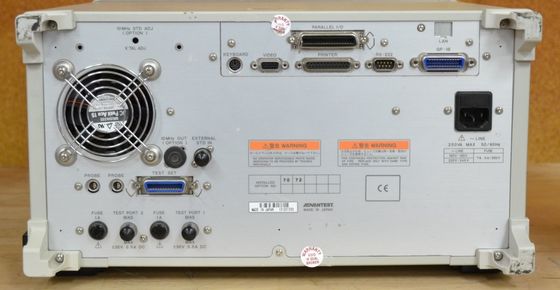

Description of Advantest R3765CG Network Analyzer

The Advantest R3765CG network analyzer is a vector network analyzer that incorporates a new RF circuit analysis technique. The measuring frequency range of the R3765CG is from 300 kHz to 3.8 GHz .

ADVANTEST unique high-speed signal processing technology enables a faster measurement speed. In addition to the basic model, a model with built-in bridge transmission/reflection characteristic measurement and a model with a built-in S-parameter test set for forward and reverse measurement are also available.

An optional 3-port test set or 4-port test set can be added. By installing additional input channels in the receive section, the multi-port models allow perfectly simultaneous measurement of two different measurement paths, revolutionizing the measurement efficiency of multi-port devices.

The 8.4-inch color TFT liquid crystal display of the R3765CG allows the waveform display can be split into four windows. An independent measurement path can be selected for each windows, thus allowing the simultaneous display of up to eight parameters in four paths.

Analysis of measurement items in a wide range can be completed instantaneously. By executing 2-port full calibration, measurement speed can be increased to 0.15ms per point. The built-in 3-port test set model (option) can shorten measuring time. The system eliminates the need for a change-over switch and enables measurement of two different paths simultaneously.

The sweep time per point has been shortened further to 0.15ms. The R8384 network analyzer also features faster register save and recall functions in addition to reduced sweep time to enhance overall throughput. The R3765CG achieves a further reduction of measuring time. This series of network analyzers supports today's increasingly diverse measurement environments and significantly expands RBW setting resolution to enable optimal setting for both high-accuracy and high-speed measurement.

The R3765CG provides users with four display channels. Each channel is capable of two trace displays, allowing simultaneous display of a total of eight traces. Users can also freely select the measurement path independently for each channel. This function is particularly effective for measurement of multiple port devices.

Key Points

High Speed, High Accuracy Measurement

Easy Operation

Revolution in Multi Port Measurement

Simultaneous Display and Analysis of Multi Port Parameters

PC Friendly

Data save function (TS, CSV formats)

Matching network function

Impedance conversion function

List Of Options
