IQxel-80 Discontinued Industry Wireless Connectivity Test Systems

IQxel-80 Discontinued Industry Wireless Connectivity Test Systems

  • IQxel-80 Discontinued Industry Wireless Connectivity Test Systems
  • IQxel-80 Discontinued Industry Wireless Connectivity Test Systems
  • IQxel-80 Discontinued Industry Wireless Connectivity Test Systems
IQxel-80 Discontinued Industry Wireless Connectivity Test Systems
Product Details:
Place of Origin: Germany
Brand Name: LitePoint
Model Number: IQxel-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Wireless Connectivity Test Systems Configurations: 80 MHz Or 160 MHz
Condition: Pre-Owned Functions: Tested, In Full Working Conditions

IQxel-80 Discontinued Industry Wireless Connectivity Test Systems
Description of LitePoint IQxel-80

IQxel is a one-box connectivity test system enabling physical layer wireless test coverage of WLAN and Bluetooth enabled devices. The IQxel is available in two configurations, 80 MHz or 160 MHz,which enables high-performance testing of 802.11ac-enabled wireless devices.

Flexible MIMO Test Solution

  • True MIMO technology testing supported with independent, non-correlated signals
  • Use single or multiple, synchronized IQxel units
  • Flexible architecture allows MIMO needs to be scaled

Optimized for the Lab or Manufacturing

  • Rugged design built for high volume device manufacturing environments
  • Fully calibrated RF connections simplifies manufacturing test and ensures best possible measurement accuracy
  • Compact 2U-high chassis takes a minimum of space in equipment racks
  • Easy to deploy–fully integrated processing capabilities mean minimal data transfer times and no external PC controllers or software

Technology Options

  • Wi-Fi, 802.11ac
  • Wi-Fi, 802.11a/b/g/j/n/p
  • Wi-Fi, 802.11ah
  • Supports all combinations of 802.11ac channel bandwidths: 80, 80+80 and 160 MHz
  • Supports differential analog I and Q signals I/O for baseband test applications

When & Where to Use the IQxel for Testing?

  • For lab or manufacturing environments
  • For products in the product characterization or PCB-level manufacturing lifecycle stages
  • For 802.11ac-enabled networking, computing, gaming and IoT devices



Overview and Features of ZNB20 Vector Network Analyzer

  • Frequency range from 9 kHz up to 20 GHz
  • Wide dynamic range of up to 140 dB
  • Short sweep times, e.g. 4 ms for 401 points
  • High temperature stability of typ. 0.01 dB/°C
  • Wide power sweep range of 98 dB
  • Wide range of IF bandwidths from 1 Hz to 10 MHz
  • Manual and automatic calibration
  • Large, high-resolution 12.1" screen
  • Touchscreen user interface
  • Two or four ports
  • Four-port model with two independent generators
  • Expansion to up to 48 ports using switch matrices



System Capabilities and Features


Supports full range of WLAN and Bluetooth device testing



       • Ability to fully test enhanced capabilities of IEEE 802.11ac specification that demands
         increased bandwidth, higher modulation order, and more stringent EVM requirements
       • Ability to support 256-QAM constellation mapping
       • Ability to test all existing IEEE 802.11 specifications that includes 802.11 a/b/g/n/p/j/ac
       • Fully backward compatible with existing LitePoint WLAN test systems
       • Ability to test all Bluetooth device standards (1.x, 2.x, 3.0, 4.x, 5)
       • Ability to test ZigBee standards (IEEE 802.15.4)
       • Ability to test Z-Wave (ITU-T G.9959)
       • Ability to test WiSUN MR-FSK (IEEE 802.15.4g)
       • Ability to test DECT standards (ETSI EN 300 176-1)


 High test throughput for manufacturing


       • Proprietary advanced algorithms for test speed optimization
       • Built-in ping pong to minimize idle time





Specification Highlights

         Wide Range of Supported Wireless Standards

         • 802.11a/b/g/n/p/j
         • 802.11ac (Optional)
         • Bluetooth 1.x, 2.x, 3.0, 4.x, 5 (Optional)
         • DECT (Optional)
         • ZigBee/IEEE 802.15.4 (Optional)
         • Z-Wave / ITU-T G.9959 (Optional)
         • WiSUN MR-FSK / IEEE 802.15.4g (Optional)


 Frequency Range
          • 860 to 960 MHz (RF1, RF2)
         • 1770 to 2100 MHz (RF1, RF2)
         • 2200 to 2600 MHz (RF1, RF2)
         • 4900 to 6000 MHz (RF1, RF2)


Instrument IF Bandwidth
         • 120 MHz (IQxel-80)
         • 120+120 MHz (IQxel-160)


Output Power (Maximum)
         • +9 dBm (1770 to 2100 MHz, 2200 to 2600 MHz)
        • +7 dBm (4900 to 6000 MHz)





Our service

One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.




FAQ

1. Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below.

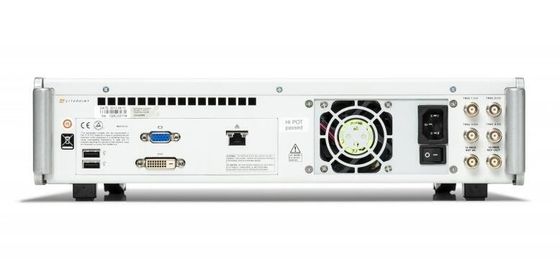

IQxel-80 Discontinued Industry Wireless Connectivity Test Systems 0IQxel-80 Discontinued Industry Wireless Connectivity Test Systems 1IQxel-80 Discontinued Industry Wireless Connectivity Test Systems 2
