| Place of Origin: | Malaysia |
| Brand Name: | Keysight (Agilent) |
| Model Number: | 8720ES |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 1~3 Working Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | in stock |
| Product Name: | S-parameter Network Analyzer | Frequency: | 50 MHz To 20 GHz |
|---|---|---|---|
| Form Factor: | Rackmount ( /1CM /1CP ) | Type: | Vector Network Analyzer (VNA) |
| Condition: | Pre-Owned | Functions: | Tested, In Full Working Conditions |

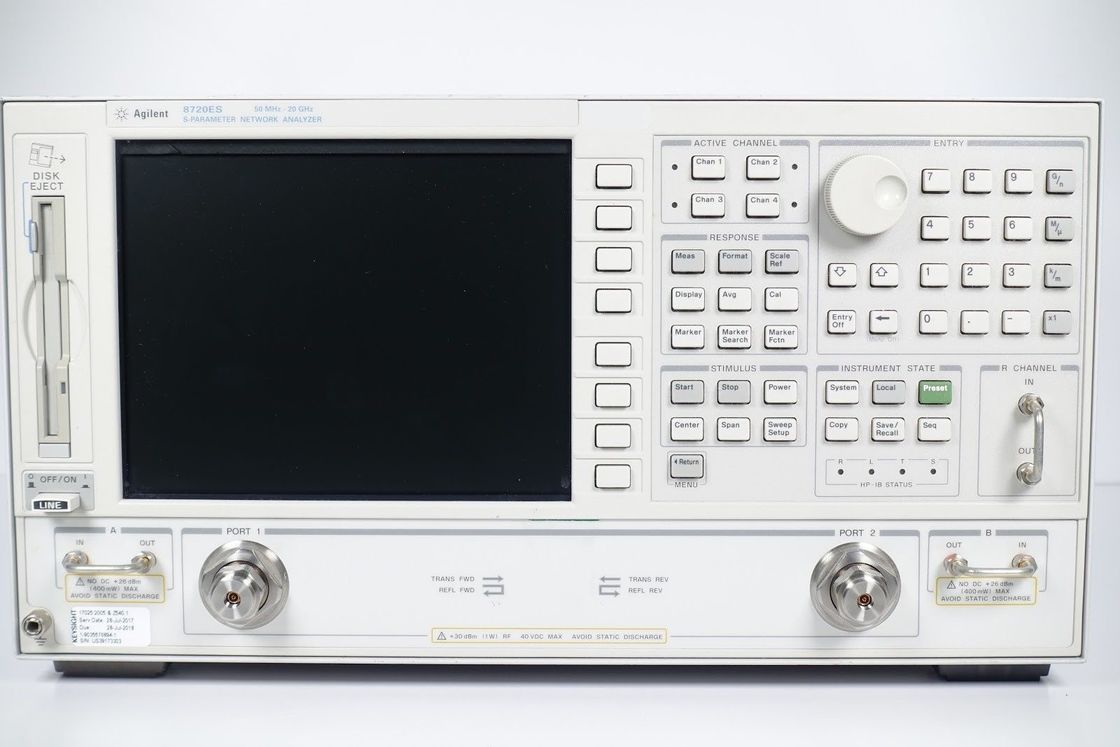

Description of Keysight Agilent 8720ES
The 8720ES models contain a 55-dB step attenuator as a standard feature for wide output power range. Enhanced response calibration provides improved accuracy for transmission measurements by correcting for source match without the speed penalty of a full two-port calibration.
Adapter-removal calibration provides greater accuracy for measurements of non-insertable devices, such as devices with the same sex connectors on both ports or different connector types on port 1 and 2. The 8720 analyzers have a fast source that is fully synthesized, in either swept or stepped modes, with stability and accuracy within 10 ppm (typical). The 8720ES combines a fast, synthesized source with an integrated test set covering frequencies from 50MHz to 20GHz.
Overview and Features of 8720ES Network Analyzer
|
007
|
Mechanical Transfer Switch |
|
010
|
Time Domain Capability |
|
012
|
Direct Sampler Access |
|
050
|
Standard Test Set Configuration |
|
085
|
High power test set: automatically includes mechanical transfer switch and direct sampler access |
|
089
|
Frequency off-set mode for mixer measurement capability |
|
0B0
|
Do not include manuals |
|
0B1
|
Add Manual Set |
|
0BV
|
Service Documentation, Component Level |
|
0BW
|
Service Documentation, Assembly Level |
|
1BN
|
Military Standard 45662A Calibration Certification |
|
1BP
|
Military Standard 45662A Calibration with Test Data |
|
1CM
|
Rackmount Kit |
|
1CP
|
Rackmount and Handle Kit |
|
1D5
|
High Stability Frequency Reference |
|
400
|
Four-Sampler Test Set |
|
701
|
Three Sampler Test Set |
|
702
|
Standard solid state transfer switch |
|
703
|
No sampler access |
|
704
|
Standard configuration with no mixer measurement capability |
|
800
|
Standard prog/service/user |
|
860
|
Additional material required for combination #704 and #050 |
|
861
|
Additional material required for combination #085 and #704 |
|
862
|
Additional material required for combination #089 and #050 |
|
863
|
Additional material required for combination #085 and #089 |
|
864
|
Additional material required for combination #050 and #701 |
|
865
|
Additional material required for combination #703 and #050 |
|
ABF
|
France Quick Users Guide (French localization) |
|
ABJ
|
Japan Quick Users Guide (Japanese localization) |
|
H32
|
Configurable Test Set |
|
H42
|
Option 012 and 400, IF links for channels A,B and R1 on front panel, R2 on rear panel. |
|
H86
|
High Power option 400. |
|
H87
|
High Power Configuration Test Set option 400. |
|
R51B
|
RETURN TO AGILENT WARRANTY & SRVC PLAN |
|
RMKT
|
Keysight Refurbished Product (Do Not Use - Certiprime Option) |
|
UK6
|
Commercial calibration with test results data |
|
W50
|
5 Year Customer Return Repair Service |
