Multipurpose N5230A PNA-L Network Analyzer with up to 6 13.5 20 40 or 50 GHz

Multipurpose N5230A PNA-L Network Analyzer with up to 6 13.5 20 40 or 50 GHz

  • Multipurpose N5230A PNA-L Network Analyzer with up to 6  13.5  20  40 or 50 GHz
  • Multipurpose N5230A PNA-L Network Analyzer with up to 6  13.5  20  40 or 50 GHz
  • Multipurpose N5230A PNA-L Network Analyzer with up to 6  13.5  20  40 or 50 GHz
  • Multipurpose N5230A PNA-L Network Analyzer with up to 6  13.5  20  40 or 50 GHz
  • Multipurpose N5230A PNA-L Network Analyzer with up to 6  13.5  20  40 or 50 GHz
Multipurpose N5230A PNA-L Network Analyzer with up to 6  13.5  20  40 or 50 GHz
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight (Agilent)
Model Number: N5230A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: PNA Network Analyzer Frequency: 10 MHz - 50 GHz ( /520 /525 )
Form Factor: Rackmount ( /1CM /1CP ) Type: Vector Network Analyzer (VNA)
Condition: Pre-Owned Functions: Tested, In Full Working Conditions

Keysight Agilent N5230A PNA-L Network Analyzer with up to 40 or 50 GHz



Description of  N5230A PNA-L Network Analyzer

  • Integrated 2/4-port, balanced measurements
  • 103 dB dynamic range and < 0.004 dB trace noise
  • 4.5 usec/point measurement speed, 32 channels, 16,001 points
  • Automatic port extension automatically corrects for in-fixture measurements
  • Optional second internal source for fast measurements of amplifier intermodulation distortion and mixer/converter conversion loss
List of Options



010



TIME DOMAIN FOR 13.5 20 40 & 50GHZ PNA-L



014



Configurable Test Set



020



300 KHz- 6 GHz 2 Port Standard Test Set



025



300 KHz - 6 GHz 2 Port Configurable Test Set with extended power range



080



Frequency Offset Mode



082



SCALAR CALIBRATED CONVERTER MEASUREMENT



120



300 KHz- 13.5 GHz 2 Port Standard Test Set



125



300 KHz - 13.5 GHz 2 Port Configurable Test Set with extended power range



140



300 kHz to 13.5 GHz 4-port standard test set



145



300 kHz to 13.5 GHz 4-port configurable test set and extended power range



146



300 kHz to 13.5 GHz 4-port configurable test set, extended power range and internal second source



1A7



ISO 17025 Compliant Calibration



1CM



Rackmount Kit



1CP



Rackmount and Handle Kit



1E1



Source Attenuators



220



10 MHz - 20 GHz 2 Port Standard Test Set



225



10 MHz - 20 GHz 2 Port Configurable Test Set with extended power range



240



300 KHz- 20 GHz 4 Port Standard Test Set



245



300 KHz - 20 GHz 4 Port Configurable Test Set with extended power range



246



300 kHz to 20 GHz 4-port configurable test set, extended power range and internal second source(Option 080 recommended)



420



10 MHz - 40 GHz 2 Port Standard Test Set



425



10 MHz - 40 GHz 2 Port Configurable Test Set with extended power range



520



10 MHz - 50 GHz 2 Port Standard Test Set



525



10 MHz - 50 GHz 2 Port Configurable Test Set with extended power range



551



Adds N-port calibrated measurements



A6J



ANSI Z540 compliant calibration with test data



AB1



Korea Quick Users Guide (Korean localization)



AB2



China Quick Users Guide (Chinese localization)



ABA



U.S. Quick Users Guide (English localization)



ABD



Germany Quick Users Guide (German localization)



ABE



Spain Quick Users Guide (Spanish localization)



ABF



France Quick Users Guide (French localization)



ABJ



Japan Quick Users Guide (Japanese localization)



ABZ



Italy Quick Users Guide (Italian localization)



F20



20 GHz Frequency Range



H08



Pulsed-RF measurement capability



H11



IF Access (for antenna,point in pulse,pulse profile and broadband MM wave measurements.)



N4688A



USB CD R/W drive, an external read/write CD drive with a USB cable



N4689A



USB Hub for connecting additional USB peripherals to PNA network analyzer



N52300-550



4 Port Measurement Application S/W



N52300-551



N-port capabilites 40 GHz or 50 GHz model



N52310-551



N-Port capabilities for 6,13.5,20 GHz models



P02



2 Ports



P04



4 Ports



R-52A-002-L



Lifetime Calibration License (Z540/17025)



S02



2nd Source Installed



UK6



Commercial calibration with test results data


Our Service:



One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.





FAQ:



1.Can you ship order to Canada or Australia ?

    Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

    We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

    100% T/T payment before shipment.

4. How can I ask any other question ?

    You can contact us online or leave us messages below.

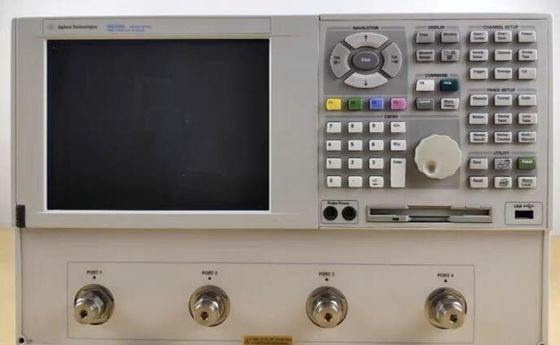

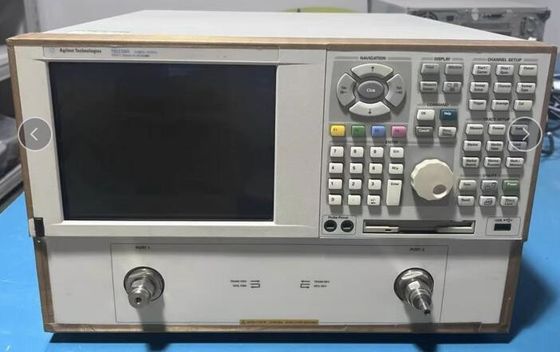

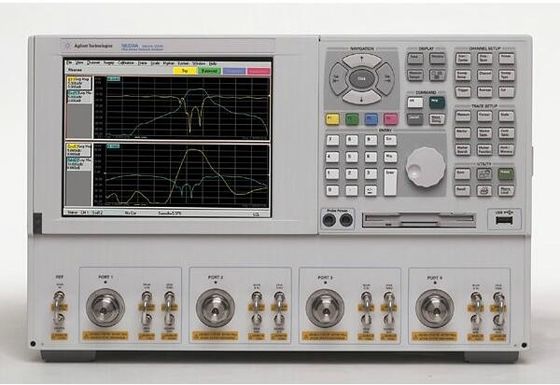

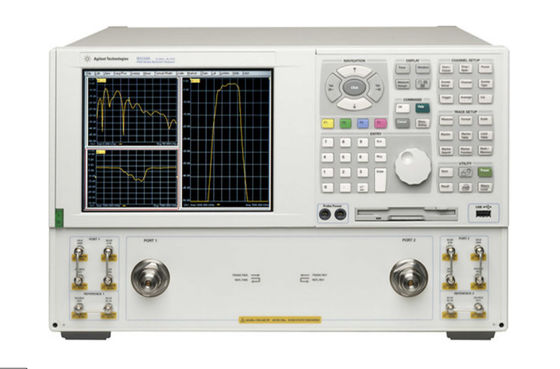

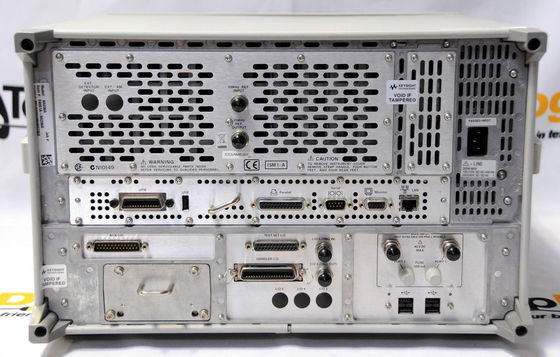

Multipurpose N5230A PNA-L Network Analyzer with up to 6  13.5  20  40 or 50 GHz 0

Multipurpose N5230A PNA-L Network Analyzer with up to 6  13.5  20  40 or 50 GHz 1Multipurpose N5230A PNA-L Network Analyzer with up to 6  13.5  20  40 or 50 GHz 2





Multipurpose N5230A PNA-L Network Analyzer with up to 6  13.5  20  40 or 50 GHz 3Multipurpose N5230A PNA-L Network Analyzer with up to 6  13.5  20  40 or 50 GHz 4
