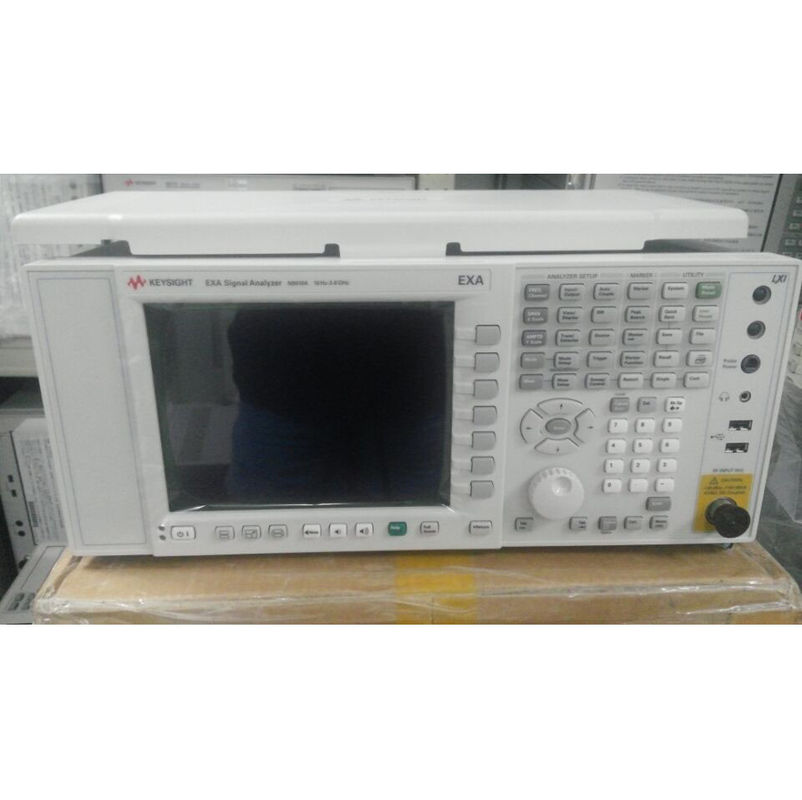

Keysight Agilent N9010A EXA Signal Analyzer With10 Hz to 44 GHz
| Brand Name: | Keysight Agilent |
| Model Number: | N9010A |
| MOQ: | 1 set |
| Price: | Negotiation |
| Delivery Time: | 1~3 Working Days |
| Payment Terms: | T/T, Western Union |
Detail Information
Place of Origin:
USA
Product Name:
EXA Signal Analyzer
Frequency:
10 Hz To 44 GHz
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
Packaging Details:
carton
Supply Ability:
in stock
Highlight:
EXA Signal Analyzer
,44 GHz Signal Analyzer
,Keysight Agilent Signal Analyzer
Product Description
Keysight Agilent N9010A EXA Signal Analyzer 10 Hz to 44 GHz
Description of N9010A EXA Signal Analyzer
The EXA Series is an economy signal analyzer that provides spectral and vector signal analysis for frequencies up to 26.5 GHz, is up to 300% faster than other analyzers, and has 10 MHz analysis bandwidth standard and 25 MHz optional.
Key Specifications Frequency
- Four frequency range options are available to choose from. 9 KHz to 3.6 GHz , 7.0 GHz, 13.6 GHz, or 26.5 GHz (frequency range can not be upgraded)
- Measure test signals that occur in the cellular and ISM frequency bands
Speed and Performance
- Up to 300% faster than other economy spectrum and signal analyzers
- 4 mS marker peak search
- 75 mS measurement/mode switching speed
- 11.4 mS remote sweep and transfer (GPIB)
- 14 mS W-CDMA ACP (sigma = 0.2 dB)
- 0.27 dB absolute amplitude accuracy
- 73 dB W-CDMA ACLR dynamic range (with noise correction on)
- +13 dBm third order intercept (TOI)
- -146 dBm/Hz displayed average noise level (DANL)
Measurement Application Software
- Spectrum analysis, Mobile WiMAX™, W-CDMA, HSDPA/HSUPA and phase noise measurement applications
- Run the world’s leading signal analysis software inside the EXA - the 89601A VSA software
- MATLAB® data analysis software for general purpose data analysis, visualization, and measurement automation.
Features
- 25 MHz analysis bandwidth (optional)
- Internal preamplifier and more (see options list)
- Modern connectivity: LXI-C certified, USB, 100based-T LAN, and GPIB
- Most advanced user interface in an analyzer / Open Windows® XP operating system
List of Options
| 1A7 | ISO 17025 compliant calibration |
| 1CM | Rack mount kit |
| 1CN | Front handle kit |
| 1CP | Rackmount and handle kit |
| 1CR | Rack slide kit |
| 205 | Sub 70205A Display for 70004A |
| 503 | Frequency range, 9 kHz to 3.6 GHz |
| 507 | Frequency range, 9 kHz to 7 GHz |
| 513 | Frequency range, 9 kHz to 13.6 GHz |
| 526 | Frequency range, 9 kHz to 26.5 GHz |
| 532 | Frequency range, 10Hz to 32 GHz |
| 544 | Frequency range, 10Hz to 44 GHz |
| 89601XFP-205 | VSA Measurement App Lite |
| 89601XFP-333 | VSA Hardware Connectivity |
| 89601XFP-AYA | VSA Digital Demodulation |
| A6J | ANSI Z540 compliant calibration |
| AKT | Getting Started Guide EXA Russian Localization |
| AMG | Calibration + Uncertainties + Guardbanding (Accredited) |
| AYA | Vector Modulation Analysis |
| B25 | Analysis bandwidth, 25 MHz |
| B40 | Analysis bandwidth, 40 MHz |
| BAG | Accessory Pouch |
| CPU | Instrument security, additional CPU & HDD |
| CR3 | Connector, Wideband IF output |
| CRP | Connector,programable rear IF output |
| DP2 | DP2 - Digital Processor, 2 GB Capture Memory |
| DVR | DVD-ROM/CD-R/RW Drive |
| EA3 | Electronic attenuator, 3.6GHz |
| EDP | Enhanced display package |
| EFM | USB storage device, 4GB, blank |
| EMC | Basic EMC Functionality |
| EP3 | Enhanced phase noise |
| EP5 | |
| ESC | External source control |
| EXM | External Mixing |
| FP2 | Fast power, up to 40 MHz bandwidth |
| FS1 | Fast Sweep Capability |
| FSA | Fine resolution step attenuator |
| HDD | Additional Removable Hard Drive |
| HTC | Hard transit case |
| IDE | Fujitsu MHV2040AH |
| KB2 | US 65 Key USB Keyboard |
| KYB | Keyboard, USB |
| MLP | Minimum loss pad, 50 to 75 ohm |
| MPB | Microwave preselector bypass |
| MSE | Mouse, USB interface |
| N6141A | EMI measurement application |
| N6141A-2FP | EMI measurement application, fixed perpetual license |
| N6141A-2TP | EMI measurement application, transportable perpetual license |
| N6149A | IDEN/WIDEN/MotoTalk measurement application |
| N6149A-2FP | IDEN, WIDEN, Moto Talk Measurement application, fixed perpetual license |
| N6149A-2TP | IDEN/WIDEN/MotoTalk measurement application, transportable, perpetual license |
| N6152A | Digital Cable TV measurement application. |
| N6152A-2FP | DVB-C (J.83 Annex A/C) measurement application, fixed perpetual license |
| N6152A-2TP | DVB-C (J.83 Annex A/C) measurement application, transportable perpetual license |
| N6152A-3FP | J.83 Annex B measurement application, fixed perpetual license |
| N6152A-3TP | J.83 Annex B measurement application, transportable perpetual license |
| N6152A-MEU | Minor enhancement update, fixed perpetual license |
| N6153A | DVB-T/H Measurement application |
| N6153A-2FP | DVB-T/H Measurement application, fixed perpetual license |
| N6153A-2TP | DVB-T/H Measurement application, transportable perpetual license |
| N6153A-3FP | DVB-T2 measurement application, fixed perpetual license |
| N6153A-3TP | DVB-T2 measurement application, transportable perpetual license |
| N6153EMOD-1FL | Standard-based, one-button DVB-T/H, DVB-T2/T2-Lite measurements |
| N6155A | ISDB-T Measurement Application |
| N6155A-2FP | ISDB-T Measurement Application,fixed perpetual license |
| N6155A-2TP | ISDB-T Measurement Application, transportable perpetual license |
| N6155A-3FP | ISDB-Tmm, Measurement Application, fixed perpetual license |
| N6155A-3TP | ISDB-Tmm, Measurement Application, transportable perpetual license |
| N6156A | DTMB Measurement application |
| N6156A-2FP | DTMB Measurement application, fixed perpetual license |
| N6156A-2TP | DTMB Measurement application, transportable perpetual license |
| N6158A | CMMB Measurement Application |
| N6158A-2FP | CMMB Measurement Application,fixed perpetual license |
| N6158A-2TP | CMMB Measurement Application, transportable perpetual license |
| N6171A | MATLAB Software |
| N6171A-M01 | MATLAB-Basic Package, individual license - node-locked |
| N6171A-M02 | MATLAB-Standard Package, individual license - node-locked |
| N6171A-M03 | MATLAB-Advanced Package, individual license - node-locked |
| N9051A | Pulse Measurement Software |
| N9051A-2FP | Pulse measurement software, fixed perpetual, license |
| N9051A-2TP | Pulse measurement software, fixed, transportable perpetual license |
| N9051A-3FP | Phase and frequency measurements, fixed perpetual license |
| N9051A-3TP | Phase and Frequency Measurements, transportable perpetual license |
| N9051A-4FP | Extended analysis and statistics, fixed perpetual license |
| N9051A-4TP | Extended Analysis and Statistics, transportable perpetual license |
| N9060A-2FP | Spectrum Analyzer Measurement Application |
| N9060A-3FP | Amplitude correction and limit lines |
| N9060A-4FP | TOI and harmonics |
| N9060A-5FP | ACP 18 Carrier |
| N9060A-6FP | TV Trigger and IQ Analyzer |
| N9060A-7FP | Zero Span, Register, Trace |
| N9060B-2FP | Spectrum Analyzer Measurement Application |
| N9061A | Remote language compatibility measurement application |
| N9061A-1FP | Remote language compatibility, 8566/68, fixed perpetual license |
| N9061A-2FP | Remote language compatibility, 856xE/EC, fixed perpetual license |
| N9062A | SCPI language compatibility measurement application |
| N9062A-2FP | SCPI language compatibility, RS |
| N9063A | Analog Demodulation Measurement Application |
| N9063A-2FP | Analog Demodultaion Mesurement Apps |
| N9063A-2TP | Analog demodulation measurement application, transportable perpetual license |
| N9063A-3FP | FM stereo measurement application, fixed perpetual license |
| N9063A-3TP | FM stereo measurement applications, transportable perpetual liense |
| N9064A | VXA Vector Signal Analysis Measurement Application |
| N9064A-1FP | Vector signal analysis measurement application, fixed perpetual license |
| N9064A-1TP | Vector signal analysis (required) measurement application, transportable license |
| N9064A-2FP | Flexible digital modulation analysis measurement application, fixed perpetual license |
| N9064A-2TP | Flexible digital modulation analysis measurement application, transportable license |
| N9064A-MEU | Minor enhancement update |
| N9065B | Sequence analyzer measurement application |
| N9068A | Phase Noise Measurement Application |
| N9068A-2FP | Phase Noise Measurement Application |
| N9068A-2TP | Phase Noise Measurement application, transportable perpetual license |
| N9068A-MEU | Minor enhancement update |
| N9069A | Noise Figure Measurement Application |
| N9069A-1FP | Noise Figure Measurement Apps |
| N9069A-1TP | Noise figure measurement application, transportable perpetual license |
| N9069A-2FP | Noise figure measurement application advanced features, fixed perpetual license |
| N9069A-2TP | Noise figure measurement application advanced features, transportable perpetual license |
| N9069A-MEU | Minor enhancement update |
| N9071A | GSM/EDGE/Evo Measurement Application |
| N9071A-2FP | GSM/EDGE measurement application, fixed perpetual, license |
| N9071A-2TP | GSM/EDGE measurement application, transportable perpetual, license |
| N9071A-3FP | EDGE Evo measurement application, fixed perpetual license |
| N9071A-3TP | EDGE Evo measurement application, transportable perpetual license |
| N9071A-MEU | Minor enhancement update |
| N9071A-XFP | Single acquisition combined GSM/EDGE measurement application, fixed perpetual license |
| N9071A-XTP | GSM/EDGE combined measurement application, transportable perpetual, license |
| N9072A | CDMA2000 Measurement Application |
| N9072A-2FP | CDMA2000 measurement application, fixed perpetual license |
| N9072A-2TP | CDMA2000 measurement application, transportable perpetual license |
| N9073A | W-CDMA/HSPA+ Measurement Application |
| N9073A-1FP | W-CDMA Measurement application, fixed perpetual license |
| N9073A-1TP | W-CDMA measurement application, fixed transportable perpetual license |
| N9073A-2FP | HSDPA/HSUPA measurement application, fixed perpetual license |
| N9073A-2TP | HSDPA/HSUPA measurement application, transportable perpetual license |
| N9073A-3FP | HSPA+ Measurement Application, fixed perpetual license |
| N9073A-3TP | HSPA+ measurement application, transportable perpetual license |
| N9073A-MEU | Minor enhancement update |
| N9073A-XFP | Single acquisition combined W-CDMA measurement application, fixed perpetual license |
| N9073A-XTP | Single acquisition combined W-CDMA measurement application, transportable perpetual license |
| N9074A | Fixed WiMAX Single Acquisition Combined Measurement Application |
| N9074A-XFP | Single acquisition combined WiMAX measurement application, fixed perpetual, license |
| N9074A-XTP | Single acquisition combined WiMAX measurement application, fixed perpetual license |
| N9075A | Mobile WiMAX Measurement Application |
| N9075A-2FP | 802.16 OFDMA Measurement Application |
| N9075A-2TP | Mobile WiMAX measurement application, transportable perpetual, license |
| N9076A | 1xEV-DO Measurement Application |
| N9076A-1FP | 1xEV-DO measurement application, fixed perpetual license |
| N9076A-1TP | xEV-DO measurement application, transportable perpetual license |
| N9077A | WLAN 802.11a/b/g/n/ac Measurement Application |
| N9077A-2FP | WLAN 802.11a/b/g measurement application, fixed perpetual license |
| N9077A-2TP | WLAN 802.11a/b/g measurement application, transportable perpetual license |
| N9077A-3FP | WLAN 802.11n measurement application, fixed perpetual license |
| N9077A-3TP | WLAN 802.11n, measurement application, transportable perpetual license |
| N9077A-4FP | WLAN 802.11ac measurement application, fixed perpetual license |
| N9077A-4TP | WLAN 802.11ac measurement application, transportable perpetual license |
| N9077A-5FP | WLAN 802.11 list sequence measurement application, fixed perpetual license |
| N9077A-5TP | WLAN 802.11 list sequence measurement application, transportable perpetual license |
| N9079A | TD-SCDMA/HSPA Measurement Application |
| N9079A-1FP | TD-SCDMA measurement application, fixed perpetual license |
| N9079A-1TP | TD-SCDMA measurement application, transportable perpetual license |
| N9079A-2FP | HSPA measurement application, fixed perpetual license |
| N9079A-2TP | HSPA measurement application, transportable perpetual license |
| N9079A-MEU | Minor enhancement update |
| N9080A | LTE FDD Measurement Application |
| N9080A-1FP | LTE FDD measurement application, fixed perpetual license |
| N9080A-1TP | LTE FDD measurement application, transportable perpetual license |
| N9080B | LTE/LTE-Advanced FDD measurement application |
| N9080B-1F1 | LTE FDD measurement application, fixed timebased licenses, 1 month |
| N9080B-1FP | LTE FDD measurement application, fixed perpetual license |
| N9080B-1TP | LTE FDD measurement application, transportable perpetual license |
| N9080B-2F1 | LTE-Advanced FDD measurement application, fixed timebased licenses, 1 month |
| N9080B-2FP | LTE-Advanced FDD measurement application, fixed perpetual license |
| N9080B-2TP | LTE-Advanced FDD measurement application, transportable perpetual license |
| N9081A | Bluetooth Measurement Application |
| N9081A-2FP | Bluetooth Measurement Application, fixed perpetual license |
| N9081A-2TP | Bluetooth measurement application, transportable perpetual license |
| N9081A-MEU | Minor enhancement update |
| N9082A | LTE TDD Measurement Application |
| N9082A-1FP | LTE TDD measurement application, fixed perpetual license |
| N9082A-1TP | LTE TDD measurement application, transportable perpetual license |
| N9082B | LTE/LTE-Advanced TDD measurement application |
| N9082B-1F1 | LTE TDD measurement application, fixed timebased Licenses, 1 month |
| N9082B-1FP | LTE TDD measurement application, fixed perpetual license |
| N9082B-1TP | LTE TDD measurement application, transportable perpetual license |
| N9082B-2F1 | LTE-Advanced TDD measurement application, fixed timebased licenses, 1 month |
| N9082B-2FP | LTE-Advanced TDD measurement application, fixed perpetual license |
| N9082B-2TP | LTE-Advanced TDD measurement application, transportable perpetual license |
| N9083A | Multi-Standard Radio (MSR) Measurement Application |
| N9083A-1FP | Multi-Standard Radio, MSR, measurement application, fixed perpetual license |
| N9083A-1TP | Multi-Standard Radio, MSR, measurement application, transportable perpetual license |
| NFE | Noise floor extension |
| P03 | 100 kHz to 3.6 GHz |
| P07 | 100 kHz to 7 GHz |
| P13 | 100 kHz to 13.6 GHz |
| P26 | 100 kHz to 26.5 GHz |
| P32 | 100 kHz to 32 GHz |
| P44 | 100 kHz to 44 GHz |
| PC1 | Intel Pentium 1600Mhz |
| PC2 | Dual core processor with removable solid state drive |
| PC3 | Intel/Celeron M CPU 440@1.86Ghz |
| PC4 | Dual core high performance processor, 8GB RAM, removable SSD |
| PC5 | Intel/Celeron P4505@1.87Ghz 4GB |
| PC7 | Intel(R) Celeron(R) CPU 1020E @ 2.2Ghz, 8 GB |
| PCP | Processor Promotion, Price offset for PC4 - Dual core high performance processor |
| PFR | Precision frequency reference |
| PRC | Portable configuration |
| RTL | Real Time Link |
| SF2 | Security features, prohibit saving results |
| SSD | Additional removable solid state drive |
| TDS | Time Domain Scan - requires N6141A and MPB or DP2 or B40 |
| UK6 | Commercial calibration test data |
| W7X | Operating system, Windows Embedded Standard 7 |
| WXP | Operating system, Windows XP |
| YAS | Y-axis ouptut |
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
