N5264A PNA-X Measurement Receiver for Antenna Test RF Network Analyzer

N5264A PNA-X Measurement Receiver for Antenna Test RF Network Analyzer

  • N5264A PNA-X Measurement Receiver for Antenna Test RF Network Analyzer
  • N5264A PNA-X Measurement Receiver for Antenna Test RF Network Analyzer
  • N5264A PNA-X Measurement Receiver for Antenna Test RF Network Analyzer
N5264A PNA-X Measurement Receiver for Antenna Test RF Network Analyzer
Product Details:
Place of Origin: USA
Brand Name: Keysight Agilent
Model Number: N5264A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T, Western Union
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: ENA RF Network Analyzer Type: Vector Network Analyzer (VNA)
Condition: Pre-Owned Functions: Tested, In Full Working Conditions

N5264A PNA-X Measurement Receiver for Antenna Test RF Network Analyzer

Description of  Keysight Agilent N5264A PNA-X Measurement Receiver

N5264A is an extremely fast microwave receiver, designed for antenna test, near field, far field and RCS measurements. N5264A replaces the 8530A. Combine it with MXG, 85039, 85320, and 85331 to test RF subsystems.

Overview and Features of N5264A PNA-X Measurement Receiver



  • A new industry standard for antenna test with 400,000 point per second data acquisition on all five measurement channels
  • Twice as many receivers available compared to any other antenna receiver on the market
  • Replace existing 8530A and 8360 solutions for a system speed improvement that is 10 times faster
  • Built-in 8510/8530A code emulation software provides a drop-in replacement for existing antenna ranges utilizing an 8530A

Required Service Test Equipment
EquipmentCritical SpecificationsRecommended
Model or Part
Number
Alternate
Model or Part
Number
Use
Test Instruments and Software
Frequency counterFreq: 10 MHz to 10.5 GHz
Accuracy : ±0.5 ppm
53151A
Opt 001
NoneP, A, T
Spectrum analyzerMin Freq: 1 MHz
Max Freq: > 4 GHz
Resolution BW: 300 Hz
8565E856xEA, T
Signal generatorCW Freq: 1.185 GHzN5181A,
Option 503
E8257D,
Option 520
P, A, T
Power meterAccuracy: ±0.0068 dBN1913A/14AE4418A/B,
E4419A/Bb
P, A, T
Power sensorFreq: 300 kHz to 3.0 GHz
Range: –30 to +20 dBm
N8482A8482AP, A, T
Power sensorFreq: 3.0 GHz to 26.5 GHz
Range: –30 to +20 dBm
N8485AU8485AP, A, T
Dynamic accuracy
test set
None specifiedU3020AD01NoneP
Digital multi-meterVoltage and resistance
measurement capability
Voltage resolution: 10 mV
AnyAnyT
PrinterN/AAny printer with Microsoft Windows XP or Windows 7 driverP


FAQ:
1.Can you ship order to Canada or Australia ?
    Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
    We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
    100% T/T payment before shipment.
4. How can I ask any other question ?
    You can contact us online or leave us messages below .

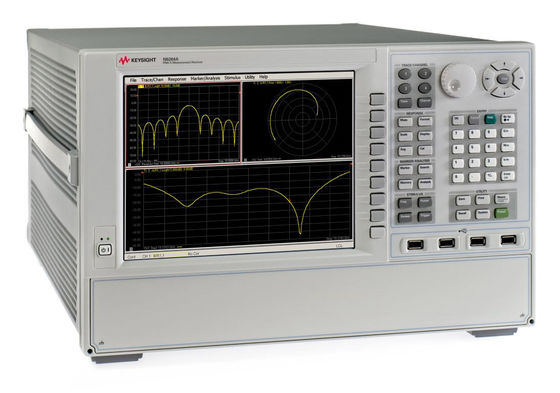

N5264A PNA-X Measurement Receiver for Antenna Test RF Network Analyzer 0

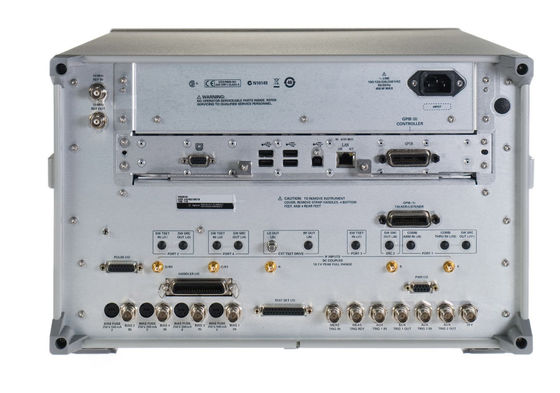

N5264A PNA-X Measurement Receiver for Antenna Test RF Network Analyzer 1

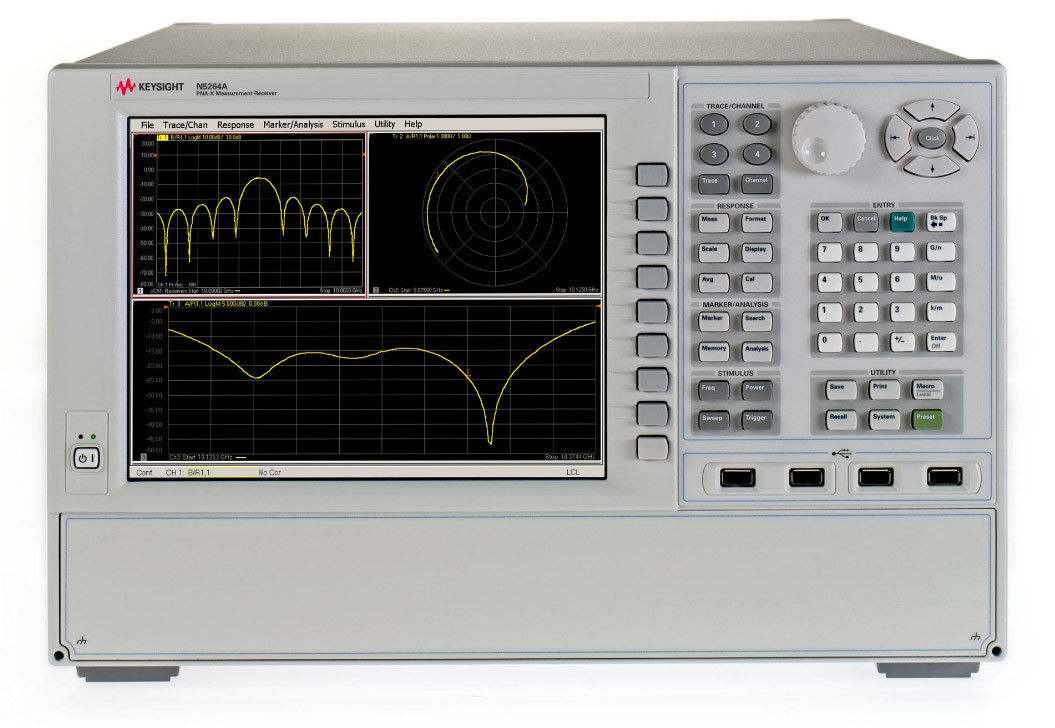

N5264A PNA-X Measurement Receiver for Antenna Test RF Network Analyzer 2
