Durable Plug In RF Power Meter Keysight Agilent E4416A EPM P Series

Durable Plug In RF Power Meter Keysight Agilent E4416A EPM P Series

  • Durable Plug In RF Power Meter Keysight Agilent E4416A EPM P Series
  • Durable Plug In RF Power Meter Keysight Agilent E4416A EPM P Series
  • Durable Plug In RF Power Meter Keysight Agilent E4416A EPM P Series
Durable Plug In RF Power Meter Keysight Agilent E4416A EPM P Series
Product Details:
Place of Origin: Malaysia
Brand Name: Agilent
Certification: FCC
Model Number: E4416A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: EPM-P Series Single Channel Power Meter Form Factor: Plug-In
Video Bandwidth: 400 MHz Measurement Frequency Range: 200 (400)MHz To 4 GHz
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Durable RF Power Meter

,

Plug In RF Power Meter

,

E4416A EPM Power Meter

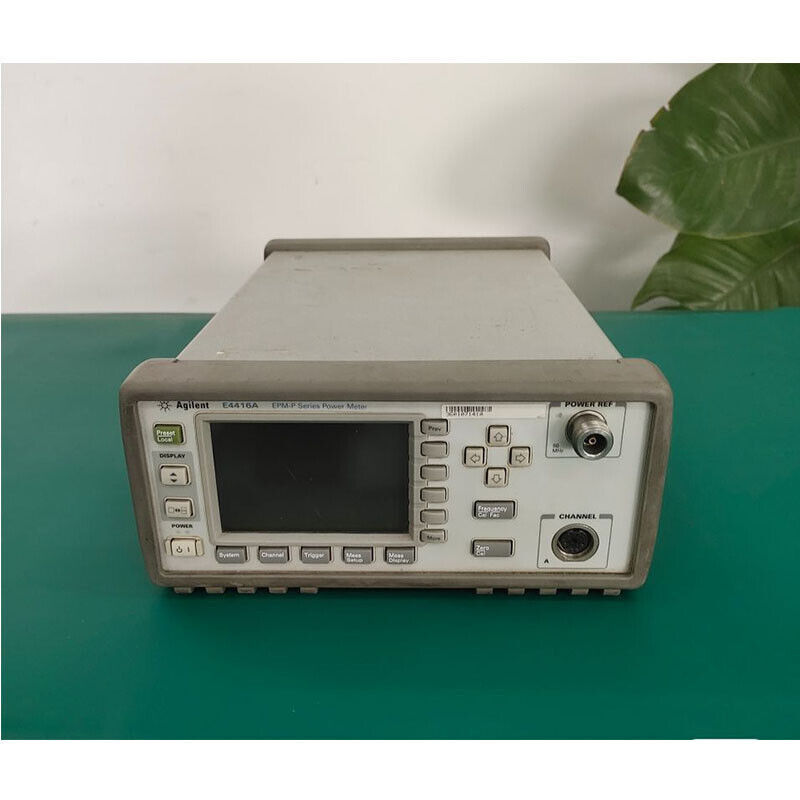

Keysight Agilent E4416A EPM-P Series Single Channel Power Meter



Description of E4416A Power Meter



The E4416A single channel EPM-P series power meter, for peak, average, peak-to-average ratio and time-gated measurements, using the E9320 peak and average power sensors.


  • 20 Msample/s per second sampling rate for reliable continuous and single shot measurements on wide bandwidth signals
  • Time-gated and free run power measurements
  • Free ''Analyzer Software'' software for complete pulse and statistical analysis, software is located ''In the Library''
  • 8 pre-defined wireless configurations (GSM, EDGE, NADC, iDEN, Bluetooth™, IS-95 CDMA, W-CDMA and cdma2000)

1xEV-DO wireless systems — simplify development, verification, and manufacturing with the EPM-P power meters and E9320 E-Series power sensors Measurement Tip

Features:

  • 20 Msample/s per second sampling rate for reliable continuous and single shot measurements on wide bandwidth signals
  • Time-gated and free run power measurements
  • Free ´Analyzer Software´ software for complete pulse and statistical analysis, software is located ´In the Library´
  • 8 pre-defined wireless configurations (GSM, EDGE, NADC, iDEN, Bluetooth™, IS-95 CDMA, W-CDMA and cdma2000)



List of options
001 Front panel input sensor and reference calibration connector
002 Parallel rear panel sensor input connector and front panel reference calibrator connector
003 Parallel rear panel sensor input connector and rear panel reference calibrator connector
004 Delete power sensor cable
005 Include power sensor cable, E9288A length 5-ft (1.5m)
0B0 Do not include manuals
0BK English language manual set (hardcopy Users Guide and Programming Guide)
1A7 Certificate of compliance calibration - ISO 17025 with test data, printed
34131A Transit case for half-rack 2U high instruments (e.g., 34401A)
34141A Yellow soft carry/operating case
34161A Accessory pouch for 34401A, 33120/250A, 34970A, 53131A, etc.
908 One-instrument rackmount kit
909 Front Handle & Rack Flange Kit
A6J Certificate of compliance calibration - ANSI Z540 with test data, printed
AB1 Korea Quick Users Guide (Korean localization)
AB2 China Quick Users Guide (Chinese localization)
ABA U.S. Quick Users Guide (English localization)
ABD Germany Quick Users Guide (German localization)
ABE Spain Quick Users Guide (Spanish localization)
ABF France Quick Users Guide (French localization)
ABJ Japan Quick Users Guide (Japanese localization)
ABZ Italy Quick Users Guide (Italian localization)
E20 Bundled With Transit Case And E9322A Sensor
E9288A Sensor Cable 1.5m/5ft (E9288A)
E9288B Sensor Cable 3m/10ft (E9288B)
E9288C Sensor Cable 10m/31ft (E9288C)
J16 Special Line Cord
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-016-3 ISO 17025 Compliant Calibration - 3 years
R-50C-016-5 ISO 17025 Compliant Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C Return to Agilent Warranty - 3 years
R-51B-001-5C Return to Agilent Warranty - 5 years
R-51B-001-C Return to Agilent Warranty - 1 year
RMKT Agilent Refurbished Product (Do Not Use - Certiprime Option)
UK6 Commercial calibration with test results data





Durable Plug In RF Power Meter Keysight Agilent E4416A EPM P Series 0Durable Plug In RF Power Meter Keysight Agilent E4416A EPM P Series 1Durable Plug In RF Power Meter Keysight Agilent E4416A EPM P Series 2







FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
