Fluke 5101B Voltage Current Calibrator , Multipurpose Power Meter Frequency

Fluke 5101B Voltage Current Calibrator , Multipurpose Power Meter Frequency

  • Fluke 5101B Voltage Current Calibrator , Multipurpose Power Meter Frequency
  • Fluke 5101B Voltage Current Calibrator , Multipurpose Power Meter Frequency
  • Fluke 5101B Voltage Current Calibrator , Multipurpose Power Meter Frequency
Fluke 5101B Voltage Current Calibrator , Multipurpose Power Meter Frequency
Product Details:
Place of Origin: USA
Brand Name: Fluke
Certification: FCC
Model Number: 5101B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Multi Product Calibrator Amplitude Signals: Up To 600 MHz
Repair Support: Calibration Only Calibration Support: Contact Us
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Fluke Voltage Current Calibrator

,

5101B Voltage Current Calibrator

,

Multipurpose Power Meter Frequency

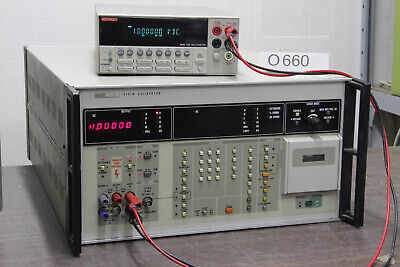

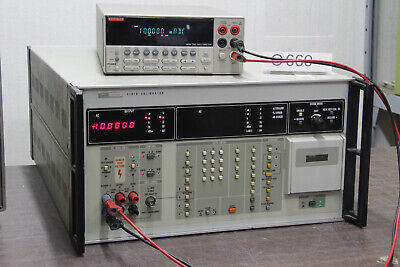

Fluke 5101B High Performance Multi-product Calibrator

Description of Fluke 5101B Multi Product Calibrator

The 5101B is a Multifunction Calibrator from Fluke. Engineers may need a sound level calibrator, radio frequency calibrator, power-meter calibrator, voltage-current calibrator, or another type for electronic test equipment calibration. Electronic calibrations are necessary for maintaining your equipment for general monitoring and testing purposes. Calibrators enable you to solve problems with your equipment on your own, on site.





Additional Features:

  • DCV and ACV ranges are 20 mV-1100 V
  • Cassette tape back-up to allow the operator to save and recall complex or highly used calibration procedures
  • Guarded output and 4-wire sensing
  • Simple editing of output
  • Digital display of output/function
  • %error display

The Fluke 5101B, Multifunction Calibrator, has the reputation of being an industry standard for calibration labs and a very cost effective way of performing meter calibrations to 4 1/2-digits. The Fluke 5101B Provides five functions including direct or alternating volts or amps plus ohms.

Easy to use- simply enter the value and the function using the front-panel keyboard and set to operate mode.



Fluke 5101B AC/DC Calibrator calibrates precision meters that measure AC or DC Voltage (0-1100V), AC or DC current (200 uA-2A), and Resistance (1 ohm to 10 Mohms). Accuracies are: DC voltage and resistance (0.005%), DC current (0.025%) AC Volts (0.05%) and AC current (0.07%).



Features:

  • DC & AC Volts: 20 mV to 1100 V full scale (0.1 MicroV resolution)
  • 50 Hz to 50 kHz frequency of standard unit
  • DC & AC Current from 200 MicroA to 2A full scale
  • 1 Ohm to 10 MOhm resistance in decade steps
  • HP-IB and Bit serial interface
List of Options



Opt. 03: Wide band AC voltage.

Opt. 05: IEEE-488 interface.

Opt. 06: EIA RS-232 interface.



Turnaround Time
Standard order processing is 7-10 business days plus shipping method chosen. Rush and off-hours service is available for an additional fee. Please contact us via the Message System/Contact Seller.

Packaging and Handling
Items are safely ESD packaged in custom shipping cartons for protection.

Shipping

  • Quoted Flat Rate applies to items that can be shipped USPS Priority Mail, UPS Ground, or FedEx Ground. Items that must go by LTL Freight Carrier due to size or weight restrictions, buyer will be contacted to pay additional freight.
  • Next Day and Second Day Air service is available for an additional fee.
  • Next Day and Second Day Air service and all International Orders will be charged an appropriate rate.
  • We ship worldwide from China.
  • International Customers are responsible for all Customs fees, import taxes, VAT, and other fees applied by their respective countries.
  • Flat Rate Domestic Shipping will be USPS Priority Mail, UPS Ground, or FedEx Ground, at our discretion.
  • All shipments are fully insured.

Fluke 5101B Voltage Current Calibrator , Multipurpose Power Meter Frequency 0

Fluke 5101B Voltage Current Calibrator , Multipurpose Power Meter Frequency 0

Fluke 5101B Voltage Current Calibrator , Multipurpose Power Meter Frequency 2
